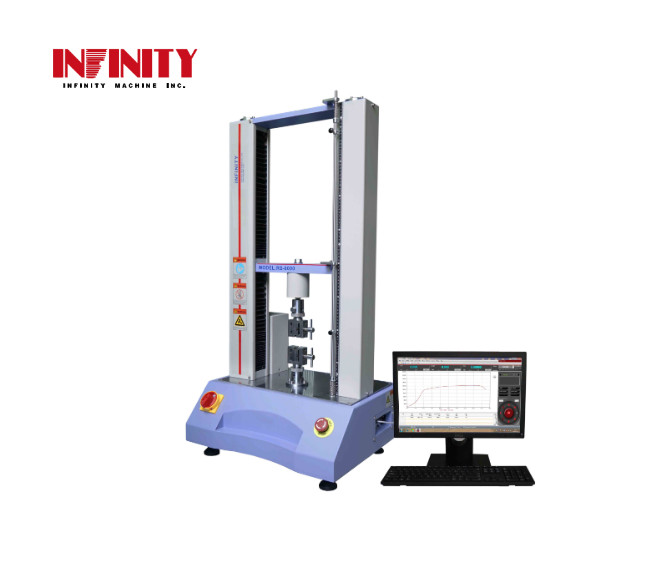

Desktop Universal Testing Machine Capacity 5KN ASTM / ISO Servo Control

Desktop Universal Testing Machine Capacity 5KN ASTM / ISO Servo Control

    • Desktop Universal Testing Machine Capacity 5KN ASTM / ISO Servo Control
  • Desktop Universal Testing Machine Capacity 5KN ASTM / ISO Servo Control

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-8000M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Capacity: 5KN Stroke: 800mm,1000mm (optional)
    Effective Width: 400mm Software: Software With Closed Loop Control
    Motor: AC Servo Motor Transmission Rod: High Accuracy Ball Screw
    Dimension: W550xD400xH1100mm Power Supply: AC220 5A Or Specified By User
    High Light:

    utm universal testing machine

    ,

    universal test equipment



    Desktop Universal Testing Machine Capacity 5KN ASTM / ISO Servo Control





    Model: RS-8000M



    Purpose:



    This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength etc for semi-product & finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile, etc., which are the basic facilities for input quality control(I.Q.C), Quality Control(Q.C.), Physical inspection, Mechanics research and material development.

    Meeting Standards: meeting the related ISO and ASTM standards.



    Specification:



     Model  RS-8000M
     Capacity (optional)  5KN
     Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
     Load resolution  1/500,000
     Load accuracy  ±0.25%
     Load range  Rangless
     Stroke (exclude the grips)  400mm
     Effective width  300mm
     Test speed  0.001~500mm/min
     Speed accuracy  ±0.5%
     Stroke resolution  0.001mm
     Software  Software with closed loop control
     Motor  AC servo Motor
     Tramsmission rod  High accuracy ball screw
     Main unit dimension (WxDxH)  W550xD400xH1100mm
     Main unit weight  About 85kg
     Power supply  AC220 5A or specified by user
