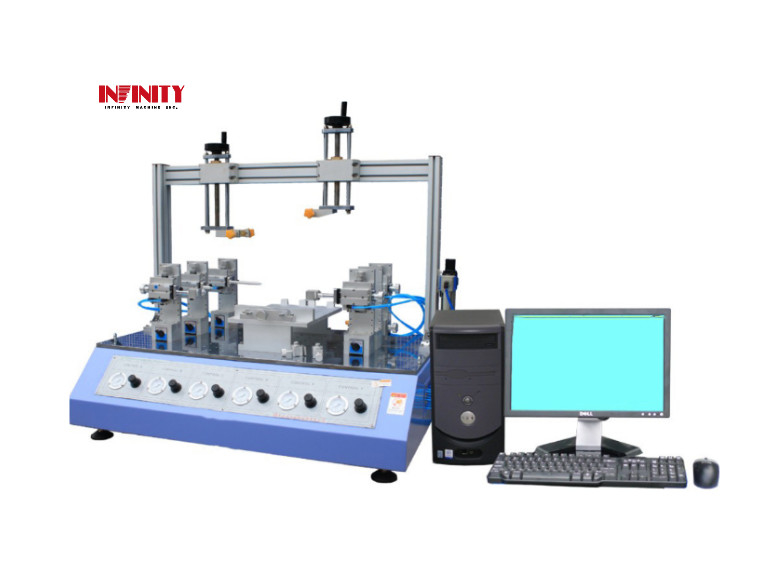

Simulation Operation Electronic Product Tester Durability Mitsubishi PLC

Simulation Operation Electronic Product Tester Durability Mitsubishi PLC

Simulation Operation Electronic Product Tester Durability Mitsubishi PLC

Product Details:

Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-6200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Pneumatic Cylinder With Simultaneous Control: 6 Sets Stroke Of Pneumatic Cylinder: 0~10mm Or Specified By User
The Size Of Testing Table: W1200xD800xH1150mm Weight: 155kg
Air Source: ≥0.6MPa Power Supply: AC220V 5A Or Specified By User



Simulation Operation Electronic Product Tester Durability Mitsubishi PLC



Model: RS-6200



Brief introduction of model:



This tester can simulate the all kinds of mankind operations on the Note-book, tabletop computers, the mobile phones, LCD monitors and so on, so that to know the durability of relevant parts after using many times. This tester is controlled and testing parameter setting by computer software, can modify and save the testing method and can control several operations in the same time.



Main tests:



1. Optical disc inserting and withdraw

2. (SD/MMC-MS/PRO) PCMCIA inserting and withdraw

3. Batteries inserting and withdraw

4. All kinds of keys pressing (clicking) durability testing ( includes on/off switch testing, the function keys on the control panels of notebook and so on)



Main Specialties:



Setting parameters by computer software:The time setting of handing out and return of pneumatic cylinder, the sorting and simultaneous testing, the sequence of the operation tests, the testing cycles. And can save or modify the testing methods, as well as transferring the testing methods records to use.



All the executing parts are imported from Japan: SMC pneumatic cylinder, electromagnetic valve or regulator, and Mitsubishi PLC.



Can adjust the location of pneumatic cylinder according to the testing needing. Using the design with magnet base which can be convenient to move, and adjust one four directions(forward, backward, upward and downward). That can meet most need for the durability testing of computer keys(buttons).



Specification:



 Model  RS-6200
 Pneumatic cylinder with simultaneous  control  6 Sets (Can be Independent working or simultaneous  working)
 Stroke of pneumatic cylinder  0~10mm or 0~15mm or specified by user
 Counting setting range  0~999,999 (can be set in this range)
 Pressing(Clicking) frequency  10~120times/min (Adjustable)
 The size of testing table  W1200xD800xH1150mm
 The force of pneumatic cylinder

 100~1000gf (Can be customized)

 Independent adjusting for 6 sets

 Weight  155kg
 Air source  ≥0.6MPa
 Power supply  AC220V 5A or Specified by user



Can choose touching screen control (RS-6200A):



Simulation Operation Electronic Product Tester Durability Mitsubishi PLC
