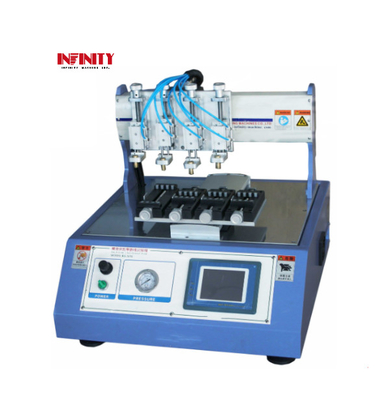

Mobile Phone Touch Panel Tester / Click Speed Tester 0.05 mm Accuracy

Mobile Phone Touch Panel Tester / Click Speed Tester 0.05 mm Accuracy

    • Mobile Phone Touch Panel Tester / Click Speed Tester 0.05 mm Accuracy
    • Mobile Phone Touch Panel Tester / Click Speed Tester 0.05 mm Accuracy
  • Mobile Phone Touch Panel Tester / Click Speed Tester 0.05 mm Accuracy

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-5610

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Controller: Touch Screen Control X Axis Movement Range: 0~150mm Or 0~300 (specified Before Order)
    Y Axis Movement Range: 0~150mm Or 0~300 (specified Before Order) Z-axis Click Cylinder: 0~20mm
    Positioning Accuracy: 0.05mm Dimension: 560x500x670mm
    Weight: About 120kg Power Source: AC220V 50Hz 5A Or Specified By User
    High Light:

    super click tester

    ,

    lcd screen tester



    Mobile Phone Touch Panel Tester / Click Speed Tester 0.05 mm Accuracy



    Model: RS-5610



    Purpose:



    This tester is used for pressing rolling, clicking, Drawing test for small LCD, touching screen, such as mobile phone.



    Test Item:



    Touching pen clicking test: 0-10N(or set).

    Touching pen drawing test: drawing line on touching screen as setting.;

    Mobile surface abrasion test: with alcohol / eraser as testing assistance.



    Specification:



     Model  RS-5610( Touching screen Control )
     X-axis Moving range  0~150mm or 0~300 (specified before order)
     Y-axis Moving range  0~150mm or 0~300 (specified before order)
     Z-axis click cylinder  0~20mm
     Positioning accuracy  0.05mm
     Moving speed  0~200mm/sec
     Pressure range  80~1500gf (or specified)
     Load  20g, 30g, 150g, 250g
     Air pressure  ≥0.5MPa
     Dimension (WxDxH)  560x500x670mm
     Weight  About 120kg
     Power supply  AC220V 50Hz 5A or specified by user
