    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-6900A-A2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Driving Method Of X-Y Axis: Servo Motor From Panasonic Transducer: 50N(5kgf)1000N(100kgf)
    Range Of Driving: 0~150mm Or Specified By User Test Range Of Displacement: 0~150mm
    Max Size Of Specimen: W300xD300mm Size Of Main Unit: W765xD895mmxH1250mm
    Weight: About 250kg Size With Table: W1400xD900xH1900mm



    Multi Function Keystroke Tester , Force Testing Machine Compression



    Model: RS-6900A-A2



    Application:



    This Keystroke Force Tester is controlled by X,Y,Z axes, it is suitable for the button force test, the compression for electronic products, the 3 points bending test, 4points bending test.



    Specialties:



    1. This machine is moved by X, Y, Z axes, X,Y are to move the testing platform, so that can realize the multi-points compression test for the buttons

        force test and the electronic products compression test; Z axis is connected to the transducer to apply the test force ,collect the test force and

        control the compression time.



    2. The system is controlled by computer professional software, can set the test force, test time, test cycles, and test speed, and can collect the test

        force ,test time, test speed to generate the test graph.



    3. X,Y,Z axes are driven by servo motor from Japanese Panasonic to drive; transmission by precise ballscrew which can achieve the low noise and

       long durability.



    4. This machine is equipped with a controlled box, the operator can also use the box for the tester setting.



    5. This machine is table top type, a special table as the accessory.



    6. Chinese or English interface can be optional . The unit (N,Lb,gf,kgf) can be switched freely .



    7. The testing method can be set, saved and called for use from the saving record . The data and curve can be printed directly



    8. The life damping curve can be created, the test report can be converted to Excel and PDF file format.



    Typical Application:



    1. The Multi-points compression

    2. Button force testing

    3. The 3pts and 4pts bending test



    The standard accessories of the machine:



    1. Compression pads( according to custom requirement)

    2. 3Points bending fixture

    3. 4Poionts bending fixture

    4. Computer (DELL)installed with WIN 7 system, and professional test software.

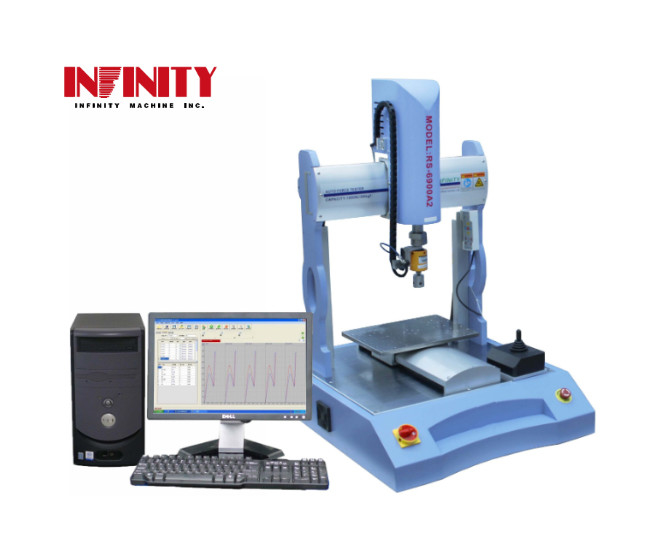

    5. Table as shown in the machine picture.

    6. Hand control box.

    7. Tools( screw drivers)



    Technical parameters:



     Model  RS-6900A-A
     Driving method of Z axis  Servo motor of Japanese Panasonic
     Transducer  50N(5kgf)1000N(100kgf)

     Range of driving (up and down)

     0~150mm
     Test range of load  0~50N(5kgf)or 0~1000N(100kgf)
     Resolution of load  0.01N
     Accuracy of load  ±0.5%F.S
     Test range of displacement  0~150mm
     Resolution of displacement  0.001mm
     Accuracy of displacement  ±0.03mm
     Range of test speed  0.1~150mm/min
     Driving method of X-Y axis  Servo motor from Panasonic
     Control way  X:(right and left) Y:(forward and backward)
     Driving range  X:0~300mm Y:0~300mm
     Resolution of displacement  0.002mm
     Accuracy of displacement  ±0.05mm
     Range of moving speed  5~200mm/sec
     Max size of specimen  W300xD300mm
     Weight  About 250kg
     Size of machine  W765xD895mmxH1250mm
     Size with table  W1400xD900xH1900mm



    Package:



    Multi Function Keystroke Tester , Force Testing Machine Compression



    Multi Function Keystroke Tester , Force Testing Machine Compression



    Multi Function Keystroke Tester , Force Testing Machine Compression
