    Detailed Product Description
    Products Name: Mobile Phone Drop Test Machine Model: RS-DP-03A
    Drop Height: 400~2000mm Max Sample Weight: 2kg
    Drop Height Setting: Touch Panel Setting And Display Min Release Height: 300mm
    Counter: 0~999,999 (settable) Weight: About 420kg
    Dimension: W1000xD1180xH2415mm Power Supply: AC220V 30A Or Specified By User
    High Light:

    drop test equipment

    ,

    drop weight tear tester

    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine







    Model: RS-DP-03A



    Application:



    Automatic Cellphone Drop Test Machine is to evaluate the product performance after unintentional drop, it is suitable to do test for all kinds of consuming electronic products, such as the mobile phone, tablet, e-reader, telephone, e-dictionary , remote control ETC.

    Servo Control Mobile Phone Drop Test Machine is the wide-ranging using in the manufacturers for mobile phones and tablets, such as ZTE, Foxconn, Liteon, Compal, Quanta, Salcomp, AAC, Gree, BYD Holitech,Ofilm, Foxlink ETC.



    Standard: IEC 60068-2-32





    Specification:



     Model  RS-DP-03A
     Drop height  300~2000mm
     Max sample weight  2kg
     Drop height setting  Touch panel setting and display
     Min release height  300mm
     Counter  0~999,999 (settable)
     Air source  ≥0.5MPa
     Tester size  W1000xD1180xH2415mm
     Weight  About 420kg
     Power supply  AC220V 50Hz 3A or 110V 60Hz 6A
     Drop bases  Steel, Wood, Granite
     Sample fixing  Sucker or Clamper





    Machine Structure:

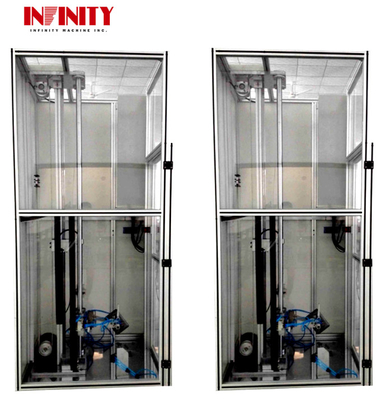

    a. High Precision Cell Phone Drop Test Machine adopts AC servo motor and synchronous pulley for the drop height adjusting, can guarantee the height precision, and long durability.



    b. Hanset Drop Test Machine adopts the color touchpanel+ PLC to control and set the motion, can set the drop height directly, it will auto stop when it reaches the set height, it can preset the drop times and has power-off memory function, all the controls can be done in the touch panel: drop, reset, height setting, drop times, and counting.



    c. Mobile Device Drop Test Machine is to use the SMC vacuum sucker for the samples sucking, the edges, corner can faces impact can be done.



    d. Tested sample will be released at the height of 300mm, the tested sample drop gesture is close to the original set gesture.



    e. Telephone Automatic Drop Test Machine is used aluminum alloy frame and transparent PMMC as the whole sealing enclosure , it is installed with the Omron safety lock, , the tester can be triggered when it locks, that can guarantee the security.



    f. All the pneumatic parts are from SMC, can make sure the high performance and long durability.



    g. Various drop bases are available: steel base, wood base, granite base, that is to meet the various impact medium requirements.



    h. Auto count(Drop cycles) function function, Auto drop mode and the manual drop mode are switchable.



    i. The drop friction can be lowest because it uses the Japan THK high precision low friction sliding rail.



    j. Telefono Drop Test Machine has special handle controller, it is convenient to control the Start, Stop, and Reset during the testing.



    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 0



    Sucker sucking angle: 0°,45°, 90°:



    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 1

    To use PMMA to make the fence to prevent the tested Sample from bounding out of the drop base area.





    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 2





    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 3

    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 4



    To use color LCD touchpanel controller.



    With acceleration testing device( First design in China):Chinese and English Interface, easy operation, strong performance.



     2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 5



    Software Specialties:



    After testing, auto display the drop speed.

    Three vacuum suckers freely switchable.

    After drop, Auto return to sample loading position.

    Drop height, Sample loading height can be set, drop times display/Reset





    Several customers adopted high speed camera, laser distance meter to verify the accuracy of drop speed and acceleration.



    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 6



    2000mm Phone Drop Test Machine, Automatic Smartphone Drop Test Machine, High Precision Mobile Phone Drop Test Machine 7
