Home ProductsPackage Testing Equipment

ISO2813 Package Testing Equipment Gloss Measurement Static Friction Coefficient

ISO2813 Package Testing Equipment Gloss Measurement Static Friction Coefficient

    • ISO2813 Package Testing Equipment Gloss Measurement Static Friction Coefficient
  • ISO2813 Package Testing Equipment Gloss Measurement Static Friction Coefficient

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: IN-3011

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Coefficient Measuring Range: 0--1 Test Force Accuracy(N): ±0.001
    Weight Of Sliding Bock: 200±2 G(optional: 100/500/1000)g Size Of Sliding Block: 63×63mm
    Thickness Of Specimen: ≤2mm Size Of Working Platform: 180mm×630mm
    Dimension: 640x310x200mm Weight: 16kg
    High Light:

    packaging testing equipments

    ,

    packaging testing equipment

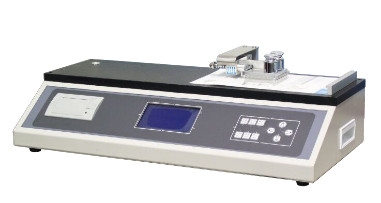

    ISO2813 Package Testing Equipment Gloss Measurement Static Friction Coefficient



    Model: IN-3011


    Purpose:



    Friction tester is researched and developed aimed at testing the dynamic and static friction coefficient of plastic film and sheeting, rubber, paper, board, woven bag, fabric style, metallic material composite belt used for telecommunication cable and optical cable,conveyer belt,wood,coating,brake block,windshield wiper and other materials when they are sliding. It is manufactured based on national standards GB/T10006 “Plastic-Film and sheeting-determination of friction coefficient”, meeting standards of GB/T 17200,GB/T 22895,ISO 8295,ASTM D1894,TAPPI T816,GB/T 2792. It is the ideal test equipment for quality testing department of all levels and manufacturers, and able to provide accurate test result for you.


    Standard:


    GB/T 17200,GB/T 22895,ISO 8295,ASTM D1894,TAPPI T816,GB/T 2792


    Product advantages:



    Meeting various national standards,

    Large measurement stroke,

    Suitable for friction coefficient test for lots of product

    Built-in R232 interface, can connect the computer

    Large LCD, display with curve chart

    Standard equipped weights and paper cutter



    Specification:



     Model  IN-3011
     Coefficient measuring range  0--1
     Test force accuracy(N)  ±0.001
     Test force range  0 ~ 10N
     Weight of sliding bock  200±2 g (optional: 100/500/1000) g
     Size of sliding block  63*63
     Stroke  10+60mm(GB 10006,ISO 8295);150mm(ASTM  D1984);1-320mm non-standard setting
     Moving speed of sliding block  100mm/min(GB 10006, ISO 8295);  150mm/min(ASTM  D1984)stepless speed regulation;  other speed:  (0~550)mm/min adjustable.
     Maxim size of specimen

     upper specimen 63*63mm

     lower specimen 80*200mm

     Thickness of specimen  ≤2mm
     Size of working platform  180mm×630mm
     Dimension  640x310x200mm
     Weight  16kg
