| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE,ISO |
| Model Number: | IE7 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociate |
| Packaging Details: | Master carton |
| Delivery Time: | 200 sets per monthes |
| Payment Terms: | T/T,D/P,L/C |
| Supply Ability: | 200 sets / month |
| Power Supply For The Test Samples:: | 220V (or Specified) | Speed Of Evacuation:: | 0-60L / H (Adjustable) |
|---|---|---|---|
| Test Dust:: | Arizona DUST A2 (standard With 2 Kg) | Total Test Time:: | 0-9999999 Min (Adjustable) |
| Standard Spacing Between The Lines:: | 75um | Safety Protection Function:: | Leakage Protection, Short-circuit Protection |
| Timeline Accuracy:: | ± 1 Second | Powder Spraying And Dust Removal Method:: | Free Dust Removal |
| High Light: | Environmental Test Chamber,Advanced Environmental Test Chamber |
||
The Climate Sand Dust Test Chamber is powered by a 220V 50Hz 1.5KW power supply (or Specified), which provides enough power to operate the machine efficiently and effectively. Additionally, the machine comes with an adjustable speed of evacuation, ranging from 0-60L / H, allowing users to customize the testing conditions to suit their specific needs.
The Climate Sand Dust Test Chamber complies with various international standards, including IEC60529:1989 + A1:1999 + A2:2013, Degrees Of Protection Provided By Enclosures (IP Code), GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 And Figure 3, and GB7000.1 Article 9.2.1 And No.9.2.2 And Fig. 6. These standards ensure that the machine meets the highest standards of quality and reliability, and is suitable for use in a wide range of industries, including automotive, aerospace, and electronics.
The Climate Sand Dust Test Chamber is a durable, long-lasting, and easy-to-use device that is designed to deliver accurate and reliable results every time. Whether you're testing the resistance of electronic components or the durability of automotive parts, this machine is the perfect choice for all your sand and dust testing needs.
| Product Name: | Environmental Sand Dust Simulation Test Chamber |
| Sand Dust: | Arizona DUST A2 (standard With 2 Kg) |

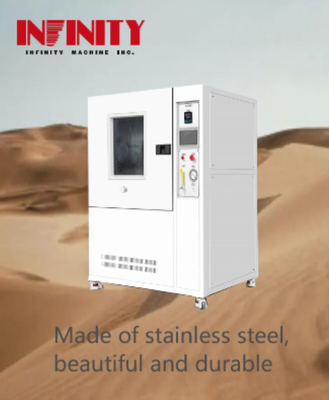

| Features: | Suitable For IP5X, IP6X Dust Proof Grade Test Of Products. The Shell Is Made Of Domestic High Quality Steel Plate, The Surface Spraying Paint, Beautiful And Durable. The Inner Box And Sample Frame Are Made Of Stainless Steel Plate To Ensure No Rust For A Long Time. There Is A Transparent Observation Window (tempered Glass Is Made Of Material) On The Door, And LED Lights Are Installed In The Box To Observe The Internal Test Situation. The Bottom Of The Equipment Has A Replaceable Dust Device, Which Can Easily Replace The Used Dust The Box Is Installed With A Vibration Device, Which Can Work Automatically Alternately To Prevent Dust From Sticking To The Wall Of The Box And Condensation. There Is A Suction Pipe In The Box, And The Vacuum Action Can Be Performed For The Sample (the Suction Hole Should Be Reserved For The Sample). Control System Of Sand Dust Test Box: Using 7-inch Touch Screen + Panasonic PLC, Can Display The Year, Month, Day, Time, Working Time, Etc. Control The Dust Blower, Dust Vibration And Total Test Time Respectively; This Controller Has The Following Arbitrary Setting Control Functions; A. Dust Blowing Time (stop And Blow): Arbitrarily Select The Time Setting Of Continuous And Periodic Dust Blowing; B.Vibration Time: Vibration And Stop Vibration Time Automatically Alternate; C. Preset Test Time: The Test Time Range Is 0-999999 Minutes; D. Power On: Off —— On —— Off. Heating System: A Heater Is Installed In The Circulating Air Duct To Avoid Dust Condensation, Pipe Wrap Hoop Mica Sheet Heating Ring, The Heat Is Safe And Stable; Vacuum System: Equipped With Vacuum Pump, Vacuum Meter, Air Filter, Flow Meter And Connecting Pipe. Metal screen standard line via: 50um Safety protection function: Leakage Protection, Short-circuit Protection Power supply for the test samples: 220V (or Specified) Vacuum table range: 0- -10 Kpa (adjustable) External dimensions: (W * D * H): 1250 * 1050 * 1755mm (customizable) Standard dosage of talc powder: 2～4kg/m³ speed of evacuation: 0-60L / H (Adjustable) Equipment overview: Application Fields: Outdoor Lamps, Household Appliances, Auto Parts And Other Electronic And Electrical Products. Equipment Use: The Main Function Of The Equipment Is To Test The Electronic And Electrical Products, Lamps, Electrical Cabinets, Electrical Components, Automobiles, Motorcycles And Their Components In The Physical And Other Related Properties Under The Climatic Conditions Of Simulating Dust. After The Test, To Judge Whether The Performance Of The Product Meets The Requirements Through Verification, So As To Facilitate The Design, Improvement, Verification And Factory Inspection Of The Product. |
The Environmental Test Chamber is designed for a wide range of product application occasions and scenarios. The Sand Dust Test Chamber is perfect for simulating sand and dust environments, which is essential for testing the durability and reliability of products. This product is ideal for the testing of electronics, automotive parts, and other products that are exposed to harsh environments.
The Sand Dust Test Chamber is equipped with a powder spraying and dust removal method, which ensures that the product is free from dust and other contaminants. The metal screen standard line via is 50um, which is the perfect size for filtering out unwanted particles. The timeline accuracy of ± 1 Second ensures that the testing is conducted accurately and efficiently. The standard dosage of talc powder is 2～4kg/m³, which is the perfect amount for simulating a sand and dust environment. The vibration time is adjustable, with a range of 0-999999S.
Overall, the Environmental Sand Dust Simulation Test Chamber is a versatile and reliable product that is perfect for testing the durability and reliability of products in harsh environments. With its high-quality design and reliable performance, this product is a must-have for any company that needs to test their products in sand and dust environments.
Infinity Machine offers Product Customization Services for the Sand Dust Test Chamber, also known as the Environmental Dust Proof Testing Machine or Climate Sand Dust Test Chamber.
Product Attributes:

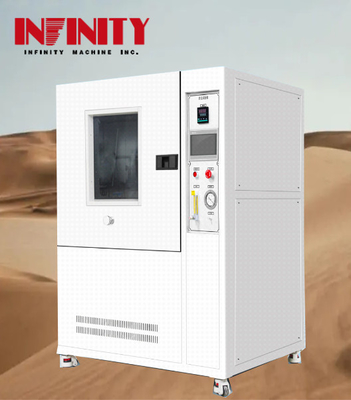

Device picture:
The Environmental Test Chamber product is designed to provide precise temperature and humidity control for testing various products under different environmental conditions. Our technical support and services for this product include:
- Installation and setup assistance
- Training for proper use and maintenance of the chamber
- Troubleshooting guidance for any issues encountered during operation
- Calibration and validation services to ensure accurate and reliable results
- Repair and maintenance services to keep the chamber in optimal working condition
Our team of skilled professionals is dedicated to providing exceptional support and services to ensure the Environmental Test Chamber product meets the needs of our customers.
Product Packaging:
The Environmental Test Chamber product will be securely packaged in a sturdy cardboard box with foam inserts to prevent any damage during shipping.
Shipping:
We offer free standard shipping for all Environmental Test Chamber orders within the continental United States. Additional shipping charges may apply for orders outside of this area. Orders will be shipped within 3-5 business days of purchase. Expedited shipping options are also available for an additional fee.
A: The brand name is Infinity Machine.
Q: What is the model number of this environmental test chamber?
A: The model number is IE7 series.
Q: Where is this environmental test chamber made?
A: It is made in China.
Q: What certifications does this environmental test chamber have?
A: It has CE and ISO certifications.
Q: What is the minimum order quantity for this environmental test chamber?
A: The minimum order quantity is 1.
Q: What is the price of this environmental test chamber?
A: The price is negotiable.
Q: What are the packaging details for this environmental test chamber?
A: The packaging details consist of a master carton.
Q: How long does it take to deliver this environmental test chamber?
A: Delivery time is 200 sets per month.
Q: What are the payment terms for this environmental test chamber?
A: The payment terms are T/T, D/P, and L/C.
Q: What is the supply ability for this environmental test chamber?
A: The supply ability is 200 sets per month.
