1250 * 1050 * 1755mm Environmental Test Chamber with Speed of Evacuation 0-60L / H

Product Description:

This Environmental Sand Dust Simulation Test Chamber is suitable for IP5X, IP6X dust proof grade test of products. The shell of the chamber is made of domestic high quality steel plate and the surface is sprayed with paint, making it beautiful and durable. The inner box and sample frame are made of stainless steel plate to ensure no rust for a long time. There is a transparent observation window made of tempered glass material on the door and LED lights are installed in the box to observe the internal test situation. The bottom of the equipment has a replaceable dust device which can easily replace the used dust. The box is also installed with a vibration device which can work automatically alternately to prevent dust from sticking to the wall of the box and condensation. There is a suction pipe in the box, and the vacuum action can be performed for the sample (the suction hole should be reserved for the sample).

The control system of the Sand Dust Test Chamber uses a 7-inch touch screen and Panasonic PLC, which can display the year, month, day, time, working time, etc. The system can control the dust blower, dust vibration, and total test time respectively. This controller has the following arbitrary setting control functions:

• A. Dust Blowing Time (stop and blow): Arbitrarily select the time setting of continuous and periodic dust blowing.
• B. Vibration Time: Vibration and stop vibration time automatically alternate.
• C. Preset Test Time: The test time range is 0-999999 minutes.
• D. Power On: Off —— On —— Off.

The heating system of the Sand Dust Test Chamber includes a heater installed in the circulating air duct to avoid dust condensation. The pipe wrap hoop mica sheet heating ring ensures that the heat is safe and stable. The vacuum system is equipped with a vacuum pump, vacuum meter, air filter, flow meter, and connecting pipe for efficient testing.

Safety protection functions of the Sand Dust Test Chamber include leakage protection and short-circuit protection.

In summary, the Sand Dust Test Chamber is an essential tool for testing the dust proof grade of products. It has a sturdy construction and advanced features such as vibration time and adjustable test time. The control system is user-friendly with a touch screen display and PLC. The heating and vacuum systems ensure efficient testing and the safety protection functions provide added security. Invest in the Sand Dust Test Chamber for reliable and accurate testing results.

Features:

• Product Name: Environmental Test Chamber
• Vacuum table range: 0- -10 Kpa (adjustable)
• Standard spacing between the lines: 75um
• Equipment overview:
  • Application Fields: Outdoor Lamps, Household Appliances, Auto Parts And Other Electronic And Electrical Products
  • Equipment Use: The Main Function Of The Equipment Is To Test The Electronic And Electrical Products, Lamps, Electrical Cabinets, Electrical Components, Automobiles, Motorcycles And Their Components In The Physical And Other Related Properties Under The Climatic Conditions Of Simulating Dust. After The Test, To Judge Whether The Performance Of The Product Meets The Requirements Through Verification, So As To Facilitate The Design, Improvement, Verification And Factory Inspection Of The Product.
• Standard dosage of talc powder: 2～4kg/m³
• Equipment power supply power: 220V 50Hz 1.5KW (or Specified)
• Keywords: Environmental Dust Proof Testing Machine, Environmental Sand Dust Simulation Test Chamber, Environmental Dust Proof Testing Machine

Technical Parameters:

Applications:

Introducing the Climate Sand Dust Test Chamber from Infinity Machine, model number IE7 series, made in China. This product is certified with CE and ISO, and has a minimum order quantity of 1. The price is negotiable and packaging details include a master carton. With a supply ability of 200 sets per month, we can deliver the product in a timely manner, with a delivery time of 200 sets per month.

The Climate Sand Dust Test Chamber is designed for testing electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their components in physical and other related properties under the climatic conditions of simulating dust. The main function of the equipment is to test the products and judge whether the performance of the product meets the requirements through verification, so as to facilitate the design, improvement, verification, and factory inspection of the product.

The equipment power supply power is 220V 50Hz 1.5KW (or specified) and power supply for the test samples is 220V (or specified). The product complies with IEC60529:1989 + A1:1999 + A2:2013, Degrees of Protection Provided by Enclosures (IP Code), GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 and Figure 3, and GB7000.1 Article 9.2.1 and No.9.2.2 and Fig. 6.

This Sand Dust Test Chamber is suitable for use in various application fields, including outdoor lamps, household appliances, auto parts, and other electronic and electrical products. It is an essential tool for testing the durability and performance of products under harsh environmental conditions. With its reliable performance and accurate testing results, the Climate Sand Dust Test Chamber from Infinity Machine is a must-have for any company that wants to ensure their products meet the highest quality standards.

Order yours today and experience the benefits of this top-quality testing equipment!

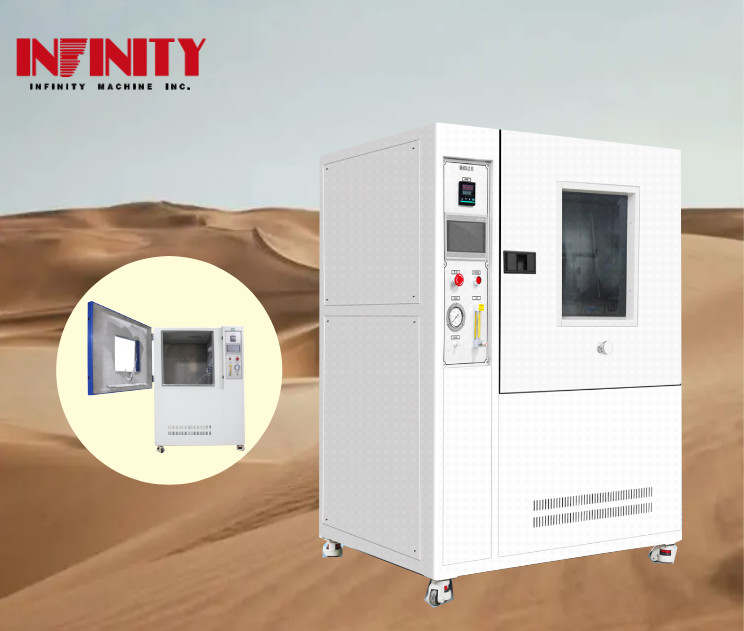

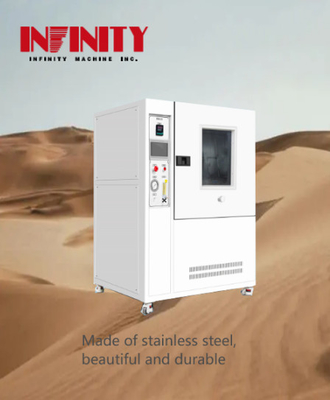

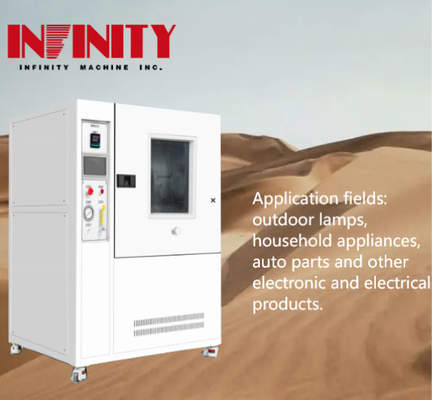

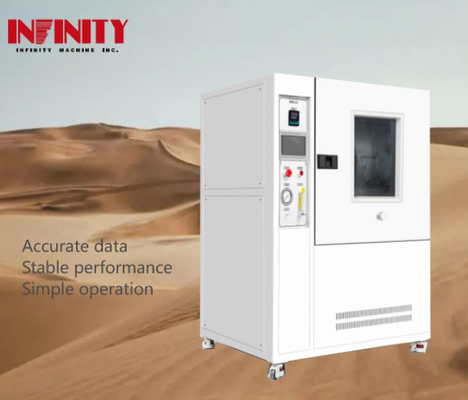

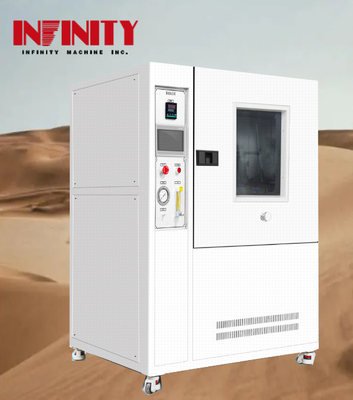

Device picture:

Support and Services:

The Environmental Test Chamber product technical support and services include:

• Installation and setup assistance
• Calibration and validation services
• Technical troubleshooting and problem-solving
• Repair and maintenance services
• Training and education on product use and best practices
• Product upgrades and modifications
• Remote monitoring and diagnostic services
• 24/7 customer support

Packing and Shipping:

Product Packaging:

• The Environmental Test Chamber will be packed securely in a wooden crate to prevent any damage during shipping.
• The crate will be labeled with the product name and a warning to handle with care.
• Inside the crate, the Environmental Test Chamber will be wrapped in multiple layers of protective material to ensure safe transportation.

Shipping:

• We offer worldwide shipping via sea, air, or land transportation.
• Shipping costs will be calculated based on the destination and shipping method chosen.
• Once the order is confirmed, the Environmental Test Chamber will be shipped within 3-5 business days.
• Customers will receive a tracking number to monitor the shipment status.

FAQ:

Q: What is the brand name of the environmental test chamber?

A: The brand name of the environmental test chamber is Infinity Machine.

Q: What is the model number of the environmental test chamber?

A: The model number of the environmental test chamber is IE7 series.

Q: Where is the environmental test chamber made?

A: The environmental test chamber is made in China.

Q: What certifications does the environmental test chamber have?

A: The environmental test chamber has CE and ISO certifications.

Q: What is the minimum order quantity for the environmental test chamber?

A: The minimum order quantity for the environmental test chamber is 1.

Q: What is the delivery time for the environmental test chamber?

A: The delivery time for the environmental test chamber is 200 sets per month.

Q: What are the payment terms for the environmental test chamber?

A: The payment terms for the environmental test chamber are T/T, D/P, and L/C.

Q: What is the supply ability of the environmental test chamber?

A: The supply ability of the environmental test chamber is 200 sets per month.

Q: What is the price of the environmental test chamber?

A: The price of the environmental test chamber is negotiable.

Q: What are the packaging details of the environmental test chamber?

A: The packaging details of the environmental test chamber are master carton.
