| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2001A-5KN |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Displacement Measurement Accuracy: | 0.01mm | Feature 2: | It Is Driven By Japanese Panasonic AC Servo Motor, High-precision Gapless Ball Screw Transmission, And Matched With American TRANSCELL High-precision Explosion-proof LOADCELL. The Force Value Accuracy Is As High As: ±0.5%; The Displacement Accuracy Is As H |
|---|---|---|---|
| Force Unit: (switchable): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² | Application: | The Equipment Is Used For Suitable For Stretching, Compressing, Bending, Peeling, Etc. Of Metal Wire, Metal Foil, Metal Sheet And Metal Tape, Rubber, Plastic, Sea/foam, Waterproof Materials, Wires And Cables, Textiles, Mesh Ropes, Non-woven Fabrics And Oth |
| Product Model Number: | IF2001A | Power: | AC220V 50/60Hz Or Specified By User |
| Product Name: | Servo Controlled Universal Testing Machine | Speed Accuracy: | ±0.5% |

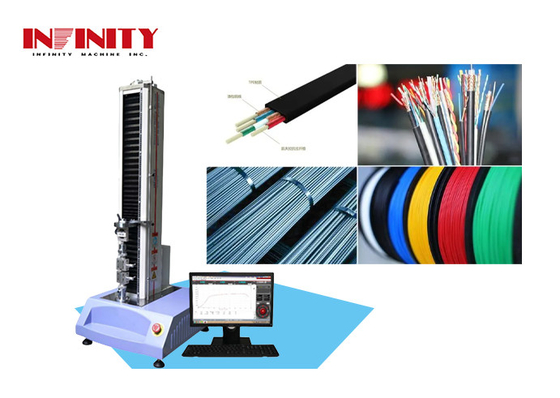

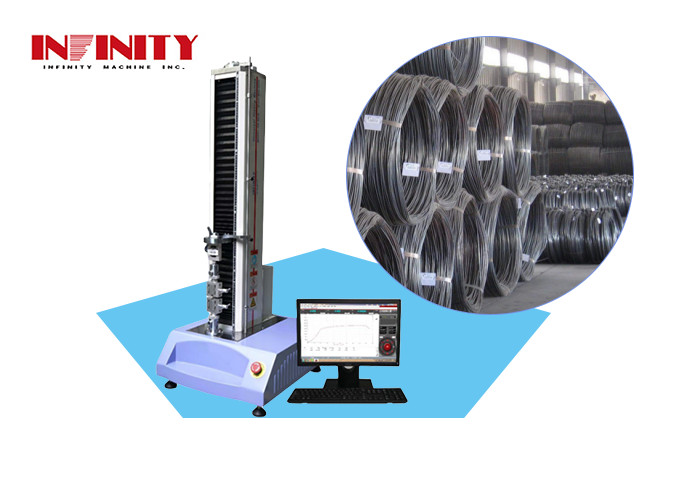

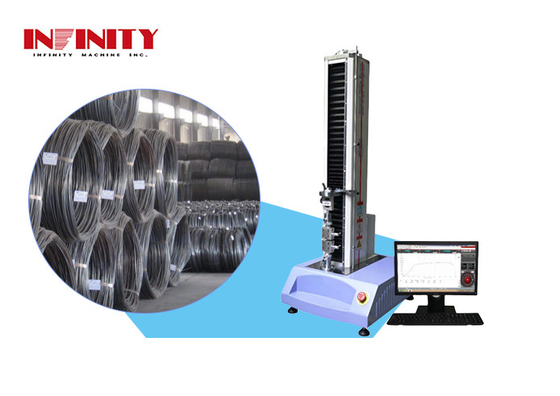

The IF2001A Universal Testing Machine is a versatile and precise equipment designed for conducting a wide range of mechanical tests on various materials. It is suitable for tensile testing, compression testing, and other tests that require precise force and displacement measurements.
This machine is equipped with a Japanese Panasonic AC Servo Motor, ensuring a smooth and stable operation. It also features a high-precision gapless ball screw transmission, providing accurate and reliable force and displacement measurements. The force value accuracy of this machine is as high as ±0.5%, while the displacement accuracy is as high as 0.01mm, making it an ideal choice for demanding testing applications.
| Feature | Description |
|---|---|
| Driven by Japanese Panasonic AC Servo Motor | Ensures smooth and stable operation |
| High-precision gapless ball screw transmission | Provides accurate and reliable force and displacement measurements |
| American TRANSCELL high-precision explosion-proof LOADCELL | Ensures safety and precision in testing |
| Force value accuracy | High accuracy of ±0.5% for precise testing results |
| Displacement accuracy | High accuracy of 0.01mm for precise testing results |
| Equipment Size | 500X600X1200mm |
|---|---|
| Force Resolution | 1/500,000 |
| Product Model Number | IF2001A |
| Displacement Measurement Accuracy | 0.01mm |
| Product Name | Universal Testing Machine |
|---|---|
| Product Model Number | IF2001A |
| Product Type | Cable Testing Machine, Electromechanical Universal Testing Machine, Electronic Universal Testing Machine |
| Motor | AC Servo Motor |
| Force Value Sensor Capacity |
5kN,10kN,20kN,50kN,100kN,300kN,500kN |
| Displacement Decomposition Degree | 0.001mm |
| Displacement Measurement Accuracy | 0.01mm |
| Power | AC220V 50/60Hz or specified by user |
| Force Unit (switchable) |
N,kN,Gf,Kgf,Lbf,Mpa,Lbf/In²,Kgf/mm² |
| Test Speed | 0.01~500mm/min |
| Test Itinerary | 650mm |
| Speed Accuracy | ±0.5% |
Brand Name: Infinity Machine
Model Number: IF2001A-5KN
Place of Origin: Made In China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, and more
Supply Ability: 200 sets per month
Equipment weight: 140kg
Test speed: 0.01~500mm/min
The Infinity Machine Electromechanical Universal Testing Machine (UTM) is a versatile and advanced equipment used for testing the mechanical properties of various materials. It is suitable for stretching, compressing, bending, peeling, and other tests on metal wire, metal foil, metal sheet, metal tape, rubber, plastic, sea/foam, waterproof materials, wires and cables, textiles, mesh ropes, non-woven fabrics, and more. It can also perform shearing, tearing, bursting, puncture, fatigue, and other tests on these materials.
The UTM is widely used in industries such as manufacturing, construction, automotive, aerospace, and research and development. It is essential for quality control and product development, ensuring that materials used in various applications meet the required standards.
Experience the precision, efficiency, and durability of the Infinity Machine Electromechanical Universal Testing Machine. Contact us now for more information and to place your order.
With Different Fixtures, Various Tests Such As Tension, Compression, Bending, Shearing, Tearing, And Peeling Can Be Performed.
Our Universal Testing Machine is carefully packaged and shipped to ensure its safe arrival at your doorstep. Here's how we package and ship our product:
We offer worldwide shipping for our Universal Testing Machine and use reliable carriers to ensure timely delivery. Here's how we ship our product:
With our meticulous packaging and efficient shipping, you can be confident that your Universal Testing Machine will arrive in perfect condition. Thank you for choosing our product!
