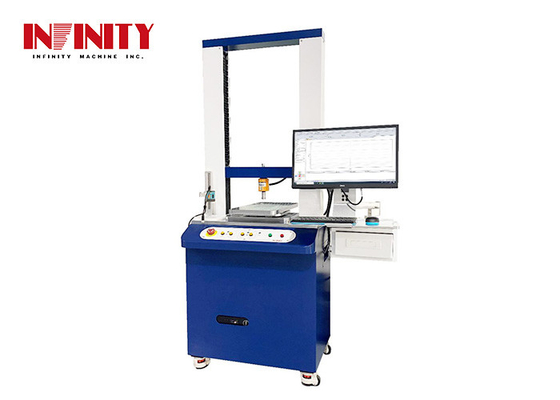

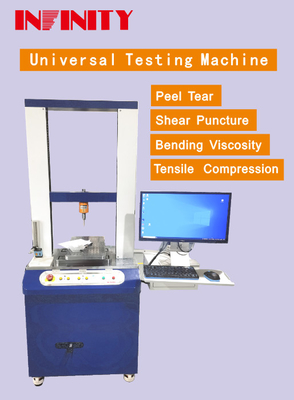

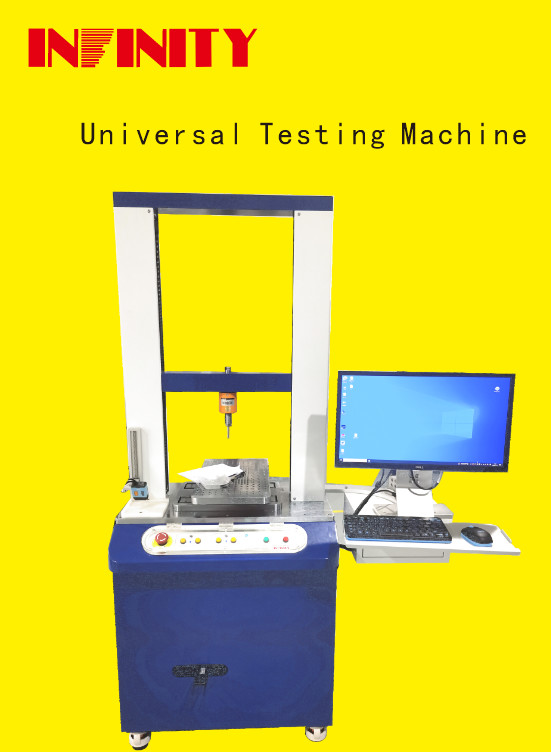

500Kg Force Value Sensor Capacity Universal Testing Machine 0-600mm Test Trip Range 420mm Effective Width

Product Description:

The Mechanical Universal Testing Machine is a highly precise and versatile testing equipment designed for testing the mechanical properties of various materials. It is widely used in industries such as aerospace, automotive, construction, and manufacturing to ensure the quality and reliability of products.

• All test conditions are input by computer and automatically stored, including load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, and more.
• The machine is equipped with a software that can plot the conductive force-stroke (kgf-mm) and force-time (kgf-time) curves in real-time.
• It automatically calculates the maximum force value, maximum displacement, test time, product bar code information, and more.
• The upper and lower limits can be set, and the software automatically determines whether the sample has passed or failed based on the test results.

The Universal Testing Machine has a compact and sturdy design, with dimensions of 1167x700x1770mm (WxDxH). It can easily fit into any testing laboratory or production facility.

The machine has a speed accuracy of ±0.5%, providing precise and reliable test results every time.

• The machine is equipped with a code scanner that can scan the QR code of the product, making it easier to manage the corresponding test data.
• The current force value and displacement changes are displayed in real-time and can be viewed in the form of force-stroke (kgf-mm) or force-time (kgf-time) curve diagrams.
• The test report can be selected and directly printed or saved in formats such as Word, Excel, and PDF.
• The motion shaft is driven by a high-quality Japanese Panasonic servo motor and precision ball screw drive, providing low noise and durable use.
• The operation interface can be switched between Simplified, Traditional, and English, making it suitable for global customers. The force value unit can also be switched between N, Lb, Gf, and Kgf.
• The machine comes with manual X and Y platforms, allowing users to change the test position easily.
• It has a force value protection function, where a protection value can be set according to the conventional test force. It automatically stops moving to reduce damage to the equipment and precision samples.
• The floor structure design of the machine brings the operator closer to the test area, making it more convenient to load and unload samples.
• The test method management logic is clear, and the software provides correctness checks for parameters and error information for new methods.
• The test data is stored in a local database for easy access and query. It also has data upload functions such as trace and PDCA, as per the customer's agreement.

The Universal Testing Machine is available in the IF3231 Series, providing different models to meet various testing requirements.

Applications:

• All Test Conditions Are Input By Computer And Automatically Stored: Load Measurement Range, Stroke Measurement Range, Total Number Of Measurements, Measurement Speed, Measurement Direction, Pause Time, Stay Time, Etc.
• Plot Of The Conductive Force-stroke (kgf-mm) And Force-time (kgf-time).
• Automatically Calculate The Maximum Force Value, Maximum Displacement, Test Time, Product Bar Code Information And So On.
• The Upper And Lower Limits Can Be Set, And The Passed Or Fail Is Automatically Determined By The Software.

Customization:

Brand Name: Infinity Machine

Model Number: IF3231

Place of Origin: Made In China

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram, and so on

Supply Ability: 200 sets / month

Power: AC220V 5A 50Hz or as specified

Test Speed: 0~1000mm/min

Displacement Decomposition Degree: 0.001mm

Test Report Details:

1. All test conditions are input by computer and automatically stored: load measurement range, stroke measurement range, total number of measurements, measurement speed, measurement direction, pause time, stay time, etc.
2. Plot of the conductive force-stroke (kgf-mm) and force-time (kgf-time).
3. Automatically calculate the maximum force value, maximum displacement, test time, product bar code information and so on.
4. The upper and lower limits can be set, and the passed or fail is automatically determined by the software.

Features:

• The code scanner is configured to scan the QR code of the product, which is more convenient to manage the test data of the corresponding product.
• Real-time display of the current force value and displacement changes, can be displayed: force-stroke (kgf-mm), or force-time (kgf-time) curve diagram.
• The test report can be selected, directly printed or saved as Word, Excel, PDF and other formats.
• The motion shaft is driven by Japanese Panasonic servo motor, precision ball screw drive, low noise, durable use.
• Language has Simplified/Traditional/English three operation interface can be switched, the force value unit has N, Lb, Gf, Kgf can be switched, suitable for global customers.
• Configure the manual X and Y platforms to change the test position arbitrarily.
• Open force value protection function, a protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples.
• The floor structure design of the whole machine makes the operator closer to the test area and more convenient for sample loading and unloading.
• The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. According to the customer agreement, it has data upload functions such as trace and PDCA.

Key words: mechanical universal testing machine, customization services

Packing and Shipping:

The Universal Testing Machine will be carefully packaged to ensure its safe delivery to our customers. The machine will be securely packed in a sturdy wooden crate, lined with protective materials to prevent any damage during transportation. The crate will also be labeled with handling instructions and marked as fragile to ensure proper handling. For international shipping, the Universal Testing Machine will be packed in compliance with all necessary export regulations and standards. This includes proper documentation, labeling, and packaging to ensure a smooth customs clearance process. We offer various shipping options to suit our customers' needs. Standard shipping will be by sea, with the machine being loaded onto a freight vessel and transported to the desired destination. For urgent deliveries, we also offer air freight services. Once the machine is ready for shipping, our team will carefully load it onto the designated transportation vehicle and secure it to prevent any movement during transit. Our experienced logistics team will track the shipment and provide updates on its status until it reaches its final destination. Upon delivery, our customers can expect a seamless unloading process, as our team will handle all the necessary unloading and placement of the Universal Testing Machine. We take great care in ensuring that the machine arrives safely and in perfect condition. We strive to provide the best shipping and packaging services for our Universal Testing Machine to ensure its safe and timely delivery to our valued customers. For any further inquiries or special shipping requests, please do not hesitate to contact us. Thank you for choosing our product.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is Infinity Machine.
• Q: What is the model number of this product?
  A: The model number of this product is IF3231.
• Q: Where is this product made?
  A: This product is made in China.
• Q: What certifications does this product have?
  A: This product is CE and ISO certified.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1 set.
• Q: Can the price of this product be negotiated?
  A: Yes, the price of this product can be negotiated.
• Q: How is this product packaged?
  A: This product is packaged in clear packaging.
• Q: What is the delivery time for this product?
  A: The delivery time for this product is 20-30 days after the order is confirmed.
• Q: What are the accepted payment terms for this product?
  A: The accepted payment terms for this product are TT, PayPal, Moneygram, and other options.
• Q: What is the supply ability for this product?
  A: The supply ability for this product is 200 sets per month.
