| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Coolants: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic | Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. |
|---|---|---|---|
| Temperature Range: | -20℃ ～ +150℃ | Lighting Device: | 1 LED Lighting Device, Installed On The Window. |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
| Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat | Temperature Uniformity: | ≦2.0℃ |

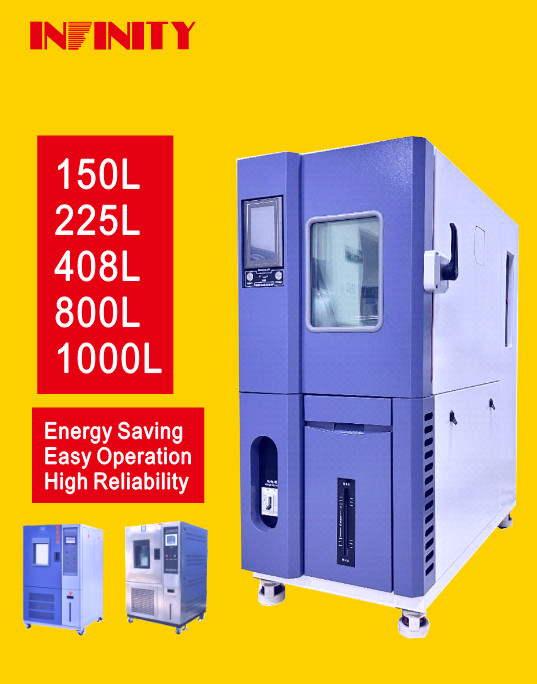

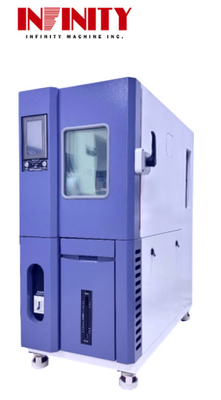

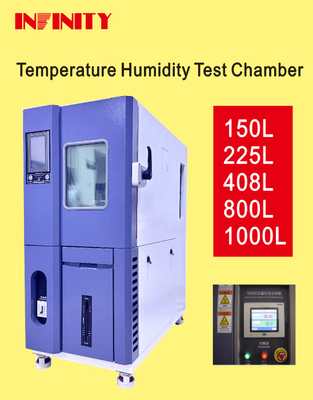

Temperature Range -20C to 150C Constant Temperature Humidity Test Chamber
The Programmable Constant Temperature And Humidity Test Chamber is a versatile and reliable testing equipment designed for various industries. This chamber is specially designed to provide a stable and controlled environment for conducting temperature and humidity tests on a wide range of products.
The Programmable Constant Temperature And Humidity Test Chamber is available in five different models: IE10A1 150L, IE10A1 225L, IE10A1 408L, IE10A1 800L, and IE10A1 1000L. Each model has a different capacity to cater to the specific needs of different industries.
This test chamber is equipped with advanced temperature control technology to ensure an accurate and constant temperature within the chamber. The temperature can be easily programmed and adjusted according to the testing requirements.
The Programmable Constant Temperature And Humidity Test Chamber also has a precise humidity control system that can maintain a stable humidity level within the chamber. The humidity fluctuation is only ±1.0％RH, making it suitable for conducting accurate and reliable tests on sensitive products.
This test chamber uses Non-fluorine Environmental Refrigerant R404A as the coolant. This refrigerant is in line with environmental regulations and is safe and non-toxic, ensuring the safety of both the operator and the environment.
The Programmable Constant Temperature And Humidity Test Chamber has an impressive temperature decrease rate, going from +20℃ to -20℃ within 40 minutes with no load. This is achieved even at an ambient temperature of +25℃, making it a highly efficient and reliable testing equipment.
Overall, the Programmable Constant Temperature And Humidity Test Chamber is a top-of-the-line product that meets all the necessary standards and regulations. Its advanced features and precise control make it an ideal choice for conducting various temperature and humidity tests in different industries.
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
The Constant Temperature and Humidity Test Chamber by INFINITY is a high-quality environmental testing equipment designed for various industries. With different models and sizes available, it is suitable for a wide range of applications.
Humidity control range: 20%R.H～98%R.H
The Constant Temperature and Humidity Test Chamber is ideal for testing the performance and reliability of electronic components, materials, and products under different temperature and humidity conditions. It is commonly used in industries such as:
With its precise temperature and humidity control, it ensures that products can withstand extreme conditions and meet quality standards.
For ordering the Constant Temperature and Humidity Test Chamber, please provide the following information:
Our team will get back to you with a quotation and further details.
Experience reliable and accurate testing with the Constant Temperature and Humidity Test Chamber by INFINITY. Contact us now!
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Our constant temperature and humidity test chambers are carefully packaged to ensure safe and secure transportation. Each chamber is first wrapped in a layer of protective foam and then placed in a sturdy wooden crate. The crate is then sealed and labeled with the necessary handling instructions and shipping details.
We offer various shipping options to meet the specific needs of our customers. Our test chambers can be shipped via air, sea, or ground transportation, depending on the location and urgency of the delivery. We work with reliable and trusted shipping companies to ensure timely and efficient delivery of our products.
Upon arrival, our customers can expect their constant temperature and humidity test chamber to be in excellent condition. Our packaging and shipping methods are designed to minimize any potential damage during transit.
Thank you for choosing our constant temperature and humidity test chamber. We are committed to providing high-quality products and excellent customer service. If you have any further questions or concerns, please do not hesitate to contact us.
