| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) |
|---|---|---|---|
| Models: | IE10A 150L ,IE10A 225L, IE10A 408L, IE10A 800L ,IE10A 1000L | Humidity Fluctuation: | ±1.0％RH |
| Humidity Uniformity: | ±3.0％RH（no Load） | Temperature Uniformity: | ≦2.0℃ |

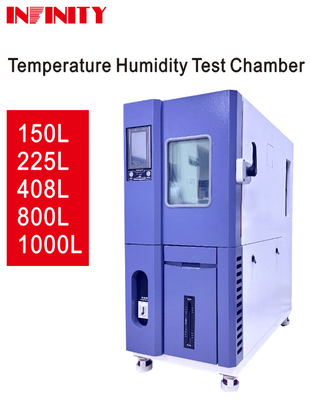

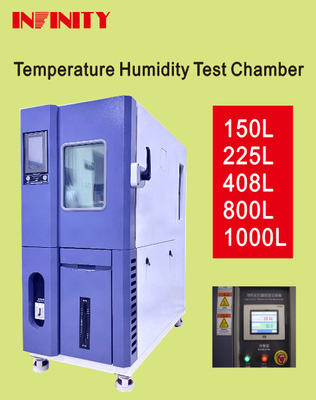

| Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat | Product Name: | Programmable Constant Temperature And Humidity Test Chamber |
A programmable constant temperature and humidity test chamber is an essential equipment designed for testing and evaluating the performance and reliability of products under specific temperature and humidity conditions. This chamber is widely used in the fields of electronics, electrical appliances, automotive, aerospace, and other industries where strict environmental conditions are required.
The constant temperature and humidity test chamber is built with advanced technology and high-quality materials to provide precise and stable temperature and humidity control, ensuring accurate and repeatable test results. With its comprehensive features and user-friendly design, it is an ideal solution for product quality control, research and development, and production testing.
The programmable constant temperature and humidity test chamber is designed to provide a temperature and humidity-controlled environment for testing products. It has a temperature range of -70℃ to +150℃ and a humidity range of 10% to 98% RH. The temperature and humidity can be programmed and controlled independently, allowing for a wide range of test conditions.
The temperature control system of the chamber ensures accurate and stable temperature control with a deviation of ±0.5℃. It has a heating rate of -70℃ to +100℃ within 90 minutes, and a cooling rate of +100℃ to -70℃ within 120 minutes. The temperature can be adjusted in increments of 0.1℃, providing precise temperature control for different test conditions.
The humidity control system of the chamber is designed to maintain a constant humidity level with a deviation of ±3.0％RH (>75％RH) and ±5.0％RH (≤75％RH). It has a humidity range of 10% to 98% RH and can be adjusted in increments of 1% RH. The humidity control system is equipped with a water level sensor to ensure a stable and accurate humidity level.
The chamber is equipped with 1 LED lighting device installed on the observation window, providing ample visibility for the user to observe the test process. The LED lighting device can be turned on or off according to the test requirements.
The chamber has a W 300×H 400mm observation window installed on the door of the box. The observation window is made of multi-layer hollow electrothermal coated glass, which effectively prevents heat loss and condensation. It allows the user to observe the test process without opening the chamber, reducing the impact on the test environment.
Overall, the programmable constant temperature and humidity test chamber is a reliable and efficient equipment for testing and evaluating the performance and reliability of products. Its advanced features, user-friendly design, and precise control make it an essential tool for product quality control and research and development.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
The INFINITY IE10A Programmable Constant Temperature and Humidity Test Chamber is a high-quality and reliable equipment designed for testing and evaluating the performance of various materials and products under different temperature and humidity conditions. It is widely used in industries such as electronics, automotive, aerospace, and pharmaceuticals.
The constant temperature and humidity test chamber is suitable for testing the performance of materials and products in a controlled environment. It can simulate a wide range of temperature and humidity conditions to ensure the reliability and quality of products in different environments. Some common applications of this test chamber include:
With its advanced features and high precision, the INFINITY IE10A Programmable Constant Temperature and Humidity Test Chamber is an ideal choice for testing and evaluating the performance of a wide range of materials and products. It is a must-have equipment for industries that require strict control over temperature and humidity conditions.
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Lighting Device: 1 LED Lighting Device, Installed On The Window.
Application: Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And Reliability Test.
Features:
Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.
Temperature Uniformity: ≦2.0℃
Customized Service:
Thank you for choosing our constant temperature and humidity test chamber. To ensure safe delivery and protect the product from any damage, we have carefully designed the packaging and shipping process. Please read the following information for more details.
The constant temperature and humidity test chamber will be packed in a sturdy wooden box, specifically designed for shipping fragile and sensitive equipment. The box will be lined with shock-absorbing materials and filled with foam to provide maximum protection during transportation.
Inside the box, the test chamber will be securely fixed with straps to prevent any movement. All delicate parts and components will be protected with bubble wrap or foam sheets.
Additionally, we have included a user manual and necessary cables and accessories in the package. The manual will guide you through the installation and operation process of the test chamber.
We offer worldwide shipping for our constant temperature and humidity test chamber. The product will be shipped via air or sea, depending on the destination and customer's preference.
We work with reliable shipping companies to ensure timely and safe delivery of the product. A tracking number will be provided to the customer once the order is shipped, allowing them to track their package's location and estimated delivery date.
In case of any damage or issues during transportation, please contact us immediately. Our customer service team will assist you in resolving the problem and ensuring your satisfaction with our product.
Thank you again for choosing our constant temperature and humidity test chamber. We hope it will meet your expectations and serve your needs effectively.
