| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE,ISO |
| Model Number: | IE10408L |
| Model number: | IE2408L Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociate |
| Packaging Details: | Master carton |
| Delivery Time: | 200sets per monthes |
| Payment Terms: | T/T,D/P,L/C, Western Union, MoneyGram |
| Supply Ability: | 200 sets / month |
| Temperature Range: | -40℃ ～ +150℃ | Temperature Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Temperature Uniformity: | ≦2.0℃ | Temperature Fluctuation: | ±1℃ |
| Inner Box Size: WxHxD(mm): | 600×850×800 | Outter Box Size: WxHxD(mm): | 820×1750 ×1580 |
| Power Supply: | AC380;V50Hz;7KW | Product Name: | 408L Vacuum Drying Chambers |

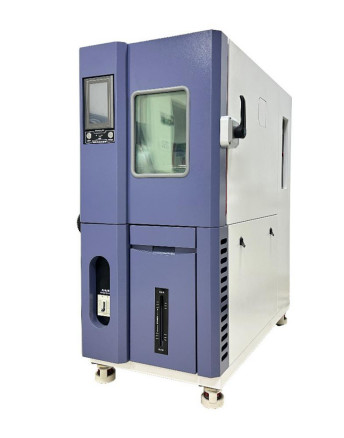

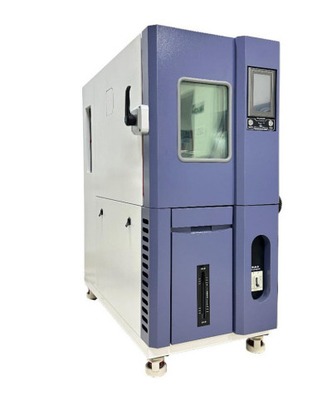

IE10 408L Vacuum Drying Chamber
Programmable Constant Temperature And Humidity Test Chamber
Product Description:
Application:
Applicable to electrical, electronic, mechanical and other products, parts, materials, etc. for high and low temperature, hot and humid test, simulated temperature and humidity changes in the conditions of the product, parts, materials, etc. for quality and reliability testing.
Standard:
GB-2423.1-2008(IEC68-2-1)Test A: Low temperature test method.
GB-2423.2-2008(IEC68-2-2)Test B: High temperature test method.
GJB360.8-2009(MIL-STD.202F)High temperature life test.
GJBl50.3-2009(MIL-STD-810D)High temperature test methods.
GJBl50.4-2009(MIL-STD-810D)Low temperature test methods.
GB2423.3-2008(IEC68-2-3)Test Ca: Constant damp heat test method.
GB2423.4-2008(IEC68-2—30)Test Db: Alternating damp heat test method.
GJBl50.9-2009(MIL-STD-810D)Damp heat test method.
| Model | IE10408L | |||||||||
| Temperature Range | -40℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| heating rate | From -40℃ to +100℃ within 60min (No load, ambient temperature +25℃) | |||||||||
| cooling rate | Decrease from +20℃ to -40℃ within 60min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity Deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
|
||||||||||
|
Inner box size: WxHxD(mm) |
600×850×800 | |||||||||
|
Outter box size: WxHxD(mm) |
820×1750 ×1580 | |||||||||
|
Thermal insulation box
|
|
|||||||||
|
box door
|
For single door, install a jamb heater at the jamb to prevent condensation at low temperatures. | |||||||||
|
viewing window
|
W 300×H 400mm observation window is installed on the door of the box, and the multi-layer hollow electric coated glass can effectively insulate the temperature and prevent condensation. | |||||||||
|
Lighting
|
1 LED illuminator, mounted on the window. | |||||||||
|
sample holder
|
Stainless steel sample rack 2 tiers, height adjustable, load capacity 30kg/tier. | |||||||||
|
Refrigeration compressors
|
Teconn, France, Fully Closed Compressors | |||||||||
|
refrigerant
|
Non-fluorine environmental protection refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
|
Condenser method
|
air-cooled | |||||||||
| Safe protectdevice |
Heater anti-empty incineration protection; Humidifier anti-incineration protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; . Compressor overheating protection; Compressor overcurrent protection; Overvoltage under reversed phase protection; Line circuit breaker; Leakage protection; Humidifier low water level protection; Water tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
The Environmental Test Chamber will be packaged with care to ensure its safe arrival to the customer. The packaging materials used will be sturdy and durable to protect the product from any potential damage during shipping.
The first step in the packaging process will be to carefully wrap the Environmental Test Chamber in bubble wrap. This will provide an extra layer of protection against any bumps or impact during shipping.
Next, the wrapped product will be placed in a sturdy cardboard box that is specifically sized to fit the Environmental Test Chamber. The box will be sealed with heavy-duty tape to ensure its secure closure.
Additional cushioning materials, such as foam or packing peanuts, will be used to fill any empty spaces inside the box and further protect the product.
We offer a variety of shipping options to meet the needs of our customers. Our standard shipping method is through reputable carriers such as UPS, FedEx, or DHL.
For customers who require expedited shipping, we offer express delivery options at an additional cost. Please contact us for more information on expedited shipping rates and delivery times.
Once the Environmental Test Chamber is shipped, the customer will receive a tracking number via email or phone. This will allow them to track the status of their package and know when to expect its delivery.
We take great care in ensuring that our products are delivered in a timely and safe manner. However, if any damage occurs during shipping, please contact us immediately and we will work to resolve the issue.
