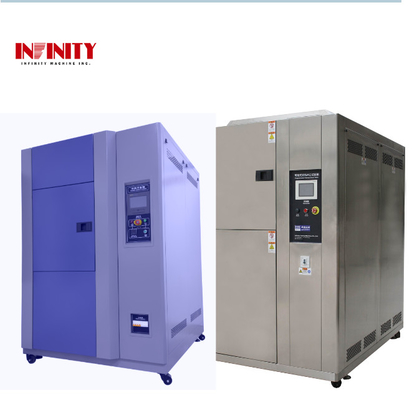

Name: 80L/150L/225L/408L Thermal Shock Test Chamber -40°C- 150°C ≤5 Minutes Recovery Time
Brand: INFINITY
SKU: IE31 Series
Rating: 5 (121 reviews)

The Thermal Shock Test Chamber is a high-quality testing equipment designed to simulate extreme temperature changes and evaluate the performance of materials and products. It is an essential tool for industries such as aerospace, automotive, electronics, and more. This product is available in various sizes, including 80L, 150L, 225L, and 408L, to meet different testing needs.

The Thermal Shock Test Chamber is equipped with a W 300×H 400mm observation window on the door of the box. This window is made of multi-layer hollow electrothermal coated glass, which effectively maintains heat and prevents condensation. It allows for easy observation of the test sample during the testing process without affecting the temperature inside the chamber.

Safety is a top priority when it comes to testing equipment. The Thermal Shock Test Chamber is equipped with multiple safety protection devices to ensure the safety of the operator and the test sample. These include heater anti-burning protection, heater over current protection, circulating fan over current overload protection, compressor high pressure protection, compressor overheat protection, compressor over current protection, over voltage under inverse-phase protection, circuit breaker, and leakage protection.

The sample holder of the Thermal Shock Test Chamber is made of stainless steel and can hold up to 30kg per layer. It has two layers, which are height adjustable to accommodate different sample sizes. This ensures the stability and safety of the test samples during the extreme temperature changes.

The Thermal Shock Test Chamber has a wide temperature range of -40℃ ～ +150℃, making it suitable for various testing needs. It can quickly and accurately change the temperature to simulate real-life temperature changes and evaluate the performance of materials and products under extreme conditions.

The Thermal Shock Test Chamber is equipped with advanced programmable features, allowing for precise control of temperature and humidity during the testing process. It can simulate different temperature and humidity conditions to meet specific testing requirements, making it a versatile and efficient testing equipment.

The Thermal Shock Test Chamber is available in three models: Programmable Humidity Thermal Shock Test Chamber, Programmable Thermal Shock Chamber, and Programmable Cryogenic Thermal Shock Chamber. Each model has its unique features and specifications, allowing for flexibility and customization in testing.

Overall, the Thermal Shock Test Chamber is a reliable and high-performance testing equipment that can accurately simulate temperature changes and evaluate the performance of materials and products. Its advanced features, safety protection devices, and various models make it an essential tool for industries that require precise testing and evaluation.

Applications:

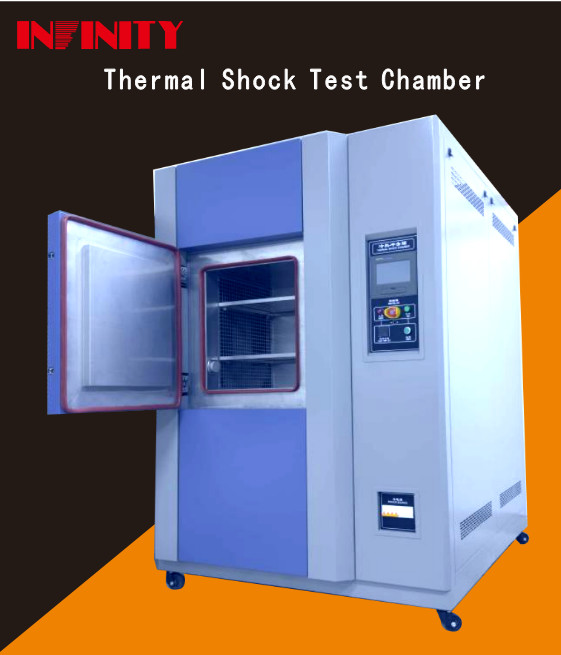

Thermal Shock Test Chamber - INFINITY IE31 Series

The INFINITY IE31 Series Thermal Shock Test Chamber is a high quality and reliable product designed for testing the impact of sudden temperature changes on various materials. It is suitable for use in a wide range of industries such as electronics, automotive, aerospace, and more. With its advanced technology and precise temperature control, this thermal shock test chamber is the ideal choice for all your testing needs.

Product Specifications

Brand Name: INFINITY
Model Number: IE31 Series
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and more
Supply Ability: 200 sets / month
Coolants: Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic
Test Standards: GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test; National Military Standard GJB150.3-86; National Military Standard GJB150.4-86; National Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test, GJB360.7-87 Temperature Impact Test; GJB367.2-87405 Temperature Impact Test; J/T10187-91Y73 Series Temperature Change Test Box - Three Box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change.
Inspection window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.
Condenser system: IE31 80L-100L : Air-cooled; IE31 150L-408L: Water-cooled
Temperature fluctuation: ±1℃

Product Description

The INFINITY IE31 Series Thermal Shock Test Chamber is designed to simulate extreme temperature changes and test the durability and reliability of products. It is equipped with a programmable temperature control system that allows for precise and accurate temperature settings. The chamber is divided into three sections - high temperature, low temperature, and test area - with a transfer basket that moves the product between them. This allows for rapid temperature changes and ensures the product is exposed to the extreme temperatures for a specified amount of time.

The chamber is made of high quality materials and is designed to withstand frequent use and extreme temperatures. It is also equipped with safety features such as overheat protection and power failure recovery, ensuring the safety of both the product being tested and the operator. The INFINITY IE31 Series Thermal Shock Test Chamber is a reliable and efficient tool for testing products and ensuring their quality and durability.

Product Application

The INFINITY IE31 Series Thermal Shock Test Chamber is suitable for a wide range of applications, including:

Electronics: testing the impact of temperature changes on electronic components and devices
Automotive: testing the durability of automotive parts and components under extreme temperature conditions
Aerospace: testing the reliability of materials and components used in aircraft and spacecraft
Pharmaceuticals: testing the stability and quality of medications and vaccines under extreme temperature conditions
Food and beverages: testing the shelf life and quality of food and beverages under extreme temperature conditions
And more...

Product Scene

The INFINITY IE31 Series Thermal Shock Test Chamber can be used in various testing facilities, laboratories, and production lines. It is also suitable for on-site testing and can be easily transported to different locations. With its compact and durable design, this chamber can be used in a variety of settings and environments.

Order Now

If you are in need of a high quality and reliable thermal shock test chamber, look no further than the INFINITY IE31 Series. With its advanced technology, precise temperature control, and durable design, this chamber is the perfect choice for all your testing needs. Contact us now to get a quote and place your order.

Model Number	Temperature Range	Temperature Fluctuation	Test Area Size	Power Supply	Coolants	Condenser System	Minimum Order Quantity	Price
IE31-80L	-40℃~+150℃	±1℃	W500H400D350mm	AC 220V 60/50Hz	Non-fluorine Environmental Refrigerant R404A R23	Air-cooled	1	Negotiate
IE31-150L	-55℃~+150℃	±1℃	W600H500D500mm	AC 380V 60/50Hz	Non-fluorine Environmental Refrigerant R404A R23	Water-cooled	1	Negotiate
IE31-225L	-65℃~+150℃	±1℃	W700H600D600mm	AC 380V 60/50Hz	Non-fluorine Environmental Refrigerant R404A R23	Water-cooled	1	Negotiate
IE31-408L	-75℃~+150℃	±1℃	W800H700D700mm	AC 380V 60/50Hz	Non-fluorine Environmental Refrigerant R404A R23	Water-cooled	1	Negotiate
IE31-1000L	-40℃~+200℃	±1℃	W1000H1000D1000mm	AC 380V 60/50Hz	Non-fluorine Environmental Refrigerant R404A R23	Water-cooled	1	Negotiate

Customization:

Certification: CE & ISO

For users of the product machine (or components), electrical appliances, instruments, materials, coatings, etc., for the corresponding climate change test, suitable for electrical, electronic, mechanical industries and other products, parts, materials, etc., high and low temperature, wet and thermal test, simulate temperature and humidity changes under the condition of cold and thermal shock test, so as to evaluate the quality of the test product.

Key words: Programmable Thermal Cycling Shock Test Chamber, Programmable Hot Cold Shock Test Chamber, Programmable Alternating Thermal Shock Chamber

Packing and Shipping:

Our thermal shock test chambers are carefully packaged to ensure safe and secure delivery to our customers. Each unit is packed in a sturdy wooden crate to protect it from any potential damage during transportation.

Inside the crate, the thermal shock test chamber is securely wrapped in protective foam and plastic to prevent any scratches or dents. The interior of the crate is also filled with cushioning material to absorb any shocks or impacts during transit.

For international shipping, our thermal shock test chambers are packed in compliance with all relevant export regulations. This includes proper labeling, documentation, and packaging materials to ensure a smooth customs clearance process.

Once packaged, our thermal shock test chambers are shipped via a reliable and reputable carrier to ensure timely and safe delivery. Tracking information will be provided to our customers so they can monitor the status of their shipment.

At company name , we take great care in packaging and shipping our thermal shock test chambers to ensure that they arrive at their destination in perfect condition. Customer satisfaction is our top priority, and we strive to provide the best possible service throughout the entire ordering and delivery process.

Models::	IE31 80L IE31 100L, IE31 150L, IE31 225L, IE31 408L	Refrigeration Compressor:	IE31 80L France Tecumseh Fully Closed Compressor ; IE31A 100L-408L Use German Bitzer Semi-compact Compressor
Equipment Overview:	For Users Of The Product Machine (or Components), Electrical Appliances, Instruments, Materials, Coatings, Coatings, Etc., For The Corresponding Climate Change Test, Suitable For Electrical, Electronic, Mechanical Industries And Other Products, Parts, Mate	Test Temperature Range:	-40°C~+150°C
Coolants:	Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic	Insulation Material:	Hard Polyurethane Foam Insulation Layer + Glass Fiber.
Inspection Window:	The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.	Outer Material Of The Chamber:	High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole.

Model	IE 3180L		IE 31100L		IE 31150L		IE 31225L	IE 31408L
Temperature Range	-40℃ ～ +150℃
Temperature Fluctuation	±1℃
Temperature Uniformity	≦2.0℃
Temperature Recovery Time	Within 5 min
Heating rate (heat storage area)	Up from RT to + 150℃ About 35m in is required				Up from RT to + 150℃ About 40m in is required
Cooling rate (cold storage area)	Down from RT to-40℃ Approximately 55min is required				Down from RT to-40℃ Approximately 60min is required
Internal box size: WxHxD(mm )	500x 400x400		500x 400x500		500x 600x500		500x750x600	600×850×800
Out chamber size: WxHxD(mm )	1480×1450 ×1950		1480×1485×2050		1500×1750×2150		1600×1900×2250	1800x2000x2500
Thermal insulation box	● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber.
Box door	Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature.
Observation window	A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.
Specimen holder	Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer.
Refrigeration Compressor	France Tecumseh fully closed compressor	France Tecumseh fully closed compressor			Half-compact compressor in Bizel, Germany	Half-compact compressor in Bizel, Germany		Half-compact compressor in Bizel, Germany
Cooling medium	Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic
Condenser mode	air-cooled	air-cooled			water-cooled	water-cooled		water-cooled
Safety protection device	Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection.
Power source	AC380V;50Hz;18KW			AC 380;V50Hz;18KW	AC 380;V50Hz;22KW	AC 380;V50Hz;22KW		AC 380;V50Hz;25KW
