| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE31A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. | Observation Window: | A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
|---|---|---|---|
| Machine Features: | GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu | Condenser Mode: | Water-cooled |
| Temperature Uniformity: | ≦2.0℃ | Temperature Fluctuation: | ±1℃ |
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 50m In Is Required Up From RT To + 150℃ About 55m In Is Required | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M |

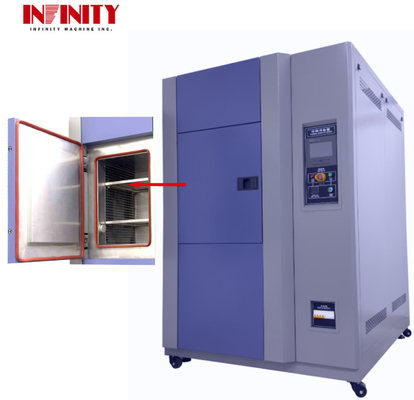

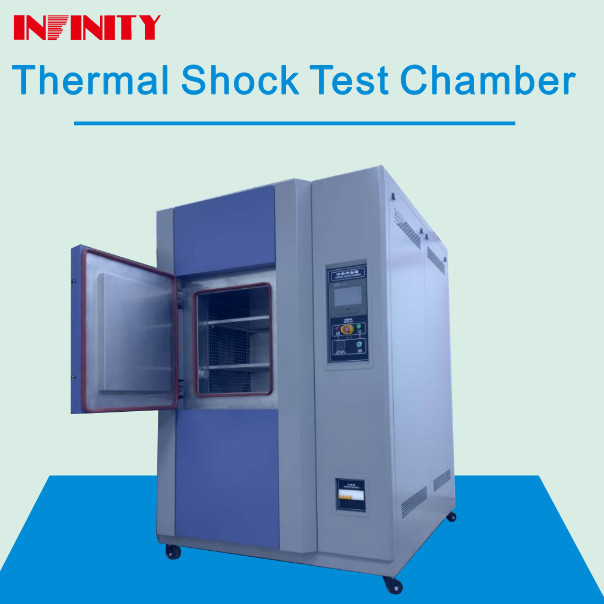

22KW AC 380 Thermal Shock Test Chamber Meets GJB150.5-86 And GJB360.7-87 Test Standards IE31A1
The Climate Thermal Shock Test Chamber is a highly advanced and efficient testing equipment designed for various home appliances. It is specifically designed to simulate extreme weather conditions and evaluate the performance of the products under such conditions. With its state-of-the-art technology and superior quality materials, this test chamber provides accurate and reliable results for various shower and waterproof testing requirements.
The Climate Thermal Shock Test Chamber is equipped with a powerful AC380V;50Hz;18KW power supply, ensuring stable and efficient operation. It also offers options for AC 380;V50Hz;22KW, and AC 380;V50Hz;25KW, providing flexibility to meet different testing needs.
A W 300 H 400mm observation window is installed on the door of the test chamber. This allows for clear observation of the testing process and makes it easier to monitor the samples. The multi-layer insulating electric thermal coated glass used in the window effectively provides heat preservation and prevents condensation, ensuring accurate observations.
The Climate Thermal Shock Test Chamber offers a temperature uniformity of ≦2.0℃, ensuring consistent and accurate results for every test. This feature makes it suitable for testing a wide range of home appliances under extreme weather conditions.
This test chamber is designed with a water-cooled condenser mode, which allows for efficient cooling and ensures stable temperature control during the testing process. This makes it ideal for long-duration tests without any interruptions or fluctuations in temperature.
The Climate Thermal Shock Test Chamber offers a wide temperature range of -65℃ to +150℃, making it suitable for testing products under extreme hot and cold conditions. This range covers a variety of weather conditions and ensures comprehensive evaluation of the product's performance.
| Model | IE31A180L | IE31A1100L | IE31A1150L | IE31A1225L | IE31A1408L |
| Temperature range | -65℃ ～ +150℃ | ||||
| Temperature fluctuation | ±1℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Temperature recovery time | Within 5Min | ||||
|
(heat storage area) |
Up from RT to + 150℃ About 50m in is required | Up from RT to + 150℃ About 55m in is required | |||
|
(cold storage area) |
Down from RT to-55℃ About 75min is required | Down from RT to-55℃ Approximately 75min is required | |||
|
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
|
Out box size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
|
Thermal insulation box |
● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
||||
| Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | ||||
| Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | ||||
| specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | ||||
|
Refrigeration compressor |
Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany | Half-compact compressor in Bitzer, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | ||||
| Condenser mode |
|
water-cooled
|
water-cooled
|
water-cooled
|
water-cooled
|
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | ||||
| Power | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Power: AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW
Test Standards: GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001； GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperature Shock Test; GJB367.2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box- -three-box Type; Meet The Standard IEC68-2-14_ Test Method Temperature Change.
Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic
Condenser mode: Water-cooled
Cooling Rate (cold storage area): Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required
The Climate Thermal Shock Test Chamber by Infinity, model number IE31A1, is a top-of-the-line environmental climatic cabinet designed for precise testing and quality control. Produced in China by a trusted tester equipment factory, this test chamber is perfect for a variety of applications and is used by many Environmental Test Chamber Manufacturers.
With its CE and ISO certifications, the Infinity IE31A1 is a reliable and high-quality product that meets international standards. The minimum order quantity for this product is 1, and the price can be negotiated according to the customer's needs. It is packaged securely with clear sheets, sponges, and wood cartons to ensure safe delivery.
The Climate Thermal Shock Test Chamber is designed with a powerful AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW power supply, making it suitable for a wide range of testing requirements. It also meets various test standards, including GB/T2423.1-2001 for low-temperature testing, GB/T2423.2-2001 for temperature change testing, and GJB150.3-86, GJB150.4-86, GJB150.5-86, GJB360.7-87, GJB367.2-87, and J / T10187-91Y73 for temperature shock testing. It also complies with the IEC68-2-14 test method for temperature change.
The Climate Thermal Shock Test Chamber uses a non-fluorine environmental protection refrigerant R404A R23, which is safe and non-toxic, in accordance with environmental protection regulations. It also has a water-cooled condenser mode for efficient cooling. The cooling rate for the cold storage area is approximately 75 minutes when going from room temperature to -55℃, making it a fast and reliable testing tool.
With a delivery time of 20-30 days and a supply ability of 200 sets per month, the Infinity IE31A1 Climate Test Chamber is a highly sought-after product in the market. Its powerful performance, reliable quality, and versatile applications make it a popular choice among Environmental Test Chamber Manufacturers and various industries.
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Box Door: Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature.
Heating Rate (heat storage area): Up From RT To + 150℃ About 50m In Is Required Up From RT To + 150℃ About 55m In Is Required
Cooling Rate (cold storage area): Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required
Temperature Uniformity: ≦2.0℃
Condenser mode: Water-cooled
Our company, Infinity, is a leading testing machine manufacturer in China. We offer a range of high-quality climate test chambers, including our Rain and Spray Test Chamber and Environmental Test Chamber. With our customized service, we can tailor our products to meet your specific needs and requirements. Our chambers are CE and ISO certified, ensuring top-notch quality and reliability. We have a minimum order quantity of 1 and offer competitive prices to negotiate. Our packaging is carefully designed to protect the chambers during transportation, and we guarantee a delivery time of 20-30 days after order confirmation. We accept various payment methods, such as TT, PAYPAL, and Moneygram. With a supply ability of 200 sets per month, we can meet your demands efficiently. Our chambers are equipped with a box door that can be opened independently, and a door frame heating wire to prevent condensation at low temperatures. The heating and cooling rates of our chambers are optimal, and the temperature uniformity is ≦2.0℃. Our condenser mode is water-cooled, ensuring efficient and reliable performance. Choose Infinity for all your climate testing needs, and experience exceptional quality and service.
Our Climate Thermal Shock Test Chamber is carefully packaged to ensure it arrives to you in perfect condition. We use high-quality materials to protect the chamber during shipping and to minimize any potential damage.
The Climate Thermal Shock Test Chamber is first wrapped in a layer of protective foam to prevent any scratches or dents during transit. It is then placed in a sturdy and durable wooden crate to provide additional protection.
The wooden crate is sealed with strong straps and undergoes a thorough quality check before being shipped out. This ensures that the chamber is secure and will not shift during transportation.
We offer various shipping options to meet your specific needs. Our standard shipping method is through a reliable freight carrier, who will handle the transportation of the chamber from our warehouse to your desired location.
For urgent orders, we also offer expedited shipping services such as air freight, which will ensure a faster delivery time. Please contact our customer service team for more information and pricing on expedited shipping.
Once the chamber has been shipped, we will provide you with a tracking number so you can monitor the progress of your delivery.
We take great care in packaging and shipping our Climate Test Chamber to ensure its safe arrival. If you have any concerns or questions regarding the packaging or shipping process, please do not hesitate to contact us.
