AC380V;50Hz;7KW AC 380;V50Hz;9KW AC 380;V50Hz;11KW AC 380;V50Hz;13KW AC 380;V50Hz;15KW
Application Standards:
GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment ___ Salt Spray Test Equipment GJB150.11A-2009 Environmental Test Method Of Military Equipment Lab
Equipment Design Principle:
The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Hum
Test The Valid Content Product:
150L 270L 576L 800L 1200L
Condenser Mode:
Air-cooled
Box Structure:
● Test Chamber Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Laboratory Outer Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Labo
150L Salt Spray Test Chamber With Imported CPVC Polyethylene Board Box Structure
Product Description:
Salt Spray Test Chamber (New)
Environmental Salt Spraying Tester for Corrosion Resistance Testing
The Salt Spray Test Chamber is a highly efficient and accurate equipment designed for conducting corrosion resistance tests on various materials. It is suitable for use in a wide range of industries, including electronics, military, and environmental testing.
Product Overview:
The Salt Spray Test Chamber is designed to simulate the corrosive effects of salt spray on materials in a controlled laboratory environment. It is an essential tool for evaluating the performance of materials and coatings in harsh outdoor environments, such as coastal and industrial areas.
Application Standards:
GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test
GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment
GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test
GBT2424.17-2008 Test Method For Salt Spray
GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method
GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method
GBT2423_4-2008 Test Method For Humid Heat Mixing
IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (sodium Chloride Solution)
IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray

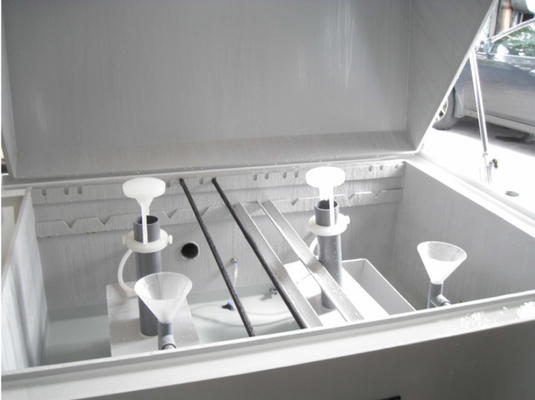

● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees.
● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device,
Convenient to observe the test, temperature resistance of about 120 degrees.
Water filling method
Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent.
● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing.
refrigeration compressor
France taikang fully closed compressor
cooling medium
Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
The Salt Spray Test Chamber is designed to better reproduce the corrosion that occurs in outdoor salt pollution environments. It provides a reliable way to assess the durability and performance of materials, coatings, and finished products.
Condenser Mode:
The Salt Spray Test Chamber features an air-cooled condenser, which ensures efficient and reliable cooling during the testing process.
Temperature Range:
The Salt Spray Test Chamber has a temperature range of 0℃ to +90℃, allowing for precise control of test conditions and accurate results.
Applications:

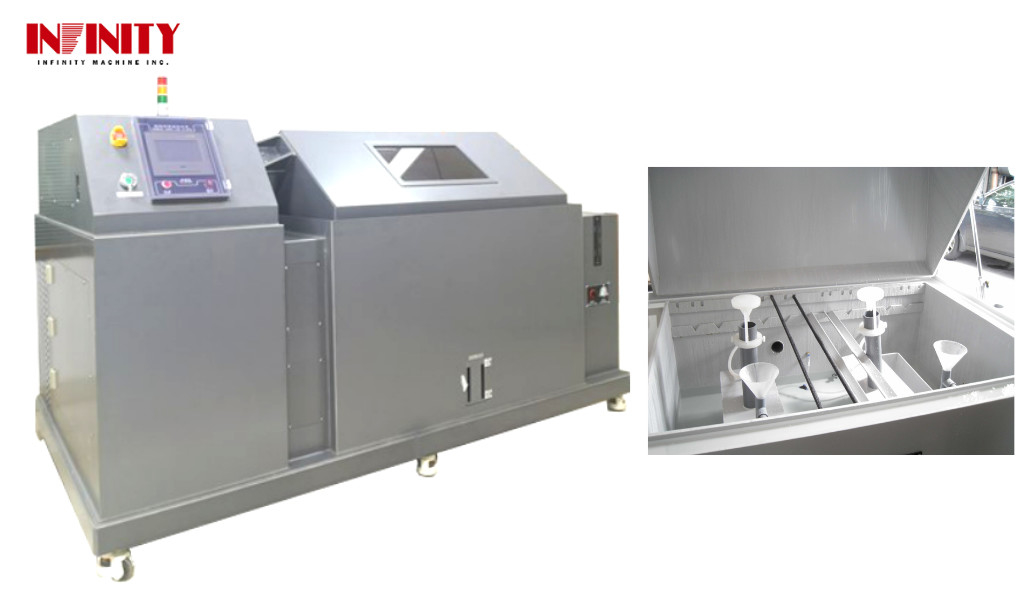

INFINITY - Salt Spray Test Chamber (New)
Introduction
The Salt Spray Test Chamber (New) by INFINITY is a state-of-the-art corrosion testing equipment used to evaluate the resistance of materials to salt spray corrosion. It is widely used in industries such as automotive, aerospace, electronics, and coatings to ensure the quality and durability of products.
Product Description
The Salt Spray Test Chamber (New) has a humidity range of 20~100%R.H with a humidity deviation of ±2%R.H. It also has a temperature uniformity of ≦2.0℃ to ensure accurate and consistent test results. The cooling medium used is a non-fluorinated refrigerant R404A that complies with environmental regulations, making it safe and non-toxic. The refrigeration compressor is a France Taikang Fully Closed Compressor, known for its high efficiency and reliability.
Application
The Salt Spray Test Chamber (New) is commonly used in the following industries:
Automotive – to test the corrosion resistance of car parts and coatings
Aerospace – to evaluate the durability of aircraft components
Electronics – to determine the reliability of electronic devices in harsh environments
Coatings – to assess the quality and longevity of different types of coatings
Product Features
The Salt Spray Test Chamber (New) boasts the following features:
Salt spray corrosion testing equipment
Salt fog spray test chamber
Salt spray corrosion test chamber
Salt corrosion resistance test chamber
Corrosion testing equipment
Salt spray test machine
Salt spray test cabinet
Salt spray test apparatus
Salt spray chamber
Corrosion resistance testing machine
Customization:
Customization Service for Salt Spray Test Chamber (New) by INFINITY
Brand Name: INFINITY
Model Number: IE 40 Series
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, and more
Supply Ability: 200 sets / month
Advantage: It can better reproduce the corrosion occurring in outdoor salt pollution environment.
Weight (Kg): About 300, About 400, About 500, About 600, About 700
Relative Humidity Fluctuation: ±2%R.H
Humidity Uniformity: ±3%R.H
Specimen Holder:
The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame.
The angle of the test product can be adjusted at will.
The number of test pieces on all sides is completely consistent.
The bottom of the test box has a uniform opening on the platform surface to quickly discharge the spray liquid.
Large samples can be placed on the platform for testing.
Keywords: Salt spray chamber with fog collector, Salt spray fog test chamber, Salt fog spray test chamber, Salt spray corrosion test chamber.
Packing and Shipping:
Packaging: wooden case li>
Shipping: By sea, air or express
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is INFINITY.
Q: What is the model number of this product?
A: The model number of this product is IE 40 Series.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product is certified with CE and ISO.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.
Q: How is this product packaged?
A: This product is packaged with clear sheet, sponge, and wood carton.
Q: How long does it take for this product to be delivered?
A: It takes 20-30 days for this product to be delivered after the order is confirmed.
Q: What are the payment terms for this product?
A: The payment terms for this product are TT, PayPal, Moneygram, and others.
Q: What is the supply ability for this product?
A: The supply ability for this product is 200 sets per month.
