| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE52 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1000~100000 PC |
| Packaging Details: | WOOD PACK |
| Delivery Time: | 15-25 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |

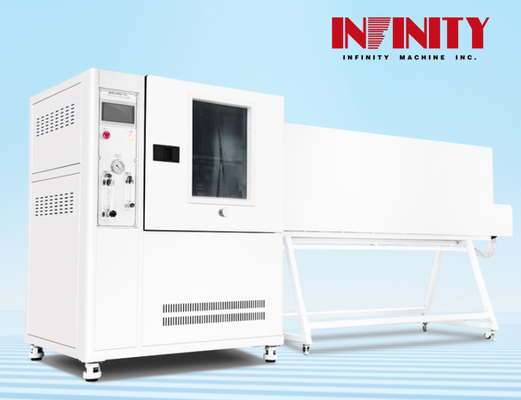

| Product Name: | IE52 IPX5 IPX6 Strong Waterproof Test Chamber For LED Light Rain Test Chamber Environmental Chamber Testing Services | Inner Box Size:（W*D*H）: | 1000* 1000* 1000mm |
|---|---|---|---|
| External Dimensions:（W*D*H）: | 1220*4040*1820mm | Turntable Diameter:: | ￠600mm |
| IPX5 Water Spray Hole Diameter:: | Dia 6.3mm | Total Equipment Mass Fluctuation: | IPX6 Water Spray Hole Diameter: |
| IPX5 Water Jet Flow：: | 12.5±0.625（L/min） | IPX6 Water Jet Flow：: | 100±5（L/min） |
| Maximum Load-bearing Capacity Of Turntable:: | 50KG | Spray Distance:: | About 2.7 Meters (the Distance Between The Nozzle And The Center Of The Turntable) |

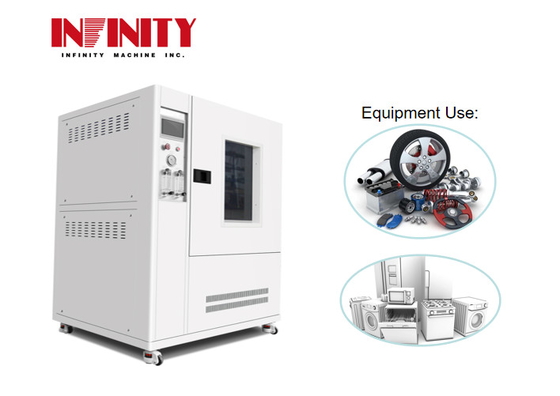

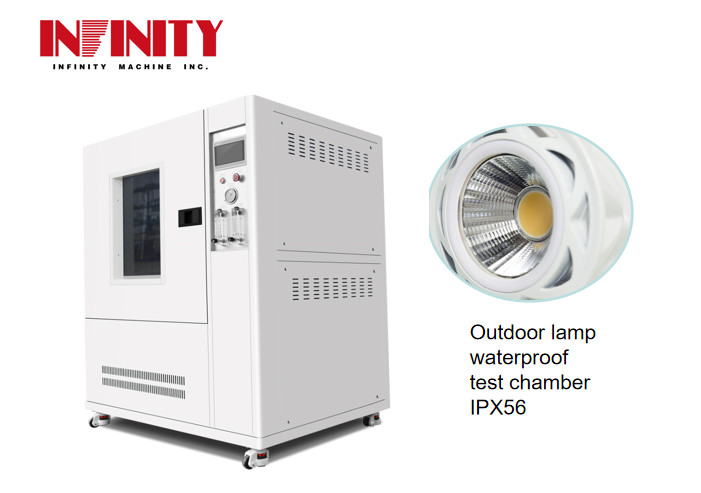

Application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main function of this equipment is to use it to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated water spray climate conditions. carry out testing. After testing, verification is used to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.
Implementation standards:
1.Suitable for IPX5 and IPX6 waterproof grade testing of products.
2.The integrated structure (the first in the industry) eliminates the need for operators to hold the spray gun for testing. The test can be started after fixing the sample.
3.The shell is made of domestic high-quality steel plates, and the surface is spray-painted, making it beautiful and durable.
4.The inner box and turntable are made of SUS304# stainless steel to ensure that they will not rust for a long time.
5.Turntable drive: Using domestic high-quality stepper motors, the speed and angle can be set (adjustable) on the touch screen, accurately and steplessly adjustable within the standard range, and can automatically control forward and reverse rotation (forward and reverse rotation: suitable for belts The sample is powered on for testing to prevent winding).
6.The water spray flow rate is adjusted by a flow meter (manual adjustment).
Specifications:
| Parameter | Value |
| Equipment external dimensions:(W*D*H) | 1220*4040*1820mm(Including water pipe) |
| Inner box size:(W*D*H) | 1000* 1000* 1000mm |
| Water tank capacity: | About 58L |
| Sample turntable size: | Dia 600mm |
| IPX5 Water spray hole diameter: | Dia 6.3mm |
| IPX6 Water spray hole diameter: | Dia 12.5mm |
| Function parameter: | |
| IPX5 Water jet flow: | 12.5±0.625(L/min) |
| IPX6 Water jet flow: | 100±5(L/min) |
| Flow control method: | Manual adjustment (rotameter) |
| Spray distance: | About 2.7 meters (the distance between the nozzle and the center of the turntable) |
| How to fix the spray gun: | Mechanical fixing (programming, adjusting spray gun angle) |
| Maximum load-bearing capacity of turntable: | 50KG |
| Turntable lifting range: | Not liftable (fixed) |
| Water spray method: | Circular water spray |
| Water, electricity and gas parameters | |
| Control System: | (Touch type) 7-inch touch screen + PLC |
| Power supply for test samples: | 220V |
| Equipment power supply: | 380V 50Hz 3.0KW(or specified) |
| Security protection functions: | Leakage protection, water shortage protection, short circuit protection |
| Water source requirements: |
Users are required to configure a water source for the equipment at the installation site, with the water pressure not less than 0.2Mpa, and install a 4-point faucet. The faucet should be no more than 2 meters away from the equipment.
|
Inner box pictures:
The swing pipe could be make as your size.
Our team carefully monitors the shipping process to ensure that our Rain Test Chamber arrives safely and in a timely manner. We also provide tracking information so our customers can keep track of their shipment.
For any questions or concerns regarding the packaging and shipping of our Climate Test Chamber, please contact our customer service team at sales@infinity-machine.com
