High Temperature Electronic Universal Testing Machine 20KN / 50KN Capacity

High Temperature Electronic Universal Testing Machine 20KN / 50KN Capacity

  • High Temperature Electronic Universal Testing Machine 20KN / 50KN Capacity
  • High Temperature Electronic Universal Testing Machine 20KN / 50KN Capacity
High Temperature Electronic Universal Testing Machine 20KN / 50KN Capacity
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE
Model Number: RS-8000GDW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max.Capacity: 50kN Max. Temp.: 200℃
Min. Temp: -70℃ Inner Chamber Dim.: W300×D350×600mm
Cooling Recycle System: 90W Motor Temperature Control Mode: P.I.D Self-adjusting Mode And SSR Control
Temperature Controller: Button Input, LED Digital Display Output Dimension: 950×800×2400mm, Or 1100x2000x2400mm
Weight: 295kg, Or 350kg Power: AC220V,12A, AC220V 30A Or Specified By User
High Light:

utm universal testing machine

,

computerized universal testing machine



High Temperature Electronic Universal Testing Machine 20KN / 50KN Capacity



Model: RS-8000GDW



Purpose:



Apply for tensile, compress, bending, peel, tearing, peeling, bursting, fatigue test on metal rod, metal plate, rubber, PU, leather, plastic, foam, sponge, water-proof material, cable, wire, fabric, nettle, non-woven, etc..



Metal high temperature tensile test

Metal low temperature tensile test

Rubber high & low temperature tensile test

Other material high & low temperature tensile test



Test standard:



GB/T4338-1995 ISO783:1989 Metal high temperature tensile test

GB/T13239-2006 ISO15579:2000 Metal low temperature tensile test

GB/T228-2002 ISO6892:1998 Metal room temperature tensile test



Specification:



 Model  RS-8000-GW  RS-8000-DW  RS-8000-CDW  RS-8000-GDW  RS-8000-CGDW
 Capacity  500N,1kN,2kN,5kN,10kN,20kN,50kN can option
 Resolution  1/500,000
 Load accuracy  ±0.25%F.S
 Test speed  range  0.001~500mm/min or 1~1000mm/min
 Temperature  range  Room tem.  ~  250℃  Room temp. ~  -40℃  Room temp. ~  -70℃  -40 ~ 150℃  -70 ~ 200℃
 Inner chamber  dimension  W300×D350×600mm
 Temperature  control accuracy  ±2℃
 Min. temperature  value  0.1℃
 Cooling recycle  system  90W motor, Stainless steel lengthen roller, multi-wing fan blade
 Heater  1000W×2 fin-style radiator tube stainless steel heater
 Thermal  insulation material  high temperature chamber: glass fiber; low temperature chamber, hard foam.
 Coolants  low temperature chamber, environmental coolants
 Chamber material  inner side will be SUS304# mirror, the outside will be cold steel plate with painting
 Temperature  control mode  P.I.D self-adjusting mode and SSR control
 Temperature  controller  button input, LED digital display output
 View window  double layer view window(180×220mm)
 Dimension  WxDxH (mm)  950×800×2400  1100x2000x2400
 Weight  295kg  350kg
 Power  AC220V,12A  1∮ AC220V 30A or specified by user



Picture:

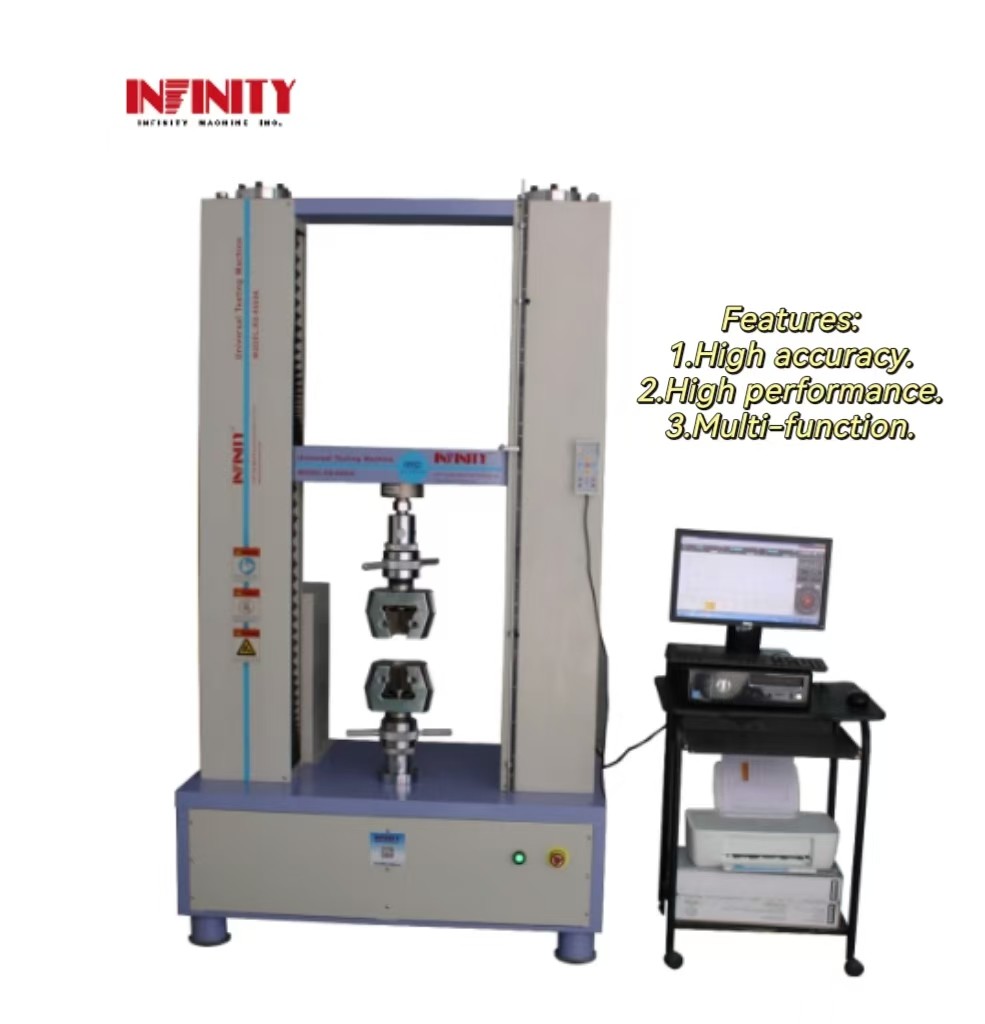

High Temperature Electronic Universal Testing Machine 20KN / 50KN Capacity 0
