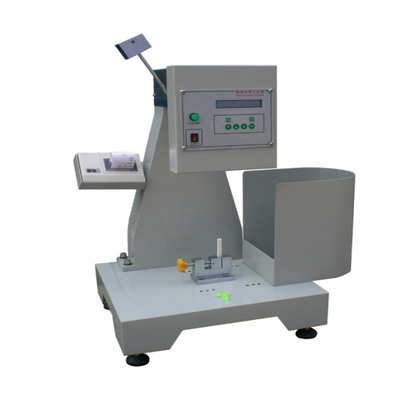

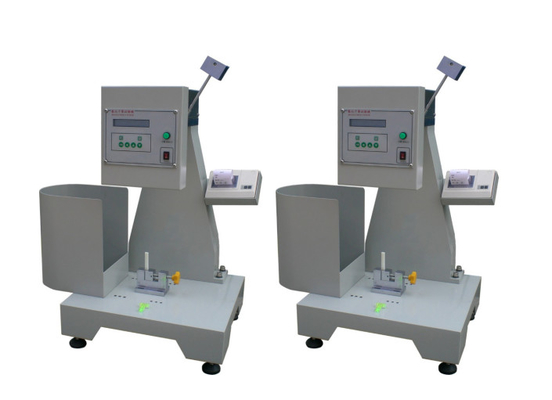

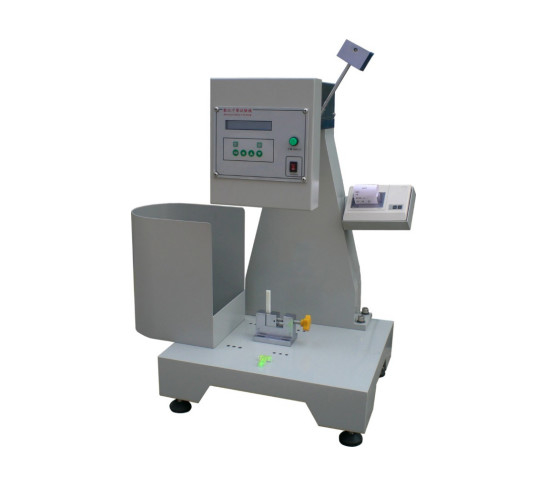

ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test

ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test

  • ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test
  • ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test
  • ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test
ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE UL
Model Number: ID6001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000~100000 PC
Packaging Details: inner box + master carton, wood pack
Delivery Time: 15-25 working days
Payment Terms: T/T,D/P,L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC PER MONTH
Contact Now
Detailed Product Description
Name: ID6002 IZOD Digital Impact Testing Machine Izod Impact Equipment Capicity: 1J, 2.75J, 5.5J Standard 11J, 22J Optional
Test Angle: 150° Impact Speed: IZOD: 3.46m/sec
Effective Length Of Pendulum: IZOD: 32.7cm Impact Angle Error: 0.1°
Energy Accuracy: 0.001 J Weight: About 90kg

ID6002 IZOD Digital Impact Testing Machine Izod Impact Equipment


ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test 0

Product Description:

Izod Impact Equipment is used to measure the impact resistance of various tough material specimens when subjected to impact at specific angles and loads.





Meet test standards:

IZOD: ASTM D256, ISO 180, GB/T 1843. JIS K7110



Features:

ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test 1

  • After the test, the results are automatically displayed and can be saved or printed
  • ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test 2
  • After the test, the angle and energy are automatically displayed
  • ID6002 IZOD Charpy Impact Testing Machine Charpy Pendulum Impact Test 3
  • Equipped with safety protection devices and buttons to control impact actions.





Technical Parameters:



Model ID6002
Capicity 1J, 2.75J, 5.5J Standard
11J, 22J optional
Test angle 150°
Impact speed IZOD: 3.46m/sec
Effective length of pendulum IZOD: 32.7cm
Impact angle error 0.1°
Energy accuracy 0.001 J
energy unit Kg-mm, kg-cm, kg-m, Ib-ft, Joule(N-m)
size(WxDxH) 680x410x760mm
Weight About 90kg
Working power supply AC220V 50Hz 3A or specify






Customized service

For more info ,or you want to customized a product, please feel free to contact Suki,thanks,





Suki Chan | Sales Rep.
Mobile/Whatsapp:+86-189-2293-3631
Tel:+86-(0)76987796906
https://www.tester-machine.com/
Infinity Machine International Inc
