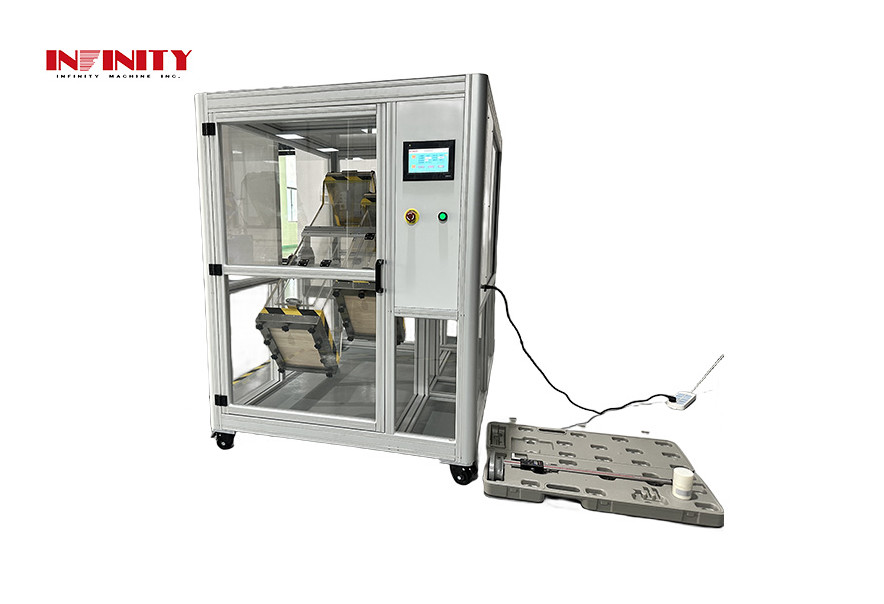

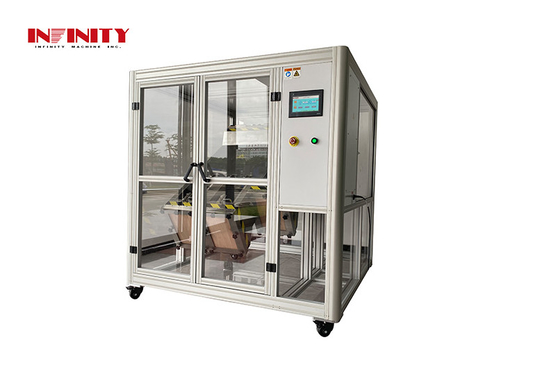

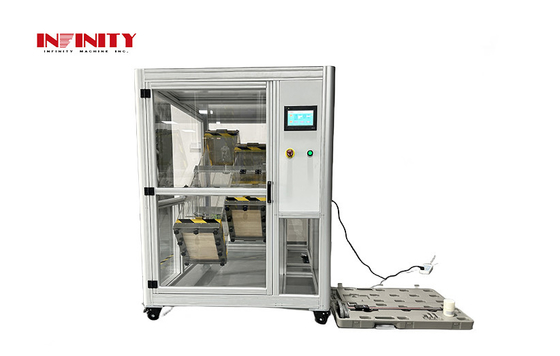

IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment

IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment

  • IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment
  • IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment
  • IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment
IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE UL
Model Number: IB1151
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000~100000 PC
Packaging Details: inner box + master carton, wood pack
Delivery Time: 15-25 working days
Payment Terms: T/T,D/P,L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC PER MONTH
Contact Now
Detailed Product Description
Name: IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment Implementation Standards:ion Standards:: IEC 60068-2-32；GB/T 2423.8-1995
Drop Height:: 500（1sets）1000mm（1sets） Maximum Weight Of Test Piece:: 5KG
Drop Frequency:: 1~40times/minCan Be Set Drum Width:: 300mm
Barrel Material:: Transparent Acrylic Falling Plank Material:: 3mm Thick Steel Plate + 19mm Thick Solid Wood Board (or Specified)

IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment

 IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment 0

Product Description:

This equipment is suitable for rotational drop testing of mobile phones, smart tablets, and various small portable electronic products to evaluate the product's ability to withstand rotational drops after multiple drops.


Features:

  • Designed with dual stations to meet simultaneous testing of 500 and 1000mm drop heights.
  • Using Panasonic servo motor drive to set the rotation speed, ensuring it can stop at any position with low noise and smooth operation.
  • Using touch screen control, the test times and test speed can be set, and it has a power-down memory function. It will automatically stop when the set number of times is reached.
  • Adopt safety door design: open the safety door, the drum stops running, and close the safety door before it can run.

Technical Parameters:





Parameters Value
Implementation standards: IEC 60068-2-32；GB/T 2423.8-1995
Drop height: 500(1sets)1000mm(1sets)
Maximum weight of test piece: 5KG
Drop frequency: 1~40times/minCan be set
Drum width: 300mm
Barrel material: Transparent acrylic
Falling plank material: 3mm thick steel plate + 19mm thick solid wood board (or specified)
Number of drops: 1~9999999Can be set
Machine size (WxDxH): W1445xD1560xH1650mm
Machine weight: 378KG
Working power supply: AC220V 5A 50Hz
equipment power 750Ｗ




Dimension Drawing:
IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment 1
