|Place of Origin:||Made in China|
|Brand Name:||Infinity Machine|
|Minimum Order Quantity:||1|
|Packaging Details:||Dust Resistance Test Equipment: Standard export wooden case with operation manual and video inside.|
|Delivery Time:||Dust Resistance Testing Machine: Shipped in 15 days after payment|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||Dust Resistance Test Machine: 50 sets per month|
|Product Name:||IP5X IP6X Dust Resistance Tester||IP Rating:||IP5X IP6X|
|Test Cabinet Size:||800x800x800mm||Temperature Range:||RT+10℃~70℃ (can Be Discussed)|
|Raining Force:||50um||Standard Spacing Between Wires:||75um|
|Talcum Powder Dosage:||2～4kg/m3||Dust Fall Method:||Dust Free Fall|
|Dust Used For Test:||Dry Talcum Powder||Power Supply:||AC220V 50Hz Or AC 120V 60Hz|
IEC60529 Dust Proof Chamber,
IP6X Dust Proof Chamber For Lab,
IP5X Dust Testing Equipment

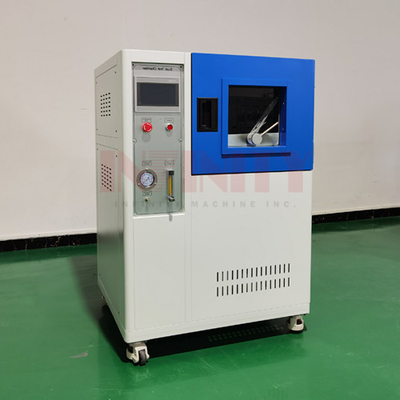

Dust resistantance testing machine is to test the physical and other related properties of products such as electronic & electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts & components under the climate conditions of simulated dust. After testing, verification is conducted to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and ex-factory inspection.
This dust resistantance test equipment is comply with the requirements of IEC60529:1989 A1: 1999 A2: 2013 Degrees of Protection Provided by Enclosures (IP Code), Clauses 13.4 & 13.5 and Fig. 3 of GB4208-2008 Enclosure Protection Class (IP Code), and Clauses 9.2.1 & 9.2.2 and Fig. 6 of GB7000.1 Luminaires Part I: General Requirements and Tests.
1. This lab powder testing machine is suitable for IP5X and IP6X dust-proof rating test for products.
2. The outer enclosure is made of domestic high-quality steel plate, and the surface is sprayed with baking paint, beautiful and durable.
3. Inner chamber and sample holder are made of stainless-steel plate to ensure long-term use without rust.
4. There is a transparent observation window (toughened glass material) on the door and an LED lamp installed in the chamber to facilitate the observation of internal testing.
5. The bottom of dust-proof testing equipment is has dust-replaceable device, which can replace used dust easily.
6. The working time is adjustable, and manual and auto mode operation can be alternated automatically.
7. There is a suction pipe in the chamber, which can evacuate the sample (sample is required to reserve suction hole ).
8. Heating system: the circulating air duct is equipped with a heater to heat dust so as to avoid dust condensation. Cladding type mica plate heating ring of the duct guarantees safe and stable heating; cladding type mica plate heating ring.
9. Vacuum system: equipped with vacuum pump, negative pressure meter, air filter, air flow meter, pressure-regulating triplet, connecting pipe.
10. Dust-proof test machine is more practical and easier to control on the basis of stable performance in all aspects on the premise of meeting national standards.
11. Dust resistance climate test machine is easy to install, easy to operate, and basically does not require daily maintenance.
12. IP5X IP6X dust climate chamber control system: can display year, month, day, time and working time, etc.; dust test system can control the dust blower, dust vibration and total test time separately; the controller has a variety of setting control functions as described below;
Ø Dust blowing time (stop and blow): arbitrary time set for continuous and periodic dust blowing;
Ø Vibration time: time of vibration and of stopping vibration are automatically alternated;
Ø Preset test time: the maximum test time is 99 hours 59 minutes;
Ø Power on: off - on - off.
|Products||Dust Resistance Environmental Test Chamber|
|Outer size||About L950 * D720 * H1500mm|
|Temperature range||RT+10℃~70℃(can be discussed)|
|Relative humidity||<30% (display or not is option)|
|Standard wire diameter of mesh mesh||50um|
|Standard spacing between wires||75um|
|Talcum powder dosage||2~4kg/m3|
|Velocity of powder outlet||6m/s|
|Dust used for test||Dry talcum powder|
|Dust fall method||Dust free fall|
|Total test time||0-999H (adjustable)|
|Vibration time||0-999H (adjustable)|
|Timing precision||±1 second|
|Vacuum degree||0-10Kpa (adjustable)|
|Evacuation rate||0-2,400L/H (adjustable)|
|Sample supply||Test sample power supply|
|Test sample power supply||AC220V 50Hz or AC120V, 60Hz single phase(option)|
|Equipment power supply||1.5KW|
|Safety protection function||Leakage protection, short circuit protection|
|1. How to choose the most suitable Dust Resistantace Testing Machine from INFINITY MACHINE INC.?|
Our professional team will provide specialized suggestion to you when we received your testing requirements.
|2. What’s the delivery term?|
At most of time, we have stock in the factory. If there is no stock, normally, the lead time is about 15-20 working days.
|3. Do you accept customization service?|
Yes, of course, we are not only offer standard machines, but also provide customized service according to your
request. If you have any testing requirements, please contact us.
|4. Can we visit your factory before order?|
Sure, we sincerely welcome you to visit our factory, if it is not convenient for you to visit our facotry, you could arrrange your friends to visit our company as well.
|5. Do you have customers in our country?|
Our equipment is not only sold in China (mainland, Hong Kong, Taiwan), but also sold to more than 70 countries, such as, The United States, Canada, Mexico, Germany, Britain, France, Italy, Sweden, Denmark, Poland, Portugal, the Netherlands, Ireland, Turkey, Hungary, Austria, Spain, Bosnia and Herzegovina, Romania, Bulgaria, Serbia, Belgium, Slovakia, Lithuania, Latvia, belarus, Russia, New Zealand, Australia, Vietnam, South Korea, Japan, Singapore, Malaysia, Thailand, the Philippines, the United Arab Emirates, Iran, Sudan, Kuwait, Saudi Arabia, Qatar, Uzbekistan, Lebanon, Sri Lanka, South Africa, Afghanistan, Botswana, Nigeria, Gambia, Namibia, Cameroon, Israel, Pakistan, Indonesia, India, Egypt, Brazil, Chile, Argentina, Colombia, Puerto Rico, Peru, Guatemala, Costa Rica, Uruguay and so on.
|6. How about your warranty?|
Generally, we will provide 12 months warranty for testing machines.
|7. How about the packing for testing machine, are there have safe protected during transportation?|
Usaully our equipment is packed by standard export wooden box, also, our products have been delivered to more than 70 countries, so we have rich experience to protect your machines.
|8. What is the order process?|
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging
- balance payment - packing - delivery - customer receiving - after service.
|9. How to install and use the testing equipments?|
|We will provide installation instructions to you, also, we will prepare user manual and operating video in English version for you. If you have any question about the machine, please contact us freely.
For more details about IN-IP56X-512L Dustproof Resistance Test Chamber, please send inquiry to us!
