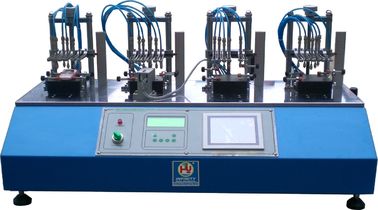

Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor

Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor

Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor
Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor
Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE
Model Number: RS-8330A-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Amount: 4 Pcs Test Load: 80gf~500gf Or 200gf~1000gf (or Specified)
Test Speed: 10~60 Cycles /min Counting Setting: 0~999,999 Adjustable
Dimension: 1100x400x570mm Weight: About 110kg
Air Source: ≧0.6MPa Power Supply: AC220V 3A Or Specified By User
High Light:

keyboard key tester

,

button pull test machine



Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor



Purpose:



Apply for keystoke ( buttons) life-time test for mobile phone, telephone, car entertainment devices, PDA, bluetooth/ earphone, Automobile TV remote controller, MP3/CD ,the other electronic products and so on.



Features:

  • The modes of sorting and same time clicking test can shift, and can simulate the real clicking condition for the key-clicking;
  • Adopt Japan SMC precise pneumatic component, hitting-strength is adjustable and long lifespan.
  • Adopt Mitsubishi touch LCD and PLC program controller.
  • Can test four sets mobile phone or other devices in the same time, any directions of the grips is adjustable, can satisfy to test keystoke of different kinds of products.
  • Can satisfy the testing of backside and front side of mobile phone, with hitting strength calibrating device which can response the anti-clicking ability of keystoke.





Specification:



 Model  RS-8330A-8B
 Testing cylinders with tips  8 pcs
 Pressing force

 If using Ø16 cylinder: force will be 5~50N, Ø10 cylinder:  force will be 2~25N
 Air cylinder stroke  15mm
 Testing speed  10~150 cycles /min
 Counting setting  0~999,999 adjustable
 Dimension (WxDxH)  1100x550x510mm
 Weight  About 105kg
 Air source  ≧0.5MPa
 Power supply  AC220V 5A or specified by user

Button Press Force Life Testing Machine Keystroke Tester For Mobile Phone Pad Bluetooth Monitor 0
