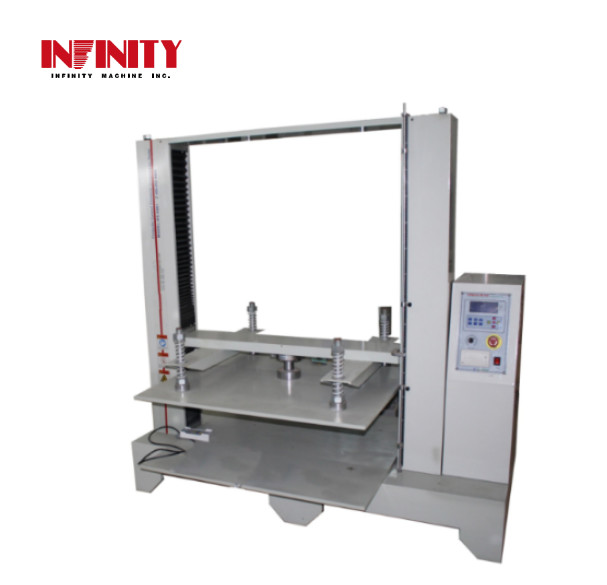

Package Box Compression Testing Equipment with AC Servo Motor

Package Box Compression Testing Equipment with AC Servo Motor

    • Package Box Compression Testing Equipment with AC Servo Motor
  • Package Box Compression Testing Equipment with AC Servo Motor

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-8401A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Capacity: 20KN 2T Load Resolution: 1/25,000
    Load Accuracy: ±1% Test Space: 1000x1000x1200mm
    Test Speed: 5~100mm/min Software: Microcomputer Control
    Motor: AC Servo Motor Power Supply: AC220V 5A Or Specified By User
    Weight: 1550kg Dimension: 1950x1200x2000mm
    High Light:

    packaging testing instruments

    ,

    packaging testing equipment



     Package Box Compression Testing Equipment with AC Servo Motor



    Model: RS-8401



    Purpose:



    This machine adopts AC inverter motor drive, belt + high-precision ball screw drive, drive the upper platen to complete the pressure operation, accurately enter the (load) condition of the specimen into the microcomputer processor for data processing by high-precision pressure sensor pressure, real-time display: compressive resistance, peak value of compressive resistance (maximum crushing force) displacement (deformation) maximum deformation (when the carton crushing deformation), and print the desired test data.



    Test standards:



    GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.



    Features:



    High stability:

    Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.



    High precision:

    Adopt highly precise explosion-proof loadcell,repeat tolerance: ±0.01%F.S.



    Professional control software:

    Servo motor control and computer professional software control. can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .



    Specification:



     Model  RS-8401A
     Capacity (optional)  20KN 2T
     Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2
     Load resolution  1/25,000
     Load accuracy  ±1%
     Load magnifying rate  stepless
     Test space  1000x1000x1200mm
     Test speed  5~100mm/min
     Stroke resolution  0.001mm
     Software  Microcomputer control
     Motor  AC motor
     Dimension (WxDxH)  1950x1200x2000mm
     Weight  1550kg
     Power supply  AC220V 5A or specified by user
