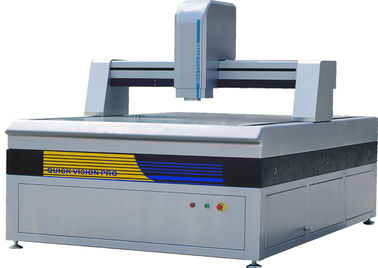

Double Column Optical Measurement Systems Automatic Zoom Lens H Type

Double Column Optical Measurement Systems Automatic Zoom Lens H Type

    • Double Column Optical Measurement Systems Automatic Zoom Lens H Type
  • Double Column Optical Measurement Systems Automatic Zoom Lens H Type

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RSH Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: 7 days after order confirmed
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 250 sets per month
    Contact Now
    Detailed Product Description
    Test Spee: MAX:800mm/s CCD: USA TEO High Resolution Colorful Industrial 800 TV Wire
    Varifocus Lens: 0.7-4.5X Full-automatic Zoom Lens Object Space: 10.6-1.6mm
    Working Space: 82mm Resolution Display: 0.0001mm
    Repetition: 1.5um Power Supply: 220V±10%(AC) 50HZ Current Over 20A Or Specified
    High Light:

    optical measuring instruments

    ,

    optical measuring machine



    Double Column Optical Measurement Systems Automatic Zoom Lens H Type



    Model: RSH Series



    Character (specimen stay and double column moving)



    1. Full automatic Double Column Type High Accuracy Video Measuring Instrument

    2. Machine base adopt marble (00 level), solid testing platform design, make sure high stability and rigidity.

    3. Adopt Japan THK grinding ball screw & THK precision guide rail, Panasonic high performance servo system full-closed control, high accuracy,

        high speed, high stability.

    4. Adopt USA TEO high resolution colorful industrial 800 TV wire on CCD.

    5. Make sure high quality testing image and quick testing speed.

    6. Full automatic zoom lens, no need to measurement after changing the lens zoom.

    7. Program tetracyclic eight zone LED surface cold light, direct-axis rim cold light, (coaxial cold light for option)

    8. Germany Heidenhain open type SMT optic scale 0.0005mm

    9. England Renishaw touchable measuring head (Auto probe SCR system for option) and Japan Keyence Laser probe.

    10. Powerful functional R&D full automatic 3D measuring software, can auto test by program.

    11. Video, probe, laser test coaxial, can auto test by program.

    12. Can option Z axis measuring range: 300-500mm



    Technical Parameter: H type use laser detector, T type used touchable detector



     Model Parameter

     RSH700  RSH1000  RSH1200  RSH1600  RSH1800  RSH2500
     Testing  range
     (mm)
     X  600  800  1200  1200  1200  1200
     Y  700  1000  1000  1600  1800  2500
     Z  200  200  200  200  200  200
     Testing  platform
     (mm)
     Hard  aluminum  alloy  platform  900x800  1193x1010  1540x1240  1820x1440  2020x1440  2700x1700
     Glass  platform  870 x870  1168 x968  1500 x1200  1780 x1400  1980 x1400  2650 x1650
     Load  50kg  50kg  50kg  45kg  45kg  40kg



     Video &

     measuring

     system

     Test speed  MAX:800mm/s
     CCD  USA TEO high resolution colorful industrial 800 TV wire
     Varifocus lens  0.7-4.5X full-automatic zoom lens

     Video

     amplification rate

     30-230X
     Object space  10.6-1.6mm
     Working space  82mm
     Resolution display

     0.0001mm



     Working control system, four axis full closed-loop control, three axis AC servo motor full closed-  loop control, pre-pressing linear slider and grinding ball screw driver, step motor coaxal controlling  lens.
     Repetition  1.5μm

     Measuring

     accuracy

     XYZ axis ≦(1.5+L/150)um, Z axis(optical measuring)≦(5+L/200)um

     Dimension

     (mm)

     1600x1300

     x1780

     1900x1450

     x1780

     1900x1900

     x1780

     2500x1900

     x1780

     2700x1900

     x1780

     3400x2100

     x1780

     Machine

     weight (kg)

     1800kg  2600kg  3200kg  3900kg  4200kg  5100kg
     Light  tetracyclic eight zone LED surface cold light, direct-axis rim cold light, (coaxial  cold light for option), brightness can be set
     Power supply  220V±10%(AC) 50HZ current over 20A or specified by user
     Warranty  two years
