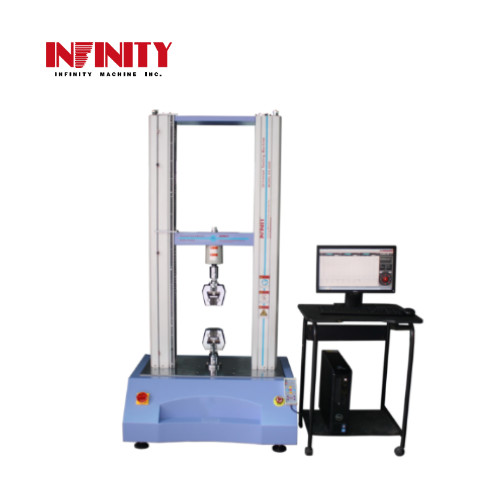

High Accuracy 50KN Compression Test Equipment / Universal Test Machine

High Accuracy 50KN Compression Test Equipment / Universal Test Machine

  • High Accuracy 50KN Compression Test Equipment / Universal Test Machine
  • High Accuracy 50KN Compression Test Equipment / Universal Test Machine
High Accuracy 50KN Compression Test Equipment / Universal Test Machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max. Capacity: 50KN Max. Stroke: 1000mm (optional)
Effective Width: 400mm, 500mm (optional) Software: Standard Control Software
Motor: AC Servo Motor Weight: 345 Kg
Dimension: 830x670x1940mm Power Supply: AC220V 10A Or Specified By User
High Light:

compression test equipment

,

digital compression testing machine


High Accuracy 50KN Compression Test Equipment / Universal Test Machine


Model: RS-8000

Purpose:

This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.
Computer control style RS-8000 ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).


Applications:



Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.


Features:


High accuracy:

Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.



High Accuracy 50KN Compression Test Equipment / Universal Test Machine 0



Language of software: English



Superior software program:

Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also had many kinds of analysis curve: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve.



Multi-function:

Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, etc can be done.


Specification:


 Model  RS-8000
 Capacity (optional)  100N, 200N, 500N, 1, 2, 5, 10, 20, 50KN
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
 Load resolution  1/500,000
 Load accuracy  ±0.25%
 Load range  Rangless
 Stroke (exclude the grips)  800mm,1000mm (optional)
 Effective width  400mm, 500mm (optional)
 Test speed  0.001~500mm/min
 Speed accuracy  ±0.5%
 Displacement resolution  0.001mm
 Software  Closed-loop control software
 Motor  AC servo Motor
 Transmission rod  High accuracy ball screw
 Main unit dimension (WxDxH)  830x670x1940mm
 Main unit weight  345 Kg
 Power Supply  AC220V 10A or specified by user


Package:

High Accuracy 50KN Compression Test Equipment / Universal Test Machine 1High Accuracy 50KN Compression Test Equipment / Universal Test Machine 2

High Accuracy 50KN Compression Test Equipment / Universal Test Machine 3High Accuracy 50KN Compression Test Equipment / Universal Test Machine 4

High Accuracy 50KN Compression Test Equipment / Universal Test Machine 5High Accuracy 50KN Compression Test Equipment / Universal Test Machine 6
