Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m

Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m

  • Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m
Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-6300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Testing Range: W450x D No-limit X H300mm Max Testing Torsion: 2N.m / 5N.m / 10N.m
Min. Display Torsion: 0.01N.m Min. Angle Display: 0.01
Testing Speed Range: 1~72000/min Dimension: 420×320×1150mm
Weight: 65kg Power Supply: AC220V,5A Or Specified
High Light:

torsional testing machine

,

torsion spring tester



Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m



Model: RS-6300D



Application:



This torsion testing machine is suitable for the torsion testing for all kinds of electronic products and the hinges. Can measure the torsion of positive rotation and reverse rotation, and have the software to create the curves of testing, and can record the testing data, the curves.



Specialties:



The testing conditions are set by computer (the angle testing range, the original point of stroke, testing speed, testing cycles, the pause time, to hold the time for the testing and so on)



Can print and save the testing data and curves (Torsion vs angle, Torsion damping curve)



The title, products spec, testing date, operator, file No in the testing report are editable.



The testing chart is Microsoft Access editing format, input the testing data automatically and can save or print.



It can automatically judge the pass or failure for the testing according to the set upper and lower limit value, and then create the current testing data, such as the Max torsion, Min torsion, Ave. value, ETC, and create the corresponding curves.



The torsion damping curve and report: to display torsion value changing vs the testing cycles increase.



To adopt the Panasonic servo motor for the driving, has the 2500R high pulse encoder, can make sure the right location precisely, and low noise ,higher torque, can satisfy long time running .



Adopt the special auto-centering device, can auto correct and reduce the tolerance when the specimen isn’t installing at the centre of the axis in the testing.



Specification:



 The testing range  W450x D no-limit x H300mm
 Max testing torsion  2N.m,5N.m,10N.m(optional )
 Min. display torsion  0.01N.m
 Min. Angle display  0.010
 Rotation angle  No limit
 Testing speed range  1~72000/min(Meet Amazon requirement :1~2sec reach 1.5N.m)
 Size  W420×D320×H1150mm
 Weight  65kg
 Power supply  1∮,AC220V,5A or specify by customer



Picture:

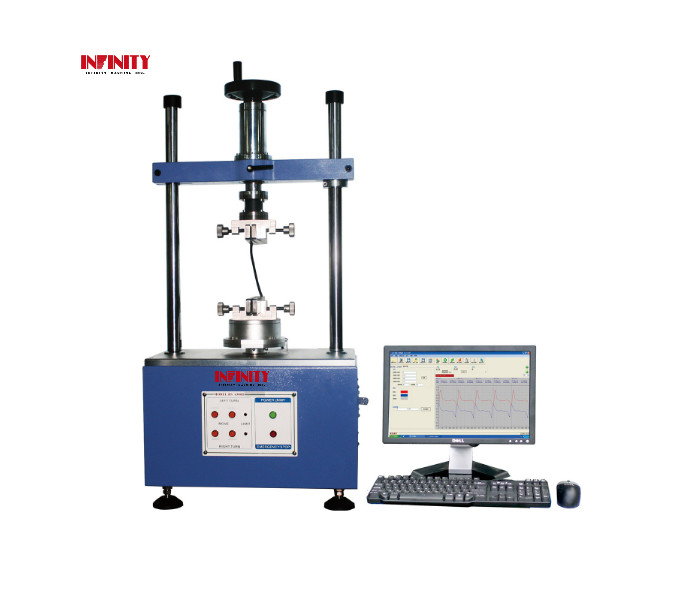

Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m 0



Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m 1



Professional Knob Torsion Testing Machine Digital Display 2N.m / 5N.m 2
