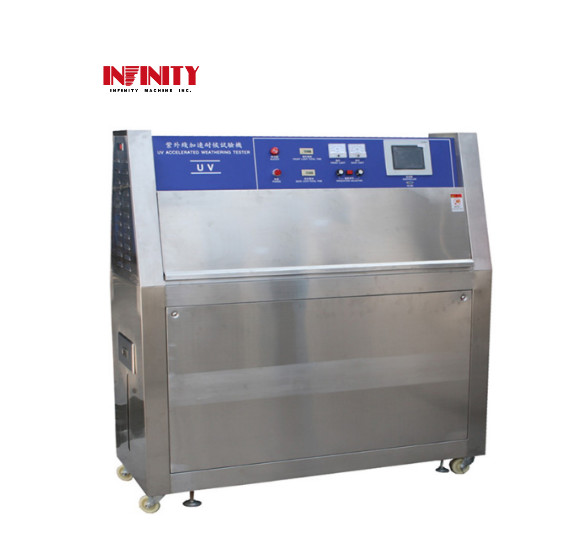

UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3

UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3

UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3

Product Details:

Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: Z-UV

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Temp-range: RT+10℃~70℃ Humid-range: 90% RH ~98% RH
Lamps Type: UV-A, 40W / UV-B, 40W UV Light Wavelength: 315~400nm/280~315nm
Light Size: W450xH260mm Power Supply: AC220V 50Hz 3KW Or Specified By User
Main Unit Dimension: 580x280x1450mm Main Unit Weight: 130 Kg



UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3



Model: Z-UV



Purpose:



Plastic Testing Machine adopts fluorescent lamp simulating the UV spectrum of sun shine, combined with temperature control, humidity system. It can simulates various of conditions such as temperature, shining strength and humidity to evaluate the breakage, peeling, pulverization, oxidization of the specimen.



Standard:



This UV accelerating weather tester is suitable for liable tests in lots of industries. It is according to below standard to make, GB/T14522-93,GB/T16585-1996 and GB/T16422.3-1997; And complied with international testing standards as:ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;EN 1062-4, BS 2782;JIS D0205;SAE J2020.



Features:



This machine provides good UV simulation, low maintance cost, easy operation. It runs itself by programme automatically with stable light.



Specification:



 Model  Z-UV
 Temperature range  RT+10℃~70℃
 Humidity range  90% RH ~98% RH
 Distance between lamps  70±2mm
 Distance between specimen and lamp  50±2mm
 Lamps type  UV-A, 40W / UV-B, 40W
 UV light wavelength  315~400nm/280~315nm
 Standard test shelf  75x300mm(3x12”)/23 or 100x300mm(4x12”)/15
 Lamps amount  8 sets
 Nozzle:  12 pieces
 Light Size:  W450xH260mm
 Main unit dimension (WxDxH)  580x280x1450mm
 Main unit weight  130 Kg
 Power supply  AC220V 50Hz 3KW or specified by user



Internal structure:



UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3
