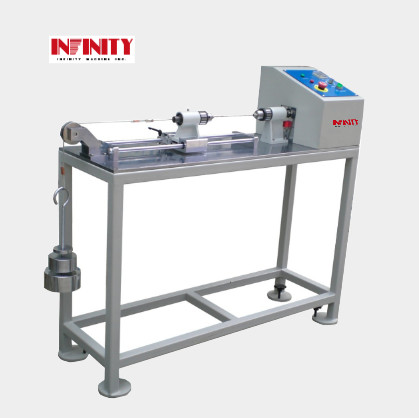

Computerised Torsion Spring Tester 360° ASTM A 938-2004 Electric Type

Computerised Torsion Spring Tester 360° ASTM A 938-2004 Electric Type

  • Computerised Torsion Spring Tester 360° ASTM A 938-2004 Electric Type
Computerised Torsion Spring Tester 360° ASTM A 938-2004 Electric Type
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8108
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Counter: 1 Pc Applied Tensile Force: 4~111N
Torsion Angle: 360° Torsion Speed: 10~60rpm (adjustable)
Spacing Of Grips: 203~500mm (adjustable) Weight: 115kg
Dimension: 1300x520x1200mm Power: AC220V,3A Or Specified By User
High Light:

torsional testing machine

,

torque testing machine



Computerised Torsion Spring Tester 360° ASTM A 938-2004 Electric Type



Model: RS-8108



Purpose:



This tester is suitable for the twist strength testing of metal wires and the cable isolation layer, put one end of specimen on the fixture and fix it, and twist another end of the specimen till the specimen is broken, and collect the cycles of twisting.



Standard: ASTM A 938-2004



Specification:



 Model  RS-8108
 Test counter  1 pc
 Applied Tensile Force  4~111N
 Torsion angle  360°
 Torsion speed  10~60rpm (adjustable)
 Spacing of grips  203~500mm (adjustable)
 Set counter  1~999,999times (can set)
 Weight  115kg
 Dimension (WxDxH)  1300x520x1200mm
 Power  AC220V,3A or specified by user
