| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-5600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Testing Stroke: | 2~20mm Or Specified By User | Load: | 80~1000gf |
|---|---|---|---|
| Poise: | 10, 20, 50, 100, 200, 500kgf | Testing Speed: | 10~60 Times/min （digital Display） |
| Abrasion Medium: | Ethanol, Eraser，Pencil | Dimension: | 530x490x850mm |
| Weight: | 45kg | Power Supply: | AC220V 50Hz 5A Or Specified By User |
| High Light: | martindale abrasion tester,rotary abrasion tester |
||

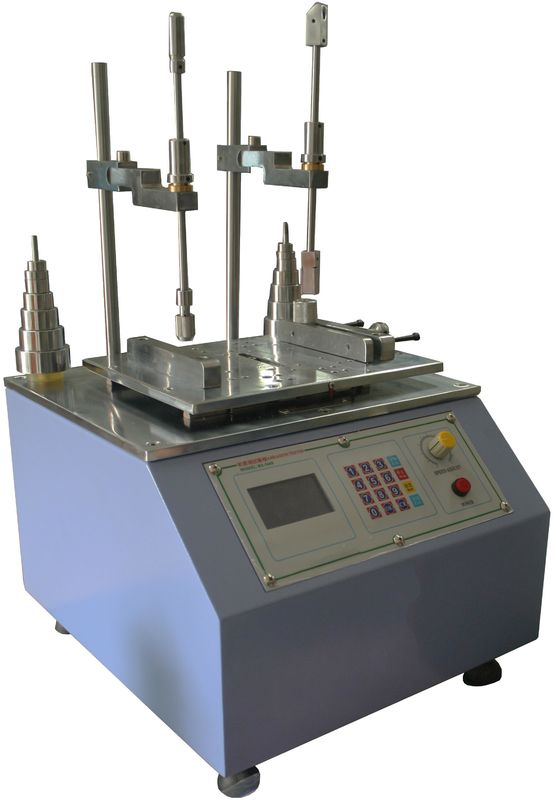

Coating Abrasion Testing Machine Abrasion Resistance Test Precision Component
Model: RS-5600
Application:
Apply for abrasion test for coating surface or silkscreen printing of mobile phone, computer ETC electronic devices, to check the anti-abrasion ability and the adhesive ability of coating or silkscreen printing.
Feature:
Can test abrasion (with alcohol/eraser),and hardness test with pencil drawing at the same time.
With many tester cap, jig, suitable for testing mobile and laptop computer and so on.
Digital display for speed, times, can adjust the stroke under non- stop working.
Adopt Japan precision component, low noise, durable using.
Japan Mitsubishi LCD touching screen control.
Specification:
| Model | RS-5600 |
| Testing stroke | 2~20mm or 5~50mm or Specified by user |
| Load | 80~1000gf |
| Poise | 10, 20, 50, 100, 200, 500kgf |
| Max supporting weight on table | 5kgf |
| Testing speed | 10~60 times/min (digital display) |
| Counter | 1~999,999times(can be set) |
| Abrasion medium | Ethanol, eraser,Pencil |
| Dimension (WxDxH) | 530x490x850mm |
| Weight | 45kg |
| Power supply | AC220V 50Hz 5A or specified by user |
