100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy

100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy

    • 100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy
    • 100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy
  • 100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-5610R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Test Sample: CTP Screen 1pcs Or 2pcs X Axis Movement Range: 0~480mm (about 19")
    Y Axis Movement Range: 0~300mm ( About 12") Z Axis Movement Range: 0~50mm
    Data Acquisition Frequency: 100kHz, 200kHz, 400kHz Settable Dimension: 1580x1100x1520mm
    Weight: About 650kg Power Source: AC220V 10A Or Specified By User



    100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy

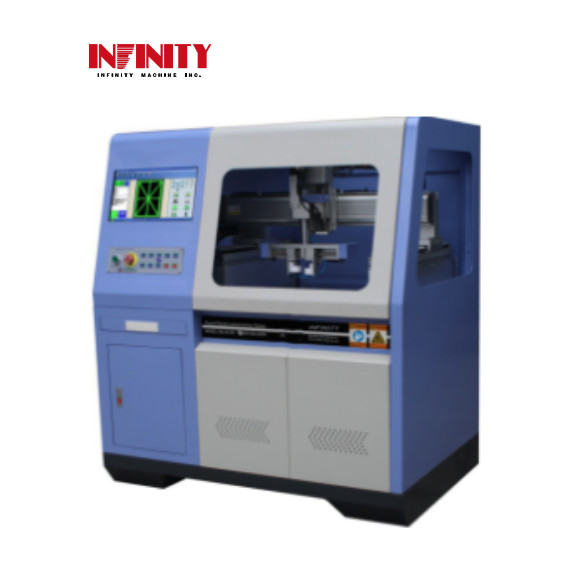

    Model: RS-5610R



    Purpose:



    The Multifunctional touch panel tester independently researched, developed and manufactured by our company is a high-tech product integrating movement control, data collection, analysis and statistical technology, the core of which is the program of [ touch panel control system] for testing. It has the advantages of strong function, simple programming, convenient operation and low price etc. It is applicable for CTP touch screen, infrared screen, complete machine manufacture (mobile phone and computer etc.) product research and development and product detection.



    Patent No: ZL2011 2056 1683.X



    Test Items:





    100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy



     1. Meet various performance tests of CTP factory to the panels, change different communication protocol ports to rapidly realize the panel tests

         of different IC; meet complete machine tests of mobile phone and tablet computer etc., transmit the test data to computer software through

         WIFI for data acquisition, analysis and counting and generate PDF and EXCEL test reports;



     2. Click accuracy test-multi-point click in any position of the test area according to different requirements of customers, test the position deviation

         of each point and support two-point click simultaneously to truthfully test the treatment capacity and accuracy of the product;



     3. Marking linearity test-support many images such as parallel lines, vertical line, diagonal and circular arc to detect the linearity deviation of the

         product. It can set line distance, number and arc size at will within the test area and support more support methods such as two-point marking

         simultaneously and two-point circular marking to meet more accurate product representation characteristics;



     4. Sensitivity test-it can set different marking locus to realize contact marking or non-contact marking, the height of touch pen to the product can

         be set and adjusted and the contact control height can be automatically found;



     5. Coordinate jittering test-it can set many test graphs in the test area and read the data of each time for many times and calculate the deviation

         value;



     6. sliding reliability test: it can set many test graphs in the test area and sliding according to the specific time and sequence to judge whether there

         is line disconnection in test;



     7. Signal-to-noise test: by multi-point click test of product, it can acquire the signal value acquired by IC and calculate the signal-to-noise ratio;

         (support of IC protocol is needed)



     8. Positioning frequency test-it can touch and control the product in central position of the test area and acquire data for many times to calculate the

         frequency for data to send data;



     9. Response time test: click in any position of the test area and controls the touch panels and calculates the response time of product to support

         multi-point response time test;



     10. Power consumption test: test the static and dynamic power consumptions of the product with high-accuracy miliwatt-level power test module;

           (support of IC protocol is needed)



     11. With strong database function, it can rapidly analyze the collected data to realize linking of graph with data, and automatically generate various

           test reports. These reports may be changed according to the requirements of different users.



     12. With software foolproof capacity, authorization setting and one-key test, it is easy in operation and can automatically judge PASS OR FAIL

           according to the set index (deviation value) after test;



     13. Separation degree test: realize separation and closing actions of two touch pens, the two touch pens can realize parallel separation and closing,

           vertical separation and closing and 45° separation and closing. Move the touch pens to detect the minimum operation space between two points

           of the products, use different colors to mark the actual graph and touch screen to feed back the locus of marking graph, 9 finger Gesture

           Simulating Testing inside the System.



    Specification:



     Model  RS-5610R
     Test sample

    CTP screen 1pcs or 2pcs (it can be tested separately or two samples are tested by turn)

     X axis movement range  0~480mm (about 19")
     Y axis movement range  0~300mm ( about 12")
     Z axis movement range  0~50mm
     Positioning accuracy control  ±0.001mm(±0.00004")

     X-Y axis repeated positioning accuracy

     ≤0.01mm(≤0.0004")
     X-Y axis movement speed  0~500mm/sec
     Z axis movement speed  0~200mm/sec

     Z axis repeated positioning

     accuracy

     ±0.02mm
     Integrated weight load  30g, 150g, 250g
     Test head diameter  Ø3~ Ø15mm changeable
     R axis rotation speed  2~5sec/360°

     The max stroke of separating axis A  and B ends

     100mm or 170mm

     Separation speed of A and B ends

     1~50mm/sec

     Analogue & digital power supply

     voltage range

     DC1.2V~5V

     Analogue &digital power supply

     voltage accuracy

     ±0.02V

     Power consumption current

     detection range

     0~500mA

     Power consumption power detection  accuracy

     ±1mW
     Data acquisition frequency  100kHz, 200kHz, 400kHz settable
     Communication protocol  I2C bus, serial port, USB (the customer provides  communication  protocol and we make  communication plate acquisition data)
     Dimension ( WxDxH )  1580x1100x1520mm
     Weight  About 650kg
     Power source  AC220V 10A or specified by user



    Control software:



    100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy



    100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy



    100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy



    Test data report, support PDF and Excel



    100mm / 170mm Infrared Touch Panel Tester 6 Axes With High Accuracy



    Meet tests such as capacitance touch panel accuracy, jittering, linearity and sensitivity (the standard test graph program has been built-in).
