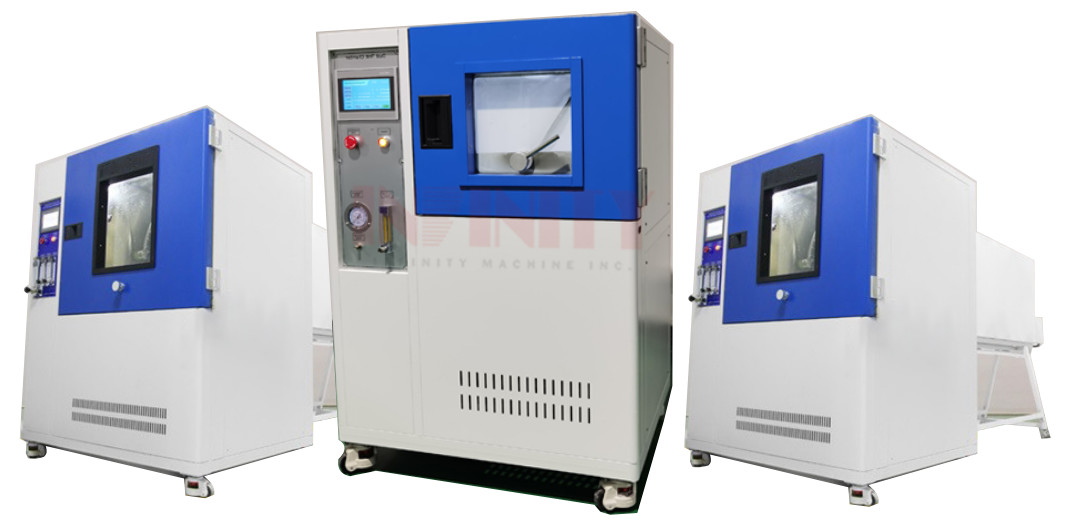

125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008

125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008

  • 125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008
  • 125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008
  • 125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008
  • 125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008
125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: ISO
Model Number: IN-IPX56-125L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Water jet testing machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Water Spray testing chamber: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Water jet testing chamber: 50 sets per month
Contact Now
Detailed Product Description
Product Name: IPX5 IPX6 Water Spray Tester Test Cabinet Size: 500x500x500mm
IPX5 Diameter Of Spray Hole: 6.3mm IPX6 Diameter Of Spray Hole: 12.5mm
IPX5 Spray Flow: 12.5±0.625L/min IPX6 Spray Flow: 100±5L/mi
Max Load: 50kg Sample Power Supply: AC220V 50Hz Or Specified By User
Power Supply: AC380V 50Hz Or Specified By User Test Standard: IEC60529:1989, GB4208-2008
High Light:

IPX6 Climate Test Chamber

,

IPX5 Climate Test Chamber

,

125L Water Spray Test Chamber

Water Jet Tester 125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008



IPX5 IPX6 Water Jet Climate Test Machine



Application:

Water spray testing machine is to test water resistance and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and related parts and components under simulated climatic conditions. To verify whether the performance of the product meet the requirements.

125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008 0



Features:

  • Water spray test machine is suitable for IPX5, IPX6 rating test.
  • The outer housing of spray test machine is made of high-quality steel plate, and the surface is painted with baking varnish, which is good looking and durable.
  • Inner box, rotary table, swing pipe are made of SUS304# stainless steel to ensure long-term use without rust.
  • Box-type structure; self-contained water tank, circulating water; equip with water tank float valve to control water inflow automatically, with low water level alarm detector.
  • A transparent observation window (tempered glass material) on the door, and LED lighting inside of chamber for watching during testing.
  • IPX5&6: According to the specifications of IEC60529 (as shown below):

125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008 1

  • Filtration measures: high-precision filter can effectively filter impurities in tap water; it can be replaced regularly.
  • Rotary Table Drive: Adopt high-quality stepper motor, speed and angle can be set on the touch screen (adjustable), accurate stepless adjustment within the standard range, and can automatically control the positive and reverse rotation (positive and reverse rotation: suitable for sample test with power to prevent winding).
  • Water jet test machine is equipped with a sample power socket. The sample power supply can be controlled by the program: power off (0-999min) - power-on (0-999min) - power off (0-999min), suitable for samples that need to be power on and power off alternatively during testing.
  • The test time of water spray test equipment can be set on the touch screen. The setting range is: 0-999min (adjustable).
  • The main control system adopts Taiwan Weilun 7-inch touch screen and Panasonic PLC. The electrical components adopt famous brands such as LS and Omron. The wiring process conforms to the requirements of national standards. The layout of the electric board is reasonable, the wiring is firm and the marking is clear.
  • Water spray testing machine is equipped with an in-line spare parts box, which is supply with common spare parts (such as hex screwdriver, filter element, needle, etc.), which is convenient for users to keep and use.
  • The spray gun can swing up and down and table is rotating, it can achieve full spray on the sample surface.



Standard:

This water jet climate tester is complied with IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008“Enclosure Protection Level (IP Code)" 14.2.5, 14.2.6,GB7000.1.





Specification:



Products IPX5 IPX6 Waterproof Testing Machines
Model IN-IPX56-125L
Inner Size L500*D500*H500mm
Outer Size About L3300*D850*H1300mm(Include water conduit)
Max load of rotary table 50KG
Testing Time 0-999 min
Diameter of spray hole IPX5 is 6.3mm, IPX6 is 12.5mm
IPX5 spray flow 12.5±0.625L/min
IPX6 spray flow 100±5L/min
Water Pressure(Mpa) Adjust according to the specified water flow
Fixing method of spray gun Mechanical fixing
Equipment power supply AC380V, three phase, 50Hz, 3.0KW
Sample power supply AC220V, single phase, 50Hz, 10A
Safety function Leakage protection, water shortage protection, short circuit protection
Temperature:5°C~35°C; Relative Humidity:≤85%; Air Pressure:86kPa~106kPa

The following conditions are guaranteed by the user and the corresponding connection is completed:

1.The ground is level, ground and walls are waterproofed with floor drain or gutter, well ventilated;

2.Ground loading capacity is not less than 200kg/m2;

3.No strong vibration around the device;

4.No strong electromagnetic field around the device;

5.No flammable, explosive, corrosive substances and dust around the equipment;

6.Appropriate use and maintenance space is left around the equipment:

Rear side, left and right side, top of the equipment: 800mm; front side of equipment: 1200mm

Notes:

1. The user is required to configure the leakage protection switch of the corresponding capacity for the equipment at site, and the switch must be used independently for the device.

2. It is forbidden to use the knife switch or power socket.

3. The leakage protection air switch is not more than 2 meters away from the equipment.

4. The user is required to supply the water source for the equipment at site, the water pressure is not less than 0.2Mpa,and install 4 water distribution taps.

5. The position of the water faucet is no more than 2 meters away from the equipment.







125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008 2 125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008 3





Customization:

125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008 4

Packing and Shipping:

Packaging

First, our team of professionals will securely package the Drop Testing Machine using high-quality materials to protect it during transport. This will include foam padding, bubble wrap, and sturdy corrugated boxes.

We will also include a user manual and any necessary accessories in the package. The machine will be labeled with fragile stickers and handling instructions to ensure proper care is taken during shipping.

Shipping

We offer multiple shipping options to suit your needs. Our standard shipping method is through a reliable courier service with tracking information provided. This will typically take 5-7 business days for domestic shipping and 10-14 business days for international shipping.

If you require faster delivery, we can arrange for expedited shipping at an additional cost. Please contact us for more information and a quote.

Customs and Duty Fees

Please note that for international shipments, any customs or duty fees will be the responsibility of the customer. We will provide all necessary documentation for customs clearance, but the fees may vary depending on your country's import regulations.

Insurance

We understand the value of your investment and want to ensure its safe arrival. That's why we offer insurance for an additional fee. This will cover any damages or loss during shipping, providing you with peace of mind.

Thank you for choosing our Drop Testing Machine. We are committed to delivering a high-quality product and ensuring its safe arrival. If you have any questions or concerns, please don't hesitate to contact us.

125L IPX5 IPX6 Water Spray Climate Test Chamber IEC60529:1989 GB4208-2008 5

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is INFINITY.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: Is this product certified?
    A: Yes, this product is certified with CE and ISO.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1.
  • Q: Can the price of this product be negotiated?
    A: Yes, the price of this product can be negotiated.
  • Q: How is this product packaged?
    A: This product is packaged with clear sheet, sponge, and wood carton.
  • Q: How long does it take to deliver this product?
    A: It takes 20-30 days after the order is confirmed to deliver this product.
