2000mm Battery Controlled Drop Testing Machine

2000mm Battery Controlled Drop Testing Machine

  • 2000mm Battery Controlled Drop Testing Machine
  • 2000mm Battery Controlled Drop Testing Machine
  • 2000mm Battery Controlled Drop Testing Machine
  • 2000mm Battery Controlled Drop Testing Machine
  • 2000mm Battery Controlled Drop Testing Machine
2000mm Battery Controlled Drop Testing Machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Batteries Controlled Drop Testing Machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Battery Controlled Drop Testing Equipment: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Products: Mobile Phone Contolled Drop Testing Machines Model: DT2000
Usage: Lab Drop Testing, Falling Down Testing Product Name: Speaker Drop Test Machine
Application: Drop Test Battery, Handset, Smartphone, Camera, Battery, Power Bank Ect. Drop Height: 400~2000 Mm
Power Supply: 220V 50Hz Warranty: 12 Months
High Light:

2000mm Drop Testing Machine

,

Battery Controlled Drop Testing Machine

,

2000mm Drop Test Equipment

Reliability Quality Test Battery Controlled Drop Test Machine, Batteries Contolled Drop Tester Equipment







Model: DT2000





Specification:



Model DT2000
Drop height 300~2000mm
Max sample weight 2kg
Drop height setting Touch panel setting and display
Min release height 300mm
Counter 0~999,999 (settable)
Air source ≥0.5MPa
Tester size W1000xD1180xH2415mm
Weight About 420kg
Power supply AC220V 50Hz 3A or 110V 60Hz 6A
Drop bases Steel, Wood, Granite
Sample fixing Sucker or Clamper



Standard: IEC 60068-2-32



Application:



Handset Battery Controlled Drop Testing Device is to evaluate the product performance after unintentional drop, it is suitable to do test for all kinds of consuming electronic products, such as the mobile phone, tablet, e-reader, telephone, e-dictionary , remote control etc..

Mini Loudspeaker Controlled Drop Impact Test Machine is the wide-ranging using in the manufacturers for speaker, earphone, mobile phones, tablets, remote concrol.



2000mm Battery Controlled Drop Testing Machine 0 2000mm Battery Controlled Drop Testing Machine 1 2000mm Battery Controlled Drop Testing Machine 2

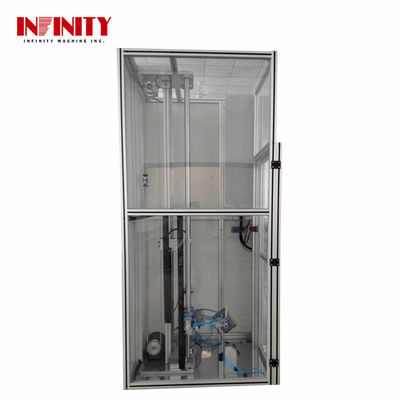

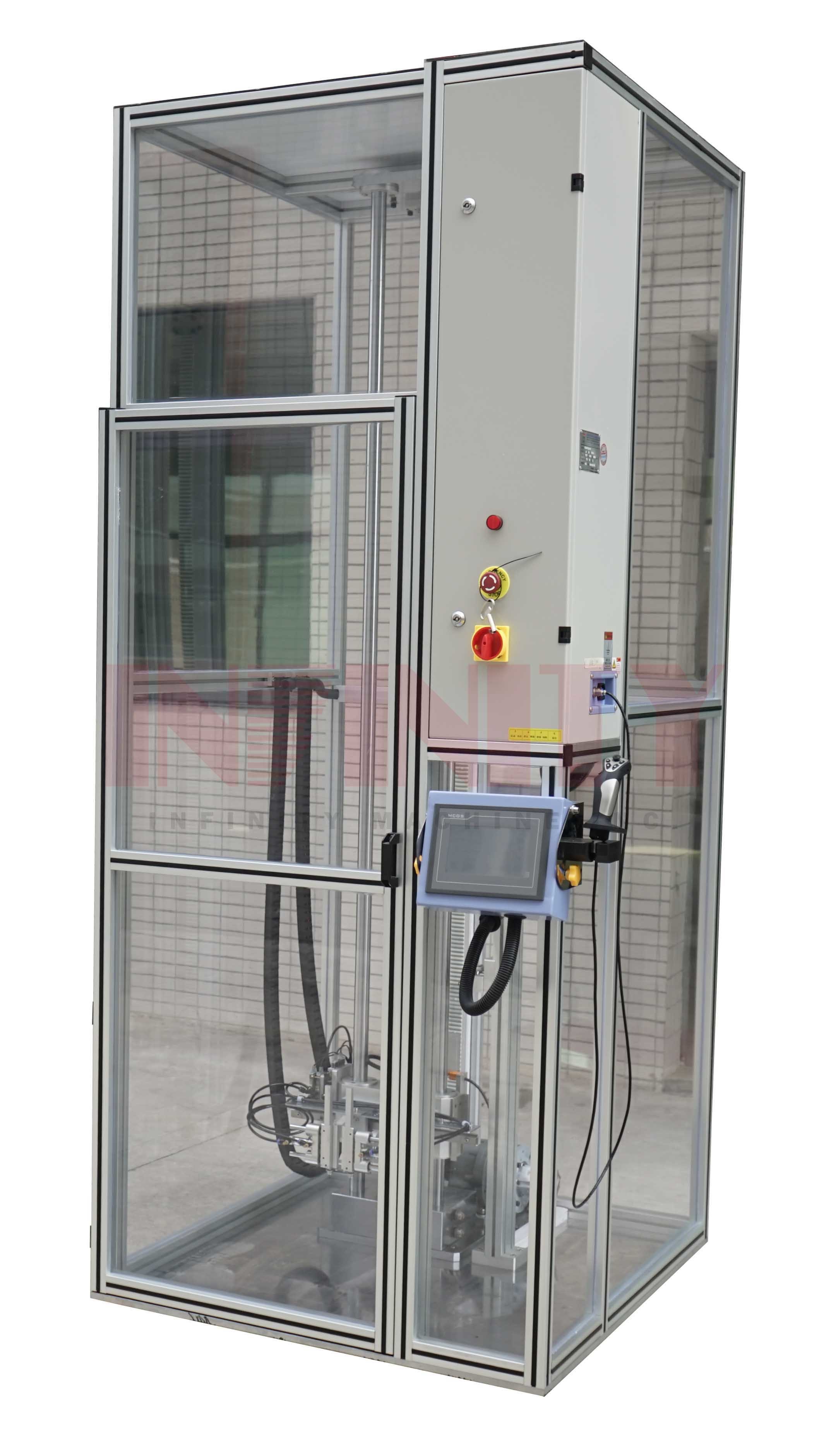

Machine Structure:



a. High Precision Smartphone Battery Controlled Drop Tester adopts AC servo motor and synchronous pulley for the drop height adjusting, can guarantee the height precision, and long durability.



b. Music Speaker Box Battery Drop Test Equipment adopts the color touchpanel+ PLC to control and set the motion, can set the drop height directly, it will auto stop when it reaches the set height, it can preset the drop times and has power-off memory function, all the controls can be done in the touch panel: drop, reset, height setting, drop times, and counting.



c. Notebook Battery Drop Test Machine is to use the SMC vacuum sucker for the samples sucking, the edges, corner can faces impact can be done.



d. Tested sample will be released at the height of 300mm, the tested sample drop gesture is close to the original set gesture.



e. Communication Device Battery Controlled Drop Test Machine is used aluminum alloy frame and transparent PMMC as the whole sealing enclosure , it is installed with the Omron safety lock, the tester can be triggered when it locks, that can guarantee the security.



f. All the pneumatic parts are from SMC, can make sure the high performance and long durability.



g. Various drop bases are available: steel base, wood base, granite base, that is to meet the various impact medium requirements.



h. Auto count(Drop cycles) function function, Auto drop mode and the manual drop mode are switchable.



i. The drop friction can be lowest because it uses the Japan THK high precision low friction sliding rail.



j. Battery Controlled Drop Tester Machine has special handle controller, it is convenient to control the Start, Stop, and Reset during the testing.



2000mm Battery Controlled Drop Testing Machine 3



Sucker sucking angle: 0°,45°, 90°:



2000mm Battery Controlled Drop Testing Machine 4

To use PMMA to make the fence to prevent the tested Sample from bounding out of the drop base area.





2000mm Battery Controlled Drop Testing Machine 5



To use color LCD touchpanel controller.



With acceleration testing device( First design in China): Chinese and English Interface, easy operation, strong performance.



2000mm Battery Controlled Drop Testing Machine 6



Software Specialties:



After testing, auto display the drop speed.

Three vacuum suckers freely switchable.

After drop, Auto return to sample loading position.

Drop height, Sample loading height can be set, drop times display/Reset





Several customers adopted high speed camera, laser distance meter to verify the accuracy of drop speed and acceleration.



2000mm Battery Controlled Drop Testing Machine 7
