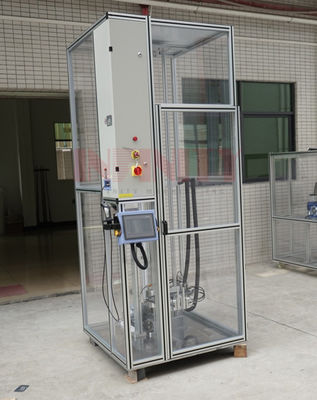

1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine

1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine

  • 1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine
  • 1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine
  • 1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine
  • 1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine
1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IN-DT2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Controlled Drop Test Device: Standard export wooden case with operation manual and video inside.
Delivery Time: Controlled Drop Test Machine: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Products: Speaker Drop Testing Machine Model: IN-DT2000
Usage: Lab Drop Testing, Falling Down Testing Product Name: Speaker Drop Test Machine
Application: Drop Test Speaker, Smartphone, Camera, Battery, Power Bank Ect. Drop Height: 400~2000 Mm
Power Supply: 220V 50Hz Warranty: 12 Months
High Light:

Bluetooth Speaker Controlled Drop Test Machine

,

1000mm Drop Test Machine

,

Bluetooth Speaker Controlled Drop Test Equipment

1m 1000m Drop Test Bluetooth Speaker Controlled Drop Test Machine, Loudspeaker Controlled Drop Test of Device







Model: IN-DT2000

Standard: IEC 60068-2-32





Specification:



Model IN-DT2000
Drop height 300~2000mm
Max sample weight 2kg
Drop height setting Touch panel setting and display
Min release height 300mm
Counter 0~999,999 (settable)
Air source ≥0.5MPa
Tester size W1000xD1180xH2415mm
Weight About 420kg
Power supply AC220V 50Hz 3A or 110V 60Hz 6A
Drop bases Steel, Wood, Granite
Sample fixing Sucker or Clamper





Application:



Speaker Controlled Drop Test Device is to evaluate the product performance after unintentional drop, it is suitable to do test for all kinds of consuming electronic products, such as the mobile phone, tablet, e-reader, telephone, e-dictionary , remote control ETC.

Mini Loudspeaker Controlled Drop Test Machine is the wide-ranging using in the manufacturers for speaker, earphone, mobile phones, tablets, such as ZTE, Foxconn, Liteon, Compal, Quanta, Salcomp, AAC, Gree, BYD Holitech,Ofilm, Foxlink ETC.



1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 0 1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 1

1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 2 1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 3



Machine Structure:



a. High Precision Controlled Fall Drop Test Machine adopts AC servo motor and synchronous pulley for the drop height adjusting, can guarantee the height precision, and long durability.



b. Music Speaker Box Drop Test Equipment adopts the color touchpanel+ PLC to control and set the motion, can set the drop height directly, it will auto stop when it reaches the set height, it can preset the drop times and has power-off memory function, all the controls can be done in the touch panel: drop, reset, height setting, drop times, and counting.



c. Sound Device Drop Tester Machine is to use the SMC vacuum sucker for the samples sucking, the edges, corner can faces impact can be done.



d. Tested sample will be released at the height of 300mm, the tested sample drop gesture is close to the original set gesture.



e. Portable Loudspeaker Drop Testing Machine is used aluminum alloy frame and transparent PMMC as the whole sealing enclosure , it is installed with the Omron safety lock, , the tester can be triggered when it locks, that can guarantee the security.



f. All the pneumatic parts are from SMC, can make sure the high performance and long durability.



g. Various drop bases are available: steel base, wood base, granite base, that is to meet the various impact medium requirements.



h. Auto count(Drop cycles) function function, Auto drop mode and the manual drop mode are switchable.



i. The drop friction can be lowest because it uses the Japan THK high precision low friction sliding rail.



j. Mini Loudspeaker Drop Tester Machine has special handle controller, it is convenient to control the Start, Stop, and Reset during the testing.



1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 4



Sucker sucking angle: 0°,45°, 90°:



1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 5

To use PMMA to make the fence to prevent the tested Sample from bounding out of the drop base area.





1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 6



To use color LCD touchpanel controller.



With acceleration testing device( First design in China):Chinese and English Interface, easy operation, strong performance.



1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 7



Software Specialties:



After testing, auto display the drop speed.

Three vacuum suckers freely switchable.

After drop, Auto return to sample loading position.

Drop height, Sample loading height can be set, drop times display/Reset





Several customers adopted high speed camera, laser distance meter to verify the accuracy of drop speed and acceleration.



1m 1000mm 2000mm Bluetooth Speaker Controlled Drop Test Machine 8



FAQ:



1. How to choose the most suitable free fall drop tester from INFINITY MACHINE INC.?

Our professional team will provide specialized suggestion to you when we received your testing requirements.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the lead time is about 15-25 working days.



3. Do you accept customization service?

Yes, of course, we are not only offer standard machines, but also provide customized service according to your request. If you have any testing requirements, please contact us.



4. Can we visit your factory before order?

Sure, we sincerely welcome you to visit our factory, if it is not convenient for you to visit our facotry, you could arrrange your friends to visit our company as well.



5. Do you have customers in our country?

Our equipment is not only sold in China (mainland, Hong Kong, Taiwan), but also sold to more than 70 countries, such as, The United States, Canada, Mexico, Germany, Britain, France, Italy, Sweden, Denmark, Poland, Portugal, the Netherlands, Ireland, Turkey, Hungary, Austria, Spain, Bosnia and Herzegovina, Romania, Bulgaria, Serbia, Belgium, Slovakia, Lithuania, Latvia, belarus, Russia, New Zealand, Australia, Vietnam, South Korea, Japan, Singapore, Malaysia, Thailand, the Philippines, the United Arab Emirates, Iran, Sudan, Kuwait, Saudi Arabia, Qatar, Uzbekistan, Lebanon, Sri Lanka, South Africa, Afghanistan, Botswana, Nigeria, Gambia, Namibia, Cameroon, Israel, Pakistan, Indonesia, India, Egypt, Brazil, Chile, Argentina, Colombia, Puerto Rico, Peru, Guatemala, Costa Rica, Uruguay and so on.



6. How about your warranty?

Generally, we will provide 12 months warranty for testing machines.



7. How about the packing for testing machine, are there have safe protected during transportation?

Usaully our equipment is packed by standard export wooden box, also, our products have been delivered to more than 70 countries, so we have rich experience to protect your machines.



8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.



9. How to install and use the testing equipments?

We will provide installation instructions to you, also, we will prepare user manual and operating video in English version for you. If you have any question about the machine, please contact us freely.
