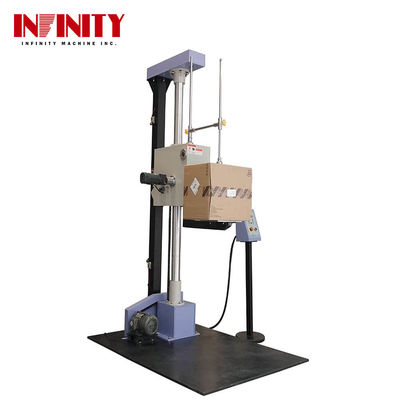

JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine

JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine

  • JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine
  • JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine
JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT2200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Box Drop Impact Resistance Testing Machines: Standard export wooden case with operation manual and video inside.
Delivery Time: Bottle Drop Impact Resistance Test Machines: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Containers Drop Impact Resistance Testing Machine Usage: Drop Shock Testing, Bottle Free Drop Impact Resistance Of Blow-molded Thermoplastic Containers
Drop Height: 300-2000 Mm Max Size Of Specimen: 800*600*1000mm
Test Load: 100kg Standard: GB4757.5-84, JB/T7407-94, ISO2248-1995
Power: AC380V 50Hz Or Specified By User Warranty: 12 Months
High Light:

JB/T7407-94 Drop Impact Testing Machine

,

Thermoplastic Bottle Drop Impact Testing Machine

,

JB/T7407-94 Drop Impact Tester

Botttle Drop Impact Resistance of Blow-molded Thermoplastic Containers Bottle Drop Impact Resistance Testing Machine

Model: DT2200





Purpose:



Free Drop Impact Resistance Testing Equipment simulates dropping of the packaged finished products to evaluate their damages. All the rhombohedrons, angles and faces of the package container can be tested. so that manufacturer knows how to take measures effectively to protect the products against damage during transportation. During dropping, the carrier will rotate to allow the packed products to fall freely. Drop impact testing machines can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.



Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995, ASTM, ISTA

Free Drop Shock Test Machine is under vertical impact for complete and fully loaded package during transport.





Application:



Fall drop impact resistance testing system is suitable for the drop impact resistance of blow-molded thermoplastic containers, toys, electronics, electrical appliances, communications, IT, ceramics, furniture, gifts, packaging and other finished products or components. Product drop (drop without packaging), packaging drop (the finished product and the outer packaging fall together) ), in order to evaluate the impact resistance of the product when it is transported, or the impact strength of the product good or damage when it is dropped.



JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine 0 JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine 1





Product:

JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine 2





Specification:



Model DT2150 DT2200 DT2300
Dropping height range 300~1500mm 300~2000mm 300~3000mm
Display Digital displayer
Height accuracy ≤2% of the setted value
Maximum load 100kg
Test space (LxWxH) 800x600x1000mm
Angle tolerance ≤5°
Motor 1/2HP
Dimension (WxDxH)mm 1700x1200x2515 1700x1200x2835 1700x1200x3235
Weight About 750kg About 800kg About 900kg
Power supply AC380V 50Hz or specified by user







Package:



JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine 3  JB/T7407-94 Blow Molded Thermoplastic Bottle Drop Impact Testing Machine 4
