Package Testing Equipment Horizontal Compression Clamping Force Test Machine ASTM Carton Clamping Force Testing Machine

Package Testing Equipment Horizontal Compression Clamping Force Test Machine ASTM Carton Clamping Force Testing Machine

  • Package Testing Equipment Horizontal Compression Clamping Force Test Machine ASTM Carton Clamping Force Testing Machine
Package Testing Equipment Horizontal Compression Clamping Force Test Machine ASTM Carton Clamping Force Testing Machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: S6440
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaging Clamping Force Test Machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Testing Load: 2000lbs Clamping Pressure: 400-3000 Pounds,
Force Value Accuracy: National Standard Class 1.6 Clamping Panel Dimension: 1200 × 1200mm, Thickness Of No Less Than 25mm
Maximum Clamping Space: W2000 × D1200 × H1200mm Minimum Clamping Space: W630 × D1200 × H1200mm
Lifting Space: 0~1000mm, Adjustable Power Supply: 380V/50Hz
Products: Carton Clamping Force Testing Machine Testing Standard: ASTM, GB/T 4857.4-2008, ISTA 6-AMAZON, LTP-2001 Etc.

Package Testing Equipment Horizontal Compression Clamping Force Test Machine ASTM Carton Clamping Force Testing Machine

Model: S6440





Product Description:
Package Carton Clamping Force Tester Machine is designed for testing the deflections of product packages and test the protective capacity of packagesduring suffering level pressure in the process of transportation and storage, by this way, ,package manufactrurer could improve the quality of product package according the test result.





Safety protection:
Overload protection, overvoltage protection & limited position protection device.







Test standards:



Package carton clamping force test machine meet the requirements of ASTM D6055-96 METHOD, ISTA Packaging Test EHP Cold, LTP-2001 Clamping test,



GB/T 4857.4-2008 Basic Experiment of Packaging and Transporting Packages,



ISTA (International Safety Transit Association) 1A Packaging Performance of Independent Packaging Products That is No Heavier Than 1501b (68kg),



ASTM Standard D 4169 Standard Operating Specification for Shipping Containers and System Protection Performance test,



ASTM Standard D 6055 Standard Test Method for Compositional Load and Mechanized Transport of Large-scale Shipping Containers or Crates,



ASTM Standard D 6179 Standard Test Method for Compositional Load and Rash Transport of Large-scale Shipping Containers or Crates,



ASTM Standard D 999, Standard Test Method for Shock Test of Shipping Containers,



ASTM Standard D 5445 Geographical Symbols for Standard Operational Actions in Cargo Transport.





Specification:



1. Weight of maximum test piece: 1000kg;

2. Clamping pressure: 400-3000 pounds, adjustable;

3. Force calibrator: force sensor and digital display calibrating the clamping force, unit switchable between Kg, KN and Lb;

4. Force value accuracy: National Standard Class 1.6;

5. Clamping panel dimension: 1200 × 1200mm, thickness of no less than 25mm;

6. Clamp plate requirements: it is guaranteed that the two clamp plates maintain smooth without deformation under the maximum pressure working

    state, the two plates are parallel, while each plate and the floor are vertical to each other;

7. Maximum clamping space: no less than W2000 × D1200 × H1200mm;

8. Minimum clamping space: no more than W630 × D1200 × H1200mm;

9. Baseboard width: no slower than 1800 × 1800mm

10. Clamping speed: 10~300mm/min, adjustable;

11. Lifting space: 0~1000mm, adjustable

12. Power supply: 380V/50Hz

13. Safety device: overload protection, overvoltage protection, limit protection, instantaneous conquassation protection and sudden power-off

      protection;

14. Control: human-computer interface with touch screen is used for the controller that controlled by PLC program with convenient operation and

      stable performance;

15. Drive mode: hydraulic drive;

16. Manual operating arm analogs forklift’s actual operation action to control clamping, stretching, hoisting and lowering action, control panel may

      realize continuous and automatic action and single step repetition;

17. Both vertical and horizontal offsets between clamp plate and test piece can be set, repeatedly continuous and periodical clamp test can be

      realized according to setup parameters, test period can be adjusted from 1 to 99 at will;

18. Clamp duration can be set with control program from 0 to 600s at will;

19. Control panel and clamp arm are required to be installed separately for the equipment and the distance from control panel to clamp arm shall

      be more than 2 meters;

20. Baseplate shall parallel to assembling floor so as to install the test piece.







Application:



Package container clamping force tester machine mainly applies to the detection of the bearing capacity of the product package clamped by forklift clamps during the transport process, and the evaluation of the protective capacity of product package to the inner packaged goods through the simulation test.





Picture:

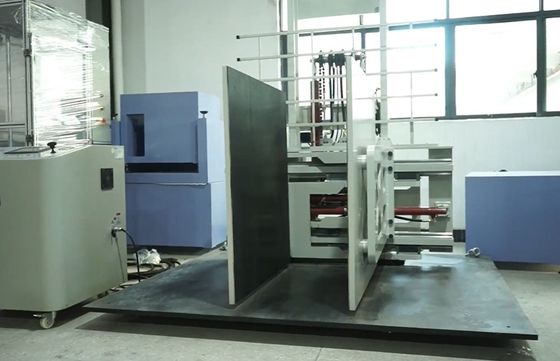

ASTM ISTA 6-AMAZON Package carton horizontal compression clamping force testing machineS



Package Testing Equipment Horizontal Compression Clamping Force Test Machine ASTM Carton Clamping Force Testing Machine 0
