10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test

10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test

    • 10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test
    • 10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test
    • 10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test
    • 10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test
    • 10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test
    • 10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test
  • 10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE; ISO
    Model Number: RS-8000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Capacity: 100N, 200N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN, 30kN, 50kN Unit Dimesion: 830*670*1940mm
    Weight: About 345kg Aplication: Plastic, Metal, Textile ... Tensile Tester
    Load Resolution: 1/500,000 Load Accuracy: 0.25%
    Stroke: 800,1000mm(optional) Effective Width: 400,500mm(optional)



    10KN Servo Control Universal Tensile Testing Machine

    for Lab Metal / Steel Wire Test



    Model: RS-8000



    Application:



    This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength, fatigue etc for semi-product & finished product in the field of rubber, plastic, metal, nylon, non-woven fabrics, testile, tape, electric wire, etc. It can record and memorize the whole testing data.



    Standard:



    1. ASTM D638-03, ASTM D790-07 standard test method for Tensile Properties of plastics;

    2. ASTM D3330-04 standard test method for Peel Adhesion of pressure-sensitive tape(Test method A-Sigle-Coated tapee at 180° angle);

    3. ASTM D1894-06 standard test method for Static and Kinetic Coefficients of friction of plastic film and sheeting(Single coated tapes at

       90° angle)  standard testing.



    Parameter:



     Model

     RS-8000

     Capacity(optional)

     100N, 200N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN, 30kN, 50kN

     Unit(switchable)

     N, kN, kgf, Lbf, MPa, Lbf/In², kgf/mm²

     Load Resolution

     1/500,000

     Load Accuracy

     0.25%

     Load Range

     Rangless

     Stroke(exclude the grips)

     800,1000mm(optional)

     Effective Width

     400,500mm(optional)

     Test Speed

     0.001~500mm/min

     Speed Accuracy

     ±0.5%

     Displacement Resolution

     0.001mm

     Software

     Closed-loop control software

     Motor

     AC servo motor

     Transmission Hod

     High accuracy ball screw

     Main Unit Dimansion(W×D×H)

     830×670×1940mm

     Main Unit Weight

     About 345kg

     Power

     AC220V 5A or specified by user

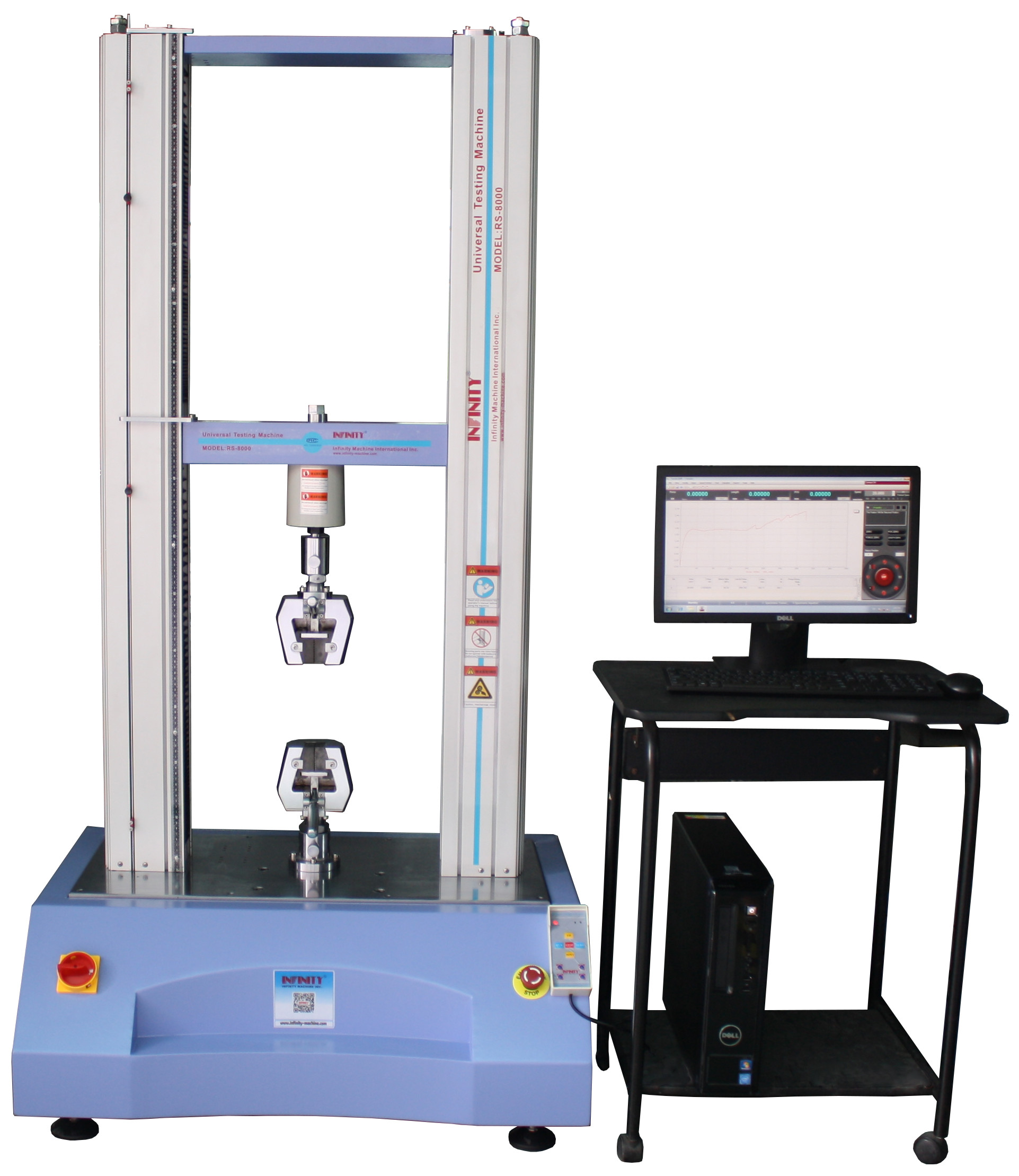

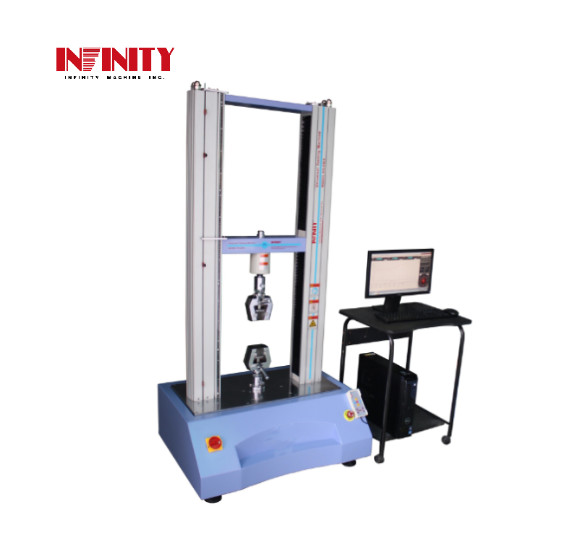

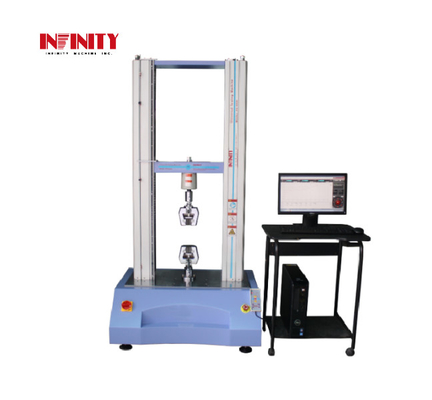

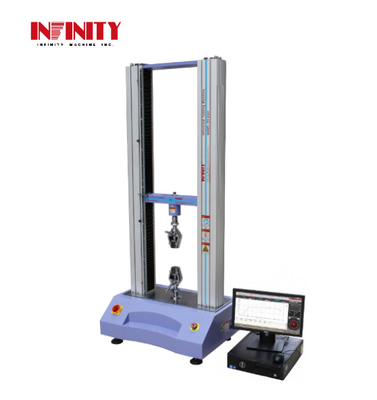

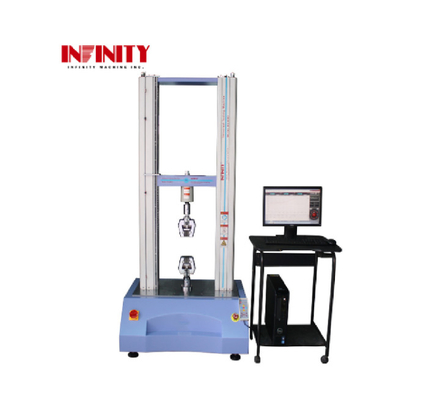

    Pictures for Details:

     10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test      10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test





    10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test





    10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test



    Features:



    High accuracy:

    Adopt AC servo motor to driving the high precise Taiwan ABBA ball screw working, with high precise America TRANSCELL explosion-proof load cell, load accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.



    High performance:

    Automatic broken identification, automatically return, point collected by hand, multi-units switching, English and Chinese languages can be choice. And also have many kinds of analysis curve: stress vs strain curve, load vs flexure curve, strength vs deformation curve, strength vs time curve, time vs flexure curve.



    After Sale Service:



    1. One year warranty; Life time maintenance.

    2. Professional engineer to solve any problems or confusion about the test equipment.

    3. Our team will help customers to establish quality control lab and send after service team abroad for machines installation and training.



    10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test



    10KN Servo Control Electronic Universal Testing Machine For Lab Metal / Steel Wire Test



    100N To 50KN Servo Control Metal / Steel Wire Tester Universal Test Machine for Lab

    100N To 50KN Servo Control Metal / Steel Wire Tester Universal Test Machine for Lab
