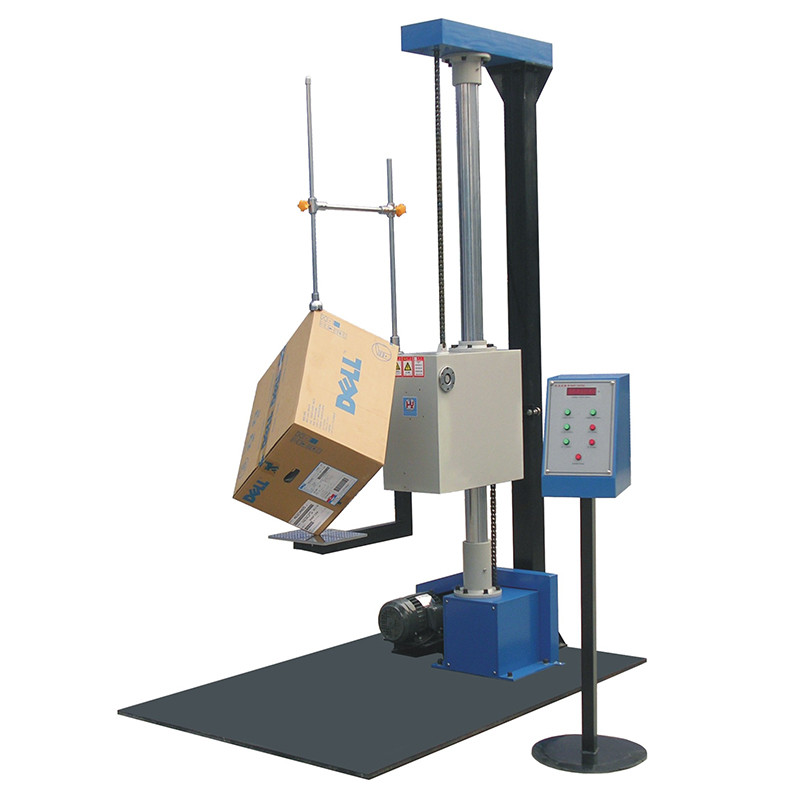

RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer

RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer

  • RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer
  • RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer
RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-315 / 320 / 330
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Display: Digital Displayer Motor: 1/2HP
Maximum Load: 100kg Test Space: 800x600x1000mm
Angle Tolerance: ≤5° Warranty: 1 Year
Power Supply: AC380V 50Hz Or Specified By User Weight: 750kg / 800kg / 900kg
High Light:

packaging testing equipments

,

packaging testing equipment



RS-315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer for Manufacturer



Model: RS-315 / 320 / 330



Purpose:



Package Testing Equipment is used to assess the fragility of a packaged product and simulate the shocks packaging or palletised product may encounter during manual or mechanical handling by subjecting them to repeatable impacts similar to those they will experience in the distribution environment or from an end user.
When drop testing, the packaging when placed in Anecto’s Lansmont drop test equipment must be able to withstand free fall and sudden impact from different heights and at different angles of impact.

The drop test is repeated and is designed to expose faults in the package or pallet, preventing packaging failures and future functional failures and cosmetic damage to the product. If a package or pallet can be lifted it can also be dropped.



Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995

Package- Dropping Test under Vertical Impact for Complete and Fully Loaded Package during transport.



Characteristics:



This equipment is specified for the free dropping testing against the side, angle and edge of packages. It has digital height display instrument and decoder is used to track the height, through which the dropping height can be precisely displayed, the measured dropping height has a deviation of less than 2% or 10mm comparing with preset dropping height. This equipment has structure of single arm combining with double props, it also has electrical driving, electrically controlled dropping and electrical lifting devices, easy for use; it has special hydraulic buffering device of which can largely extend the lifetime, stability and safety. Single arm structure has the convenience for sample location; the angle deviation from dropping angle against the impacted face is no more than 5degrees.



Specification:



 Model  RS-315  RS-320  RS-330
 Dropping height range  300~1500mm  300~2000mm  300~3000mm
 Display  Digital displayer
 Height accuracy  ≤2% of the setted value
 Maximum load  100kg
 Test space (LxWxH)  800x600x1000mm
 Angle tolerance  ≤5°
 Motor  1/2HP
 Dimension (WxDxH)mm  1700x1200x2515 1700x1200x2835 1700x1200x3235
 Weight  About 750kg About 800kg About 900kg
 Power supply  AC380V 50Hz or specified by user



Package:



RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer 0



RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer 1



RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer 2



Product:

RS -315 / 320 / 330 Package Box Drop Testing Equipment With Digital Displayer 3
