Print Ink abrasion testing equipment 0 - 999999 times for Printing RS - 5600Z

Print Ink abrasion testing equipment 0 - 999999 times for Printing RS - 5600Z

  • Print Ink abrasion testing equipment 0 - 999999 times for Printing RS - 5600Z
Print Ink abrasion testing equipment 0 - 999999 times for Printing RS - 5600Z
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-5600Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Standard: GB/T7706 / ASTM D5264 TAPPI T830 Abrasion Load: 20±0.2N / 8.9N(21b), 17.8N(41b)
Abrasion Speed: 43cpm / 21、43、85、106cpm Abrasion Area(WxD): 155mmx50mm / 100mmx50mm
Sample Size(WxD): 230mmx50mm / 180mmx50mm Abrasion Times: 0~999,999times ( Can Set )
Power: AC220V 50Hz Or Specified By User Warranty: 1 Year
High Light:

martindale abrasion tester

,

din abrasion tester

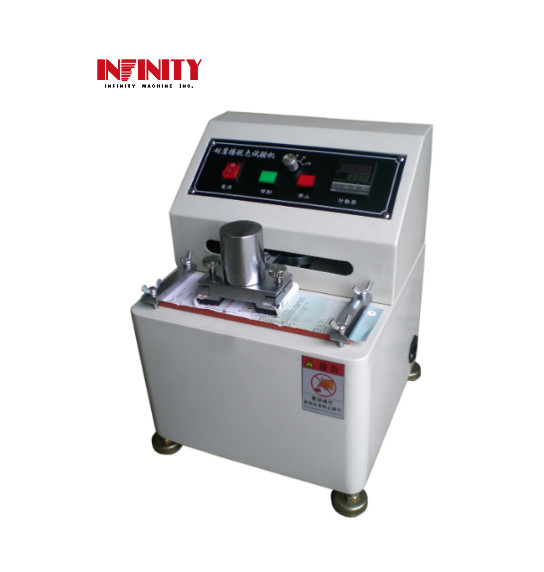

RS - 5600Z Print Ink Abrasion Resistance Tester for printing



Model: RS-5600Z



Application:



Apply for printing parts do coating abrasion resistance test (Ink discoloration testing machine), can be used for all kind of coating & printing parts and analysis the data for abrasion capability, ink discoloration, PS version printing capability and coating thickness, etc.

Test theory: load the testing sample with specific load at specific speed do abrasion test, after test, check the density or coating thickness to check the ink or coating surface.



Standard:



JIS K5701, GB/T7706, ASTM D5264, TAPPI T830



Specification:



Model RS-5600Z
Standard GB/T7706 ASTM D5264 TAPPI T830
Abrasion load 20±0.2N 8.9N(21b), 17.8N(41b)
Abrasion speed 43cpm 21,43,85,106cpm
Abrasion area(WxD) 155mmx50mm 100mmx50mm
Sample size(WxD) 230mmx50mm 180mmx50mm
Abrasion times 0~999,999times ( can set )
Dimension (WxDxH) 300x300x400mm
Weight 20kg
Power AC220V 50Hz or specified by user




Product Show:



Print Ink abrasion testing equipment 0 - 999999 times for Printing RS - 5600Z 0
