| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8017 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity (optional): | 10N,20N,50N,100N,200N, 500N | Unit (switchable): | N, Kgf, Lbf |
|---|---|---|---|
| Load Resolution: | Pin Dial Type 1/200, Digital Type 1/1000 | Load Accuracy: | ±1% |
| Stroke (exclude The Grips): | 450mm | Effective Width: | 600x600mm |
| Warranty: | 1 Year | ||
| High Light: | utm universal testing machine,universal test equipment |
||
Typical applications:
Electrical terminal tensile test
Small plastic shell of electrical parts press resistance test
Drink package bursting test
Keyboard cap tensile test
Specification:

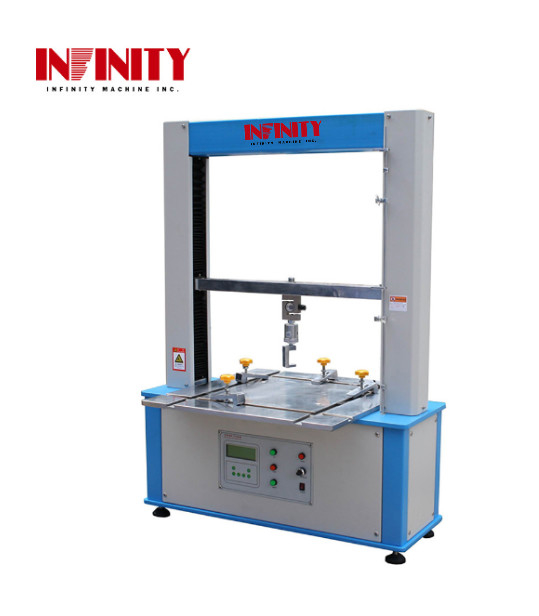

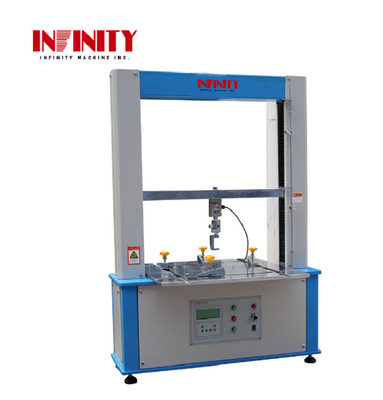

| Model | RS-8017 |
| Capacity (optional) | 10N,20N,50N,100N,200N, 500N |
| Unit (switchable) | N, Kgf, Lbf |
| Load resolution | Pin dial type 1/200, digital type 1/1000 |
| Load accuracy | ±1% |
| Stroke (exclude the grips) | 450mm |
| Effective width | 600x600mm |
| Test speed | 25~500 mm/min |
| Speed accuracy | ±1% |
| Stroke resolution | 0.01mm |
| Motor | AC Motor |
| Indicator | Show max. value, test value, displacement, deformation, shutoff in broken, overload protection function |
| Main unit dimension (WxDxH) | 1000x600x1380mm |
| Main unit weight | 135Kg |
| Power supply | AC220V 3A or specified by user |
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
