Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min

Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min

    • Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min
    • Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min
    • Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min
  • Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-DP-04N

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Test Amount: 2 Sets Tested Weight: 2kgf (max)
    Drop Herght: 300mm(or Specified) Test Speed: 5 ~ 25 Cycles / Min
    Test Cycle: 1 ~ 999,999 Times (cycle) Weight: About 80kg
    Power: AC220V 3A Or Specified By User Warranty: 1 Year

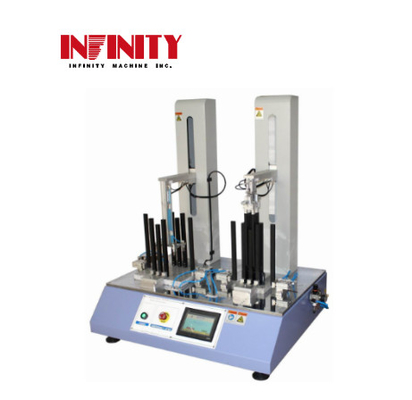

    Blue 2-Station Tester for Desktop Micro-Drop Test of Electronic Products



    Model : RS - DP - 04N



    Purpose:



    The Automatic Torsion Tester produced by Infinity-machine is specialized at the Torsion testing of the mobilephone & pad, it uses the servo motor from Panasonic, and THK precise ball screw and guide rail for the transmission.

    Control of the testing system is via an Infinity-machine proprietary software program designed specifically for materials testing. Setting test parameters, operating the system, collecting and analyzing test data is done through the software program.



     Specialties:



    This equipment adopts Japanese Panasonic AC Server motor to control up and down, Japanese SMC vacuum sucker to absorb products (small product dropping adopts SMC pneumatic cylinder finger to clamp), SMC cylinder homing product, touch panel controlling server motor , touch panel controlling magnetic valve which controls cylinder movements as absorption, stretching and retraction, etc.



     Specification:



    Allowable maximum sample size W300xL300xD30mm
    Allowable minimum sample size W60xL100xD8mm
    Allowable product weight 100~2500gf
    Dropping height range 50~300mm
    Dropping way Faces sides and corners
    Dropping medium Steel base, wooden base and marble base
    MGPM16-30 stroke of location cylinder 30mm
    Up & down driving way servo driving and synchronous belt transmission
    Stroke of MHZ2-25D clamping cylinder 14mm
    Force of MHZ2-25D clamping cylinder 104N(max)
    ZPT20UN-B8 adsorption of vacuum sucker 2.13kgf(500mmHg)
    Test cycle setting 1~999999times
    Testing speed 2~15times/min
    Air supply ≧0.6MPa
    Dimension W1400xD1040xH1025mm
    Weight About 285kg
    Power AC100V 8A
    Emergency stop time 100ms



    Principle of Operation:



    Operators merely choose dropping mode and pickup mode in touch panel, i.e. setting test times, dropping height, pickup height, cylinder location time, pickup time, press start test, touch panel controls server motor lifting, electromagnetic valve controls cylinder movements, stretching out or retraction, and suckers suck or( pneumatic cylinder clamps) samples to conduct dropping test.

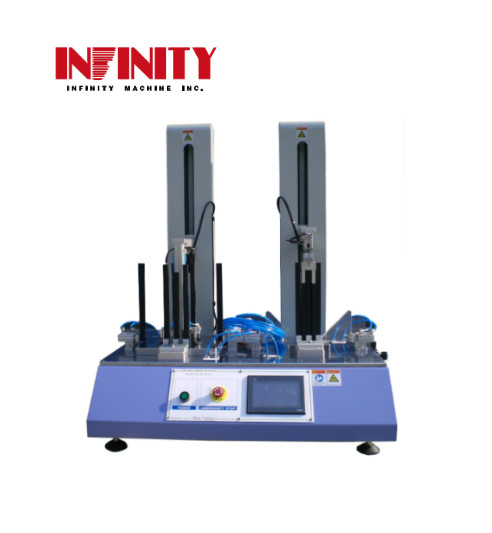

    Product Show:



    Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min

    Test Introduction:



    Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min



    Blue 2-Station Drop Weight Tester For Desktop , 5 ~ 25 Cycles / Min
