| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-6900A-A / RS-6900A-A2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Position Resolution: | 0.001mm | Position Accuracy: | ±0.03mm |
|---|---|---|---|
| Unit: | Gf,kgf,N, Lb Mm,cm,In | Load Accuracy: | ±0.5% |
| Dimension: | W860*D755*H1780mm/W1150*D755*H1850mm | Power: | AC220V 50Hz 6A Or AC110V 60Hz 10A |
| Weight: | 425kg/550kg | Warranty: | 1 Year |
| High Light: | keyboard key tester,force testing machine |
||
Powerful multifunctional loading tester for 3 or 4 point bending test
Model:RS-6900A-A / RS-6900A-A2
Application:
This servo control Multi-function tester is controlled by X,Y,Z axes, it is suitable for the button force test, the compression for electronic products, the 3 points bending test, 4points bending test.
Specialties:
1.The tester is mobed by X,Y,Z axes,X,Y are to move the testing platform, so that can realize the multi-points compression test for the buttons force test and the electronic products compression test; Z axis id connected to the transducer to appply the test force,collect the test force and control the comperssion time.
2.The system is controlled by computer professional software, can set the test force, test time, test cycles, and test speed, and can collect the test force, test time, test speed to generate test graph.
3.X,Y,Z axes are driben bu servo motor from Japanese Panasonic to drive; transmission by precise ballscrew which can achieve the low noise and long durability.
4.The tester is equipped with a controlled box, the operator can also use the box for the tester setting.
5.The tester is table top type, a special table as the accessory.
6.Chinese or English interface can be optional. The unit (N,Lb,gf,kgf) can be switched freely.
7.The testing method can be set, saved and called for use from the saving record. The data and curve can be printed directly.
8.The life damping curve can be created, the test report can be converted to Excel and PDF file format.
Specification:
| Model | RS-6900-A-A(Standard) | RS-6900-A-A2(Dilated) |
| Direction of motion | Z Axis:Rise or fall, X:Left and right, Y:Forward and backward | |
| Drive mode | XYZ axis adopts servo motor and ballscrew drive | |
| Z axis load(max) | 100kgf | 100kgf(choosable 200kgf) |
| Z Moving range | 0~150mm | 0~200mm |
| Position resolution | 0.001mm | |
| Position accruacy | ±0.03mm | |
| Loadcell | 2kgf,5kgf,10kgf,20kgf,50kgf,100kgf(optional) | |
| Unit | gf,kgf,N,Lb mm,cm,In | |
| Load accuracy | ±0.5% | |
| Minimum display | 0.01gf | |
| Z axis Test speed | 0.1~500mm/min | |
| X Moving range | 0~300mm | 0~460mm |
| Y Moving range | 0~300mm | 0~300mm |
| X-Y Moving speed | 0.1~200mm/sec(1200mm/min) | |
| X-Y Moving accuracy | ±0.05mm | |
| X-Y Axis position precision | ±0.02mm | |
| Max sample size | W300*D260*H100mm | W500*D260*H150mm |
| Size of machine | W860*D755*H1780mm | W1150*D755*H1850mm |
| Weight of machine | 425kg | 550kg |
| Power | AC220V 50Hz 6A or AC110V 60Hz 10A | |
Product Show:

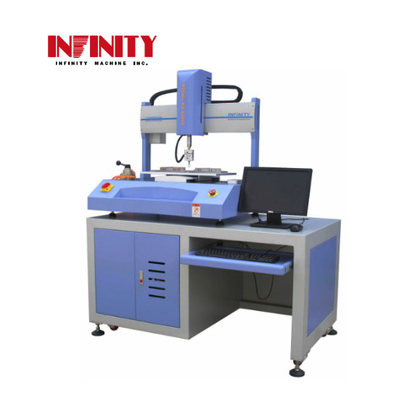

RS-6900A-A

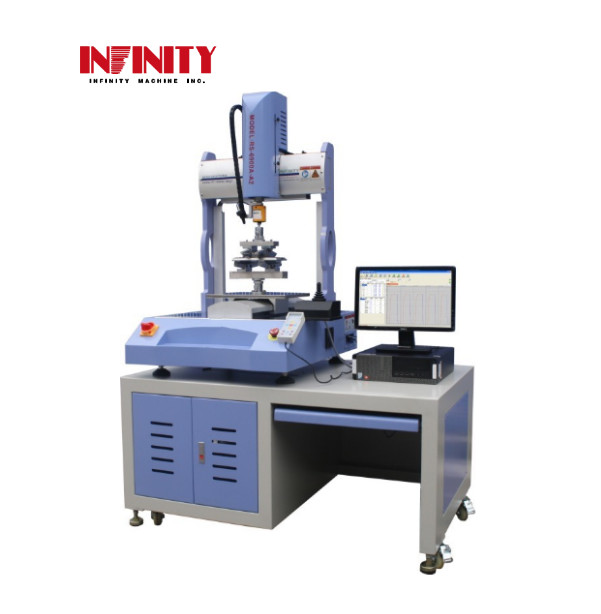

RS-6900A-A2
